APC NetShelter Metered-by-Outlet with Switching Rack PDU Price in Bangladesh (AP8632)

Description

Product Name: APC NetShelter Metered-by-Outlet with Switching Rack PDU Price in Bangladesh (AP8632)

Manufacturer: APC (Schneider Electric)

Product Overview

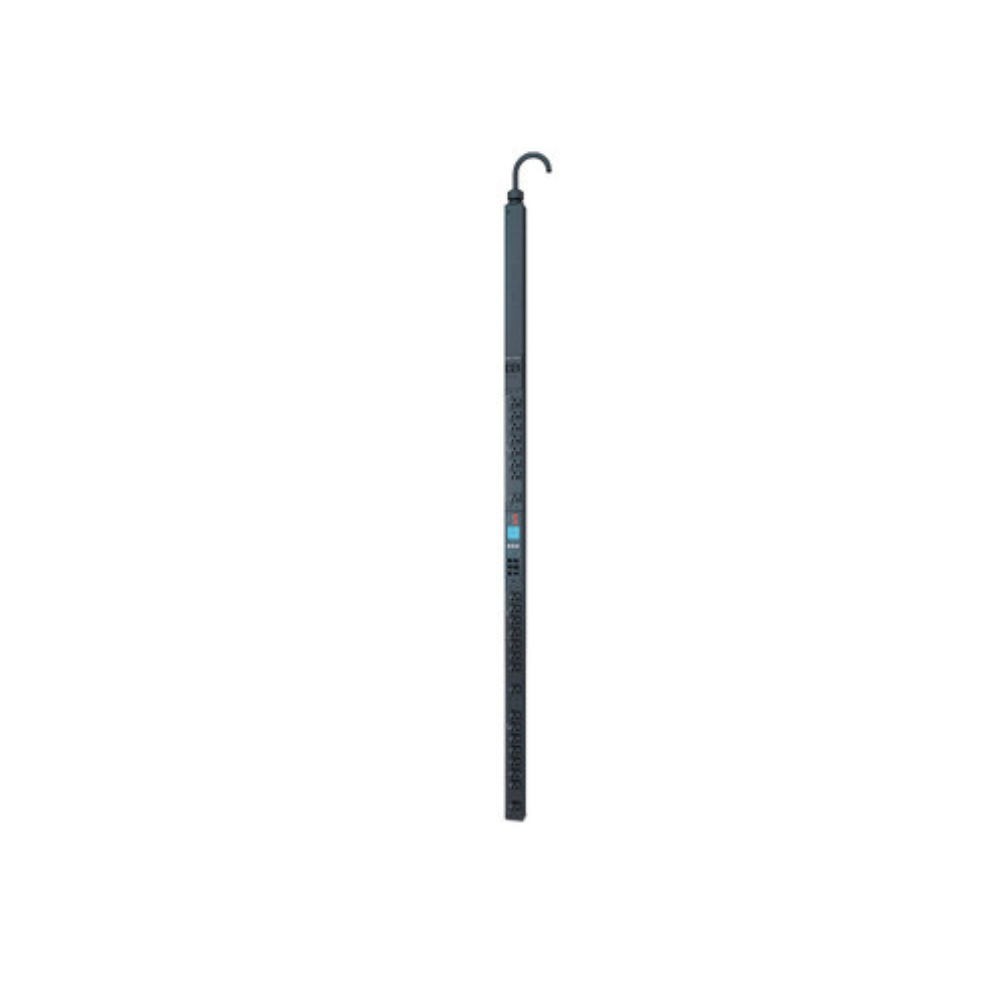

The APC NetShelter Metered-by-Outlet with Switching Rack PDU, 2G, 0U, 30A, 100V to 120V, 24 NEMA 5-20R sockets (Model: AP8632) enables advanced, user-customizable power control and individual outlet power metering. Remote outlet-level controls allow power on/off functionality to reboot locked-up equipment and avoid unauthorized use of individual outlets. Power sequencing delays allow users to define the order in which to power up or down attached equipment to avoid circuit overloads during power recovery and extend the uptime of critical infrastructure.

Key Features and Benefits

• Metered-by-Outlet with Switching: Provides individual outlet power metering and remote on/off switching capabilities.

• Active Power Monitoring: Delivers real-time remote monitoring of connected loads, real power monitoring, and user-defined alarms to warn of potential circuit overloads.

• Power Sequencing Delays: Allows users to configure custom power-up and power-down sequences to prevent circuit overloads during power recovery.

• Sensor Port: Includes an integrated temperature/humidity sensor port for environmental monitoring.

• 0U Vertical Rack Integration: Designed for efficient, tool-less side mounting on standard vertical server racks.

Technical Specifications

• Brand: APC (Schneider Electric)

• Model: AP8632 (NetShelter Switched & Metered-by-Outlet PDU 2G)

• Product Type: Switched Metered Outlet Rack PDU

• Rack Units: 0U Vertical (Side Mount)

• Main Input Voltage: 100V, 120V

• Main Output Voltage: 100V, 120V

• Input Frequency: 50/60 Hz

• Input Current Limits: 30A

• Line Rated Current: 24A

• Permissible Voltage: 100–120V

• Load Capacity: 2880 VA

• Input Connection Type: NEMA L5-30P (with 9.5 ft / 2.9 m cable)

• Output Outlets: 24 × NEMA 5-20R

• Protection Type: Circuit breaker

• Operating Temperature Range: 23°F to 140°F (-5°C to 60°C)

• Storage Temperature Range: -13°F to 149°F (-25°C to 65°C)

• Operating Altitude: 0 to 10,000 ft

• Storage Altitude: 0 to 50,000 ft (0 to 15,240 m)

• Dimensions (H × W × D): 72.008 in × 2.2 in × 2.008 in (1829 mm × 55 mm × 51 mm)

• Net Weight: 17.75 lb (8.05 kg)

• Provided Equipment: Installation Guide, Rack Mounting Brackets, Safety Guide, Serial Configuration Cable

• Product Certifications: cUL Listed, PSE, UL Listed

• Standards: FCC Part 15 Class A, ICES-003, UL 60950-1

Ideal Applications

• High-Density Server Racks and Data Centers

• Enterprise IT Environments Requiring Outlet-Level Power Management

• Remote Facilities Managed via Secure Web, SNMP, or Telnet Interfaces

Conclusion

The APC NetShelter AP8632 Metered-by-Outlet with Switching Rack PDU delivers a 2.88 kW load capacity across 24 NEMA 5-20R outlets in a space-saving 0U vertical form factor, providing enterprise data centers with precise, remote power distribution and monitoring control.
