APC NetShelter Metered Rack PDU Price in Bangladesh (AP8858)

Description

Product Name: APC NetShelter Metered Rack PDU Price in Bangladesh (AP8858)

Manufacturer: APC (Schneider Electric)

Product Overview

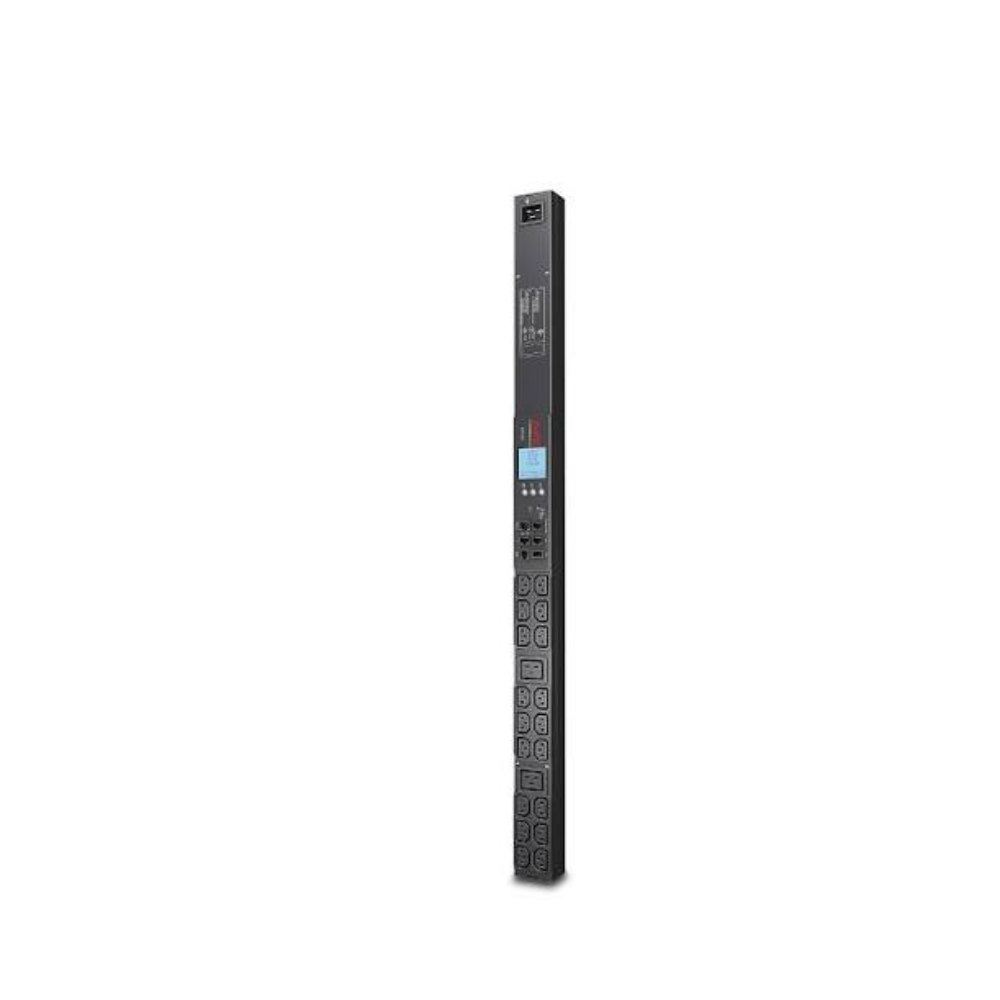

The APC NetShelter Metered Rack PDU, 0U, 1PH, 3.3kW 208V 16A or 3.7kW 230V 16A, 18 C13 and 2 C19 outlets, C20 inlet (Model: AP8858) is an intelligent power distribution unit engineered to provide active power metering, remote monitoring, and load management. Featuring a 3.3kW load capacity at 208V or 3.7kW at 230V, an IEC 60320 C20 input connection inlet, 18 × IEC C13 and 2 × IEC C19 output outlets, this metered PDU supports enterprise server rooms and data centers. It features a compact 0U vertical form factor designed for side mounting inside server racks while offering real-time power monitoring and user-defined alarm thresholds.

Key Features and Benefits

• Active Power Metering: Provides real-time remote and local monitoring of connected loads to enable energy optimization and efficient load balancing.

• Power Utilization Monitoring: Provides power utilization data for volts, amps, real power (kW), and energy (kWh) to support capacity planning and right-sizing.

• Secure Network Management: Supports real-time remote monitoring and management through web, SNMP, or Telnet interfaces.

• User-Defined Alarms: Features customizable alert thresholds to warn of potential circuit overloads before critical IT failures occur.

• 0U Vertical Rack Integration: Designed for efficient side mounting inside standard server cabinets, preserving internal space for IT hardware.

• Locking IEC Receptacles: Reduces the probability of accidentally disconnecting cords and dropping loads in mission-critical rack environments.

Technical Specifications

• Brand: APC (Schneider Electric)

• Model: AP8858 (NetShelter Metered Rack PDU 2G)

• Product Type: Metered Rack PDU

• Rack Units: 0U Vertical (Side Mount)

• Main Input Voltage: 200V, 208V, 230V 1-phase

• Main Output Voltage: 100V, 200V, 208V, 230V

• Input Frequency: 50/60 Hz

• Input Current Limit: 20A

• Line Rated Current: 16A

• Maximum Total Current Draw per Phase: 16A

• Load Capacity: 3.3 kW at 208V / 3.7 kW at 230V

• Input Connection Type: IEC 60320 C20

• Output Outlets: 18 × IEC C13, 2 × IEC C19 outlets

• Operating Temperature Range: -5°C to 60°C (23°F to 140°F)

• Storage Temperature Range: -25°C to 65°C (-13°F to 149°F)

• Dimensions (H × W × D): 902 mm × 56 mm × 44 mm (35.5 in × 2.2 in × 1.7 in)

• Net Weight: 2.93 kg (6.46 lb)

• Standards & Certifications: CSA C22.2 No 60950, IEC 60950, UL 60950-1, METI Denan, VDE

• Compliance: RoHS, REACh

Ideal Applications

• Enterprise Server Rooms and Data Centers Requiring Active Power Metering

• Server Rack Environments Requiring 0U Vertical Power Distribution

• Mission-Critical Facilities Requiring Load Balancing and Right-Sizing

• IT Environments Utilizing Secure Web/SNMP Management Infrastructure

Conclusion

The APC NetShelter Metered Rack PDU AP8858 combines a dual-rated 3.3kW (at 208V) or 3.7kW (at 230V) load capacity 0U vertical form factor with 18 × IEC C13 and 2 × IEC C19 outlets, alongside real-time active metering, serving as a power management solution for modern server rack environments.
