APC NetShelter Metered Rack PDU Price in Bangladesh (AP8870)

Description

Product Name: APC NetShelter Metered Rack PDU Price in Bangladesh (AP8870)

Manufacturer: APC (Schneider Electric)

Product Overview

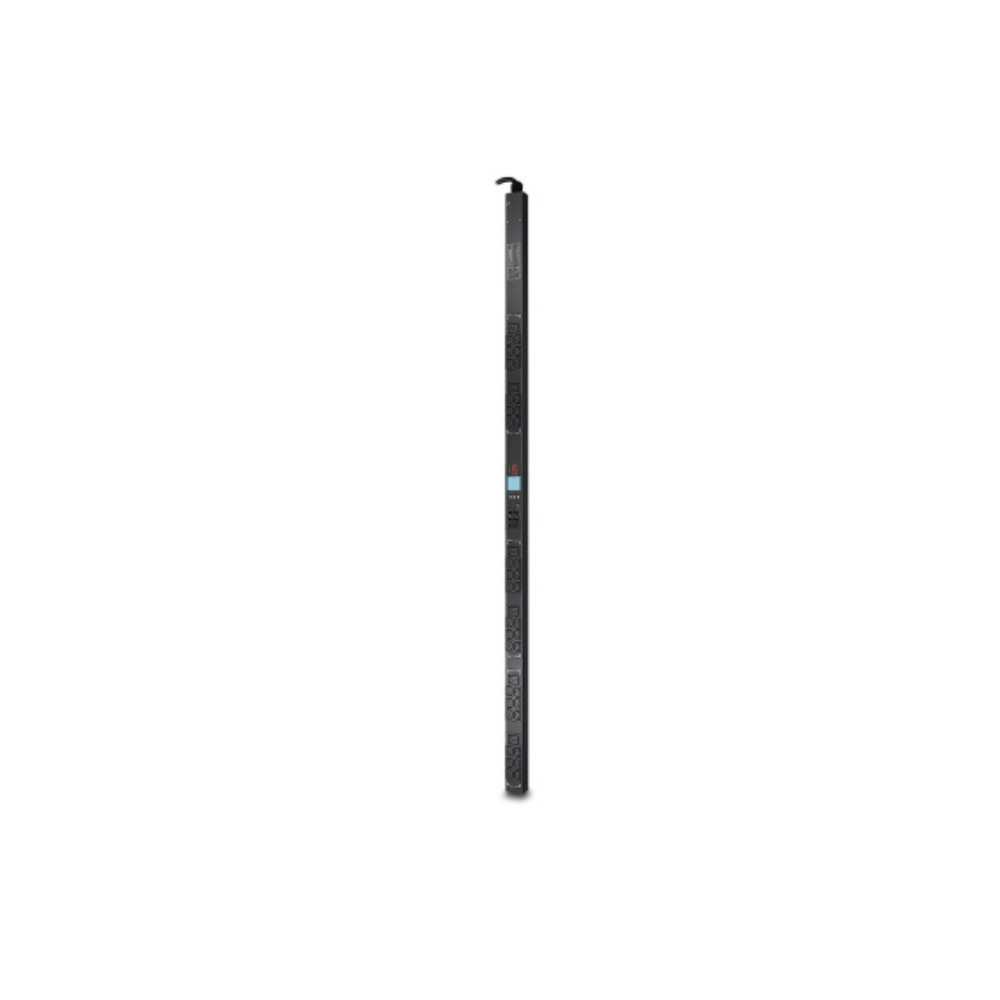

The APC NetShelter Metered Rack PDU, 2G, 0U, 30A, 100-120/200-240V, 16 NEMA 5-20R, 12 C13, and 2 C19 outlets (Model: AP8870) is an advanced intelligent power distribution unit engineered to deliver active metering for energy optimization and circuit protection in high-density IT environments. Featuring a 4,992 VA load capacity, a NEMA L14-30P input connection plug with a 9.5 ft (2.9 m) cord, 16 × NEMA 5-20R outlets, 12 × IEC 60320 C13 output outlets, and 2 × IEC 60320 C19 output outlets, this metered PDU supports enterprise server rooms, network closets, and data centers. It features a space-saving 0U vertical form factor designed for side mounting inside server racks while offering real-time power monitoring and user-defined alarm thresholds.

Key Features and Benefits

• Active Power Metering: Provides real-time remote and local monitoring of connected loads to enable energy optimization and efficient load balancing.

• Accurate Power Metering: Provides ±3% metering accuracy for amps, volts, kW, and kWh to support capacity planning, load balancing, and energy optimization.

• Secure Network Management: Includes a 1-year Secure Network Management Card subscription and supports real-time remote monitoring and management through EcoStruxure IT and Secure NMC3.

• User-Defined Alarms: Features customizable alert thresholds to warn of potential circuit overloads before critical IT failures occur.

• 0U Vertical Rack Integration: Designed for efficient side mounting inside standard server cabinets, preserving internal U space for IT hardware.

• Comprehensive Management Interfaces: Supports secure Web, SNMP, and Telnet access, complemented by APC Centralized Management platforms.

Technical Specifications

• Brand: APC (Schneider Electric)

• Model: AP8870 (NetShelter Metered Rack PDU 2G)

• Product Type: Metered Rack PDU

• Rack Units: 0U Vertical (Side Mount)

• Main Input Voltage: 120V / 208V

• Main Output Voltage: 120V

• Input Frequency: 50/60 Hz

• Input Current Limit: 30A

• Line Rated Current: 24A

• Maximum Total Current Draw per Phase: 24A

• Load Capacity: 4992 VA

• Input Connection Type: NEMA L14-30P (with 9.5 ft / 2.9 m cable)

• Output Outlets: 16 × NEMA 5-20R outlets, 12 × IEC 60320 C13 outlets, 2 × IEC 60320 C19 outlets

• Operating Temperature Range: -5°C to 45°C (23°F to 113°F)

• Storage Temperature Range: -25°C to 65°C (-13°F to 149°F)

• Dimensions (H × W × D): 1791 mm × 55 mm × 44 mm (70.5 in × 2.2 in × 1.7 in)

• Net Weight: 6.38 kg (14.07 lb)

• Certifications & Standards: cUL Listed, UL Listed, FCC Part 15 Class A, ICES-003, UL 60950-1

Ideal Applications

• Enterprise Server Rooms and Data Centers Requiring Active Power Metering

• High-Density IT Racks Requiring 0U Vertical Power Distribution

• Mission-Critical Facilities Requiring Load Balancing and Right-Sizing

• IT Environments Utilizing Secure Web/SNMP Management Infrastructure

Conclusion

The APC NetShelter Metered Rack PDU AP8870 combines a high-capacity 0U vertical form factor with 16 × NEMA 5-20R, 12 × C13, and 2 × C19 outlets, alongside real-time active metering, serving as a robust power management solution for modern high-density IT environments.
