Large Enterprise Environment Monitoring System (24VDC) – E-16D-24V

Description

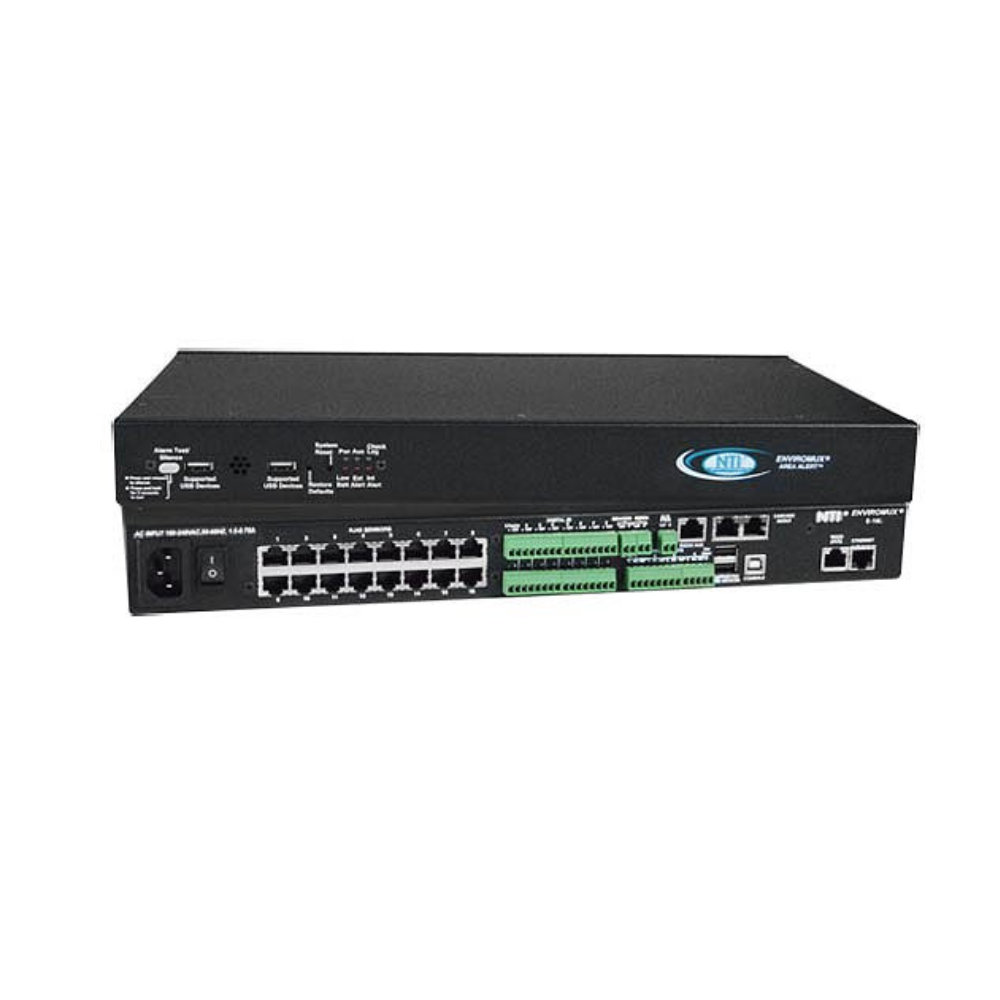

Product Name: Large Enterprise Environment Monitoring System (24VDC) – E-16D-24V

Manufacturer: NTI (Network Technologies Inc)

Product Overview

The ENVIROMUX® E-16D-24V is an enterprise-grade environment monitoring system (EMS). It tracks critical conditions like temperature, humidity, water presence, power, intrusion, and smoke. If a sensor reading passes a defined threshold, the system sends notifications. You will receive alerts via email, LEDs, beacons, sirens, web pages, SNMP, voice calls, or SMS. This unit serves 24VDC power environments effectively. It ensures reliable monitoring for infrastructure where standard AC power is unavailable.

Key Features

• Integrated Sensing: The system includes three internal sensors for temperature, humidity, and power. Additionally, it supports 16 external sensors, 8 digital inputs, and 4 output relays.

• DC Power Reliability: We specifically configured this unit to accept 20 to 32VDC power. This makes it ideal for specialized industrial and telecom power setups.

• Extensive Alerting: The device sends alerts to 17 email addresses. It also generates SNMP traps with unique OIDs and supports SMS alerts through an external USB modem.

• Scalability: You can cascade up to 5 systems via RS485. This allows you to manage all units through a single web interface.

• Advanced Security: The system supports HTTPS, SNMP V3, SSHv2, and TLS v1.2 for secure authentication. Furthermore, it provides an HTTP REST API for data polling in JSON format.

• Comprehensive Connectivity: The unit features Ethernet, USB ports, and serial ports (RS232/AUX). We also included dedicated ports for beacons, sirens, and auxiliary power.

Technical Specifications

• Power Input: 20 to 32VDC (24VDC nominal); power consumption reaches 35 W.

• Digital Inputs/Outputs: Features 8 dry contact input pairs and 4 potential-free relay switch contacts.

• Interfaces: Includes 16 RJ45 sensor ports, 1 Ethernet port (10/100 Base-T), 4 USB Type A ports, a USB Type B console, and two serial ports.

• Internal Sensors: Notably, the system monitors temperature (32 to 104°F) and humidity (20% to 80% RH). It also provides dedicated power monitoring.

• Backup Power: An internal rechargeable battery provides 1 hour of backup.

• Dimensions: 16.19″ x 10.01″ x 1.75″ (without rackmount) or 19″ x 10.01″ x 1.75″ (with rackmount).

• Environmental Ranges: Operating temperatures span 32 to 104°F. Storage temperatures range from -22 to 140°F. Humidity remains 5% to 90% non-condensing.

• Reliability & Compliance: This unit boasts an MTBF of 115,143 hours. It holds CE, RoHS, and TAA compliance with a 2-year warranty.

Conclusion

Dream Technologies BD serves as a trusted supplier of the NTI E-16D-24V in Bangladesh. Our team provides professional consultation and technical support. We help you deploy this robust monitoring solution for your industrial sites or 24VDC power infrastructure. Therefore, you can protect your assets effectively with our expert guidance.
