Description
Product Name: ATFLOR 600mm Bare Finish Steel Raised Access Floor System Price in Bangladesh
Manufacturer: ATFLOR
Product Overview

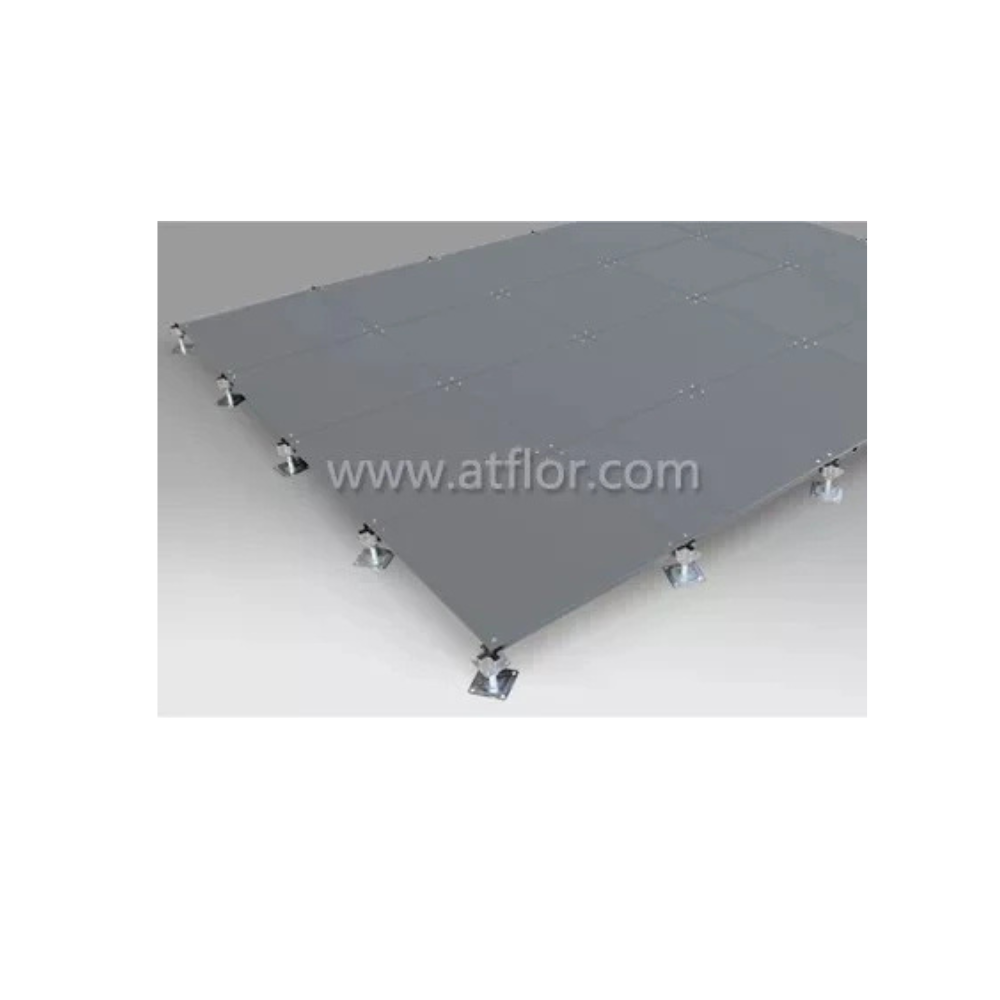

The 600mm Bare Finish Steel Raised Access Floor System offers fast installation, strong load capacity, and an expansive under-floor space for cabling and wiring. Spanning product types FS440 to FS1250, this system utilizes cementitious infill welded steel panels with corner lock holes at all four corners, making it suitable for top tiles such as carpet, PVC, or alternative finishes.
The support structure features a die-casting cross aluminum top with a cross rubber gasket and steel base structure. Standard support specifications are available for finished floor heights (FFH) from below 150 mm up to 1500 mm.
Key Features
-
Structural Durability: Fireproof Class A, moisture-proof, dust-proof, corrosion-resistant, and shockproof construction with high dimensional precision and strong loadability.
-
Secure Corner Locking: Sharp-top screws secure the panel corners to the pedestal assembly.
-
Pedestal & Support Flexibility: Incorporates die-casting cross aluminum tops with cross rubber gaskets and height ranges supporting diverse installation requirements up to 1500 mm.
-
Surface Customization: Compatible with diverse top tiles including carpet, PVC, or other finishing tiles based on project preferences.
Characteristic Specifications
-
Panel Construction: Cementitious infill welded steel shell with corner lock holes in all four corners.
-
Pedestal Construction: Die-casting cross aluminum top with rubber gasket and steel base structure, featuring variable tube diameters based on finished floor height (FFH).
-
Application Scope: Suitable for class 5 office buildings, Security Union Plazas, Futures Trading Buildings, and general cabling or wiring projects, as well as aging building floor renovations.
Technical Specification
| Model | Size (mm) | Fire Performance | Concentrated Load (LB) | Concentrated Load (N) | Concentrated Load (kg) | Impact Load (N) | Ultimate Load (N) | Uniform Load (N/m²) | Rolling Load (N) 10 Times | Rolling Load (N) 10,000 Times |
| FS440 | 600×600×34 | A | $\ge 440$ | $\ge 1,960$ | $\ge 200$ | $\ge 295$ | $\ge 5,880$ | $\ge 9,272$ | 1,958 | 1,566 |
| FS662 | 600×600×34 | A | $\ge 662$ | $\ge 2,950$ | $\ge 301$ | $\ge 445$ | $\ge 8,850$ | $\ge 12,500$ | 2,946 | 2,356 |
| FS800 | 600×600×34 | A | $\ge 800$ | $\ge 3,350$ | $\ge 363$ | $\ge 536$ | $\ge 11,250$ | $\ge 16,100$ | 3,560 | 2,670 |
| FS1000 | 600×600×34 | A | $\ge 1,000$ | $\ge 4,550$ | $\ge 450$ | $\ge 670$ | $\ge 13,350$ | $\ge 23,000$ | 4,450 | 3,560 |
| FS1250 | 600×600×34 | A | $\ge 1,250$ | $\ge 5,560$ | $\ge 567$ | $\ge 780$ | $\ge 16,680$ | $\ge 33,000$ | 5,560 | 4,450 |
Standard Support Specifications
-
FFH < 150 mm: Tube/Rod Spec M18, Adjustment +10 / -20 mm
-
FFH 150 ~ 600 mm: Tube Spec M25, Adjustment +25 / -25 mm
-
FFH 700 ~ 900 mm: Tube Spec M32, Adjustment +25 / -25 mm
-
FFH 1000 ~ 1500 mm: Tube Spec M45, Adjustment +25 / -25 mm
Conclusion
The ATFLOR 600mm Bare Finish Steel Raised Access Floor System delivers strong load performance up to FS1250, Class A fire performance, and flexible corner-lock panel designs for class 5 office buildings and cabling environments. By combining adjustable aluminum-top pedestals with cementitious steel panels, this system provides a reliable foundation for modern commercial flooring requirements.
Contact Us
For pricing inquiries, system design, and stock availability in Bangladesh, get in touch with our team:
-
Phone: +8801737118246
-
Email: [email protected]
