Description

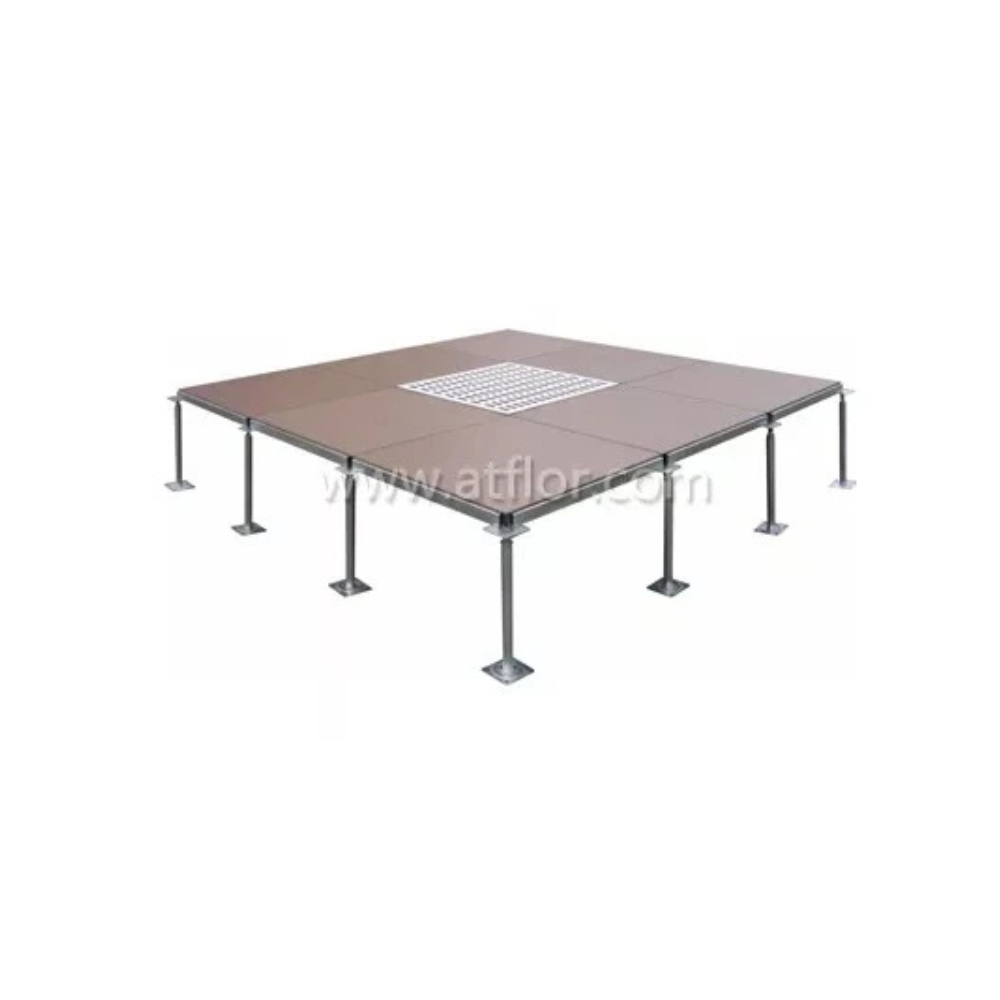

Product Name: HPL Steel Raised Access Floor Price in Bangladesh
Manufacturer: ATFLOR
Product Overview
The HPL Steel Raised Access Floor features antistatic properties, high dimensional precision, fireproof construction, high load capacity, flatness, and shockproof design. This system provides an elegant appearance with options for top finishes like HPL, PVC, ceramic, marble, granite, and wood flooring. It serves as an agreeable solution to ground air conditioning systems, offering recyclability, convenient removal, cost savings, and a long performance life alongside adjustable pedestal heights and stringer connections.
Key features
-
Antistatic & Fireproof: Class A fireproof rating combined with antistatic performance for sensitive technological environments.
-
High Structural Integrity: Delivers high dimensional precision, excellent flatness, shockproof build, and high load capacity.
-
Versatile Finishing: Accommodates various top tiles including HPL, PVC, ceramic, marble, granite, and wood flooring.
-
Convenient Maintenance: Provides easy panel removal, assembly agility, and suitability for ground air conditioning systems.
Technical Data
| Model | Size (mm) | Concentrated Load (LBS/KG) | Impact Load (N) | Ultimate Load (N) | Uniform Load (N/M2) |
| FS662 | 600 x 600 x 35 | $\ge 662$ | $\ge 2950$ | $\ge 301$ | $\ge 445$ |
| FS800 | 600 x 600 x 35 | $\ge 800$ | $\ge 3350$ | $\ge 363$ | $\ge 536$ |
| FS1000 | 600 x 600 x 35 | $\ge 1000$ | $\ge 4550$ | $\ge 450$ | $\ge 670$ |
| FS1250 | 600 x 600 x 35 | $\ge 1250$ | $\ge 5560$ | $\ge 567$ | $\ge 780$ |
| FS1500 | 600 x 600 x 35 | $\ge 1500$ | $\ge 6675$ | $\ge 670$ | $\ge 1005$ |
| FS2000 | 600 x 600 x 35 | $\ge 2000$ | $\ge 8900$ | $\ge 906$ | $\ge 1340$ |
-
Fireproof Class: Class A
(Note: Rolling load values and full verification should be cross-checked directly with the official ATFLOR datasheet before final publication.)
Standard Pedestal and Stringer Specification
| Finished Floor Height (FFH) | Tube Diameter (mm) | Adjustment + (mm) | Adjustment – (mm) |
| $\le 600$ mm | $\phi 25$ | 25 | 25 |
| 700 to 900 mm | $\phi 32$ | 25 | 25 |
| 1000 to 1500 mm | $\phi 45$ | 25 | 25 |
-
Custom Heights: Other heights can be customized upon request.
-
Standard Stringer Specification: 21 x 32 x 570 mm
Ideal Applications
-
Computer rooms and network service rooms
-
Monitoring centers and electronic workshops
-
Clean rooms and dustless chambers
-
5A class offices, security union plazas, and futures trading buildings
-
Locations demanding cabling, wiring, and flooring reform in aging buildings
Conclusion
Ultimately, the HPL Steel Raised Access Floor delivers load-bearing performance, Class A fireproofing, and antistatic control for critical facilities across Bangladesh. By combining steel raised access floor construction, pedestal options for FFH ranges up to 1500 mm with customized heights available, and adaptable top finishes like HPL, this raised floor system ensures structural integrity and cable routing support for professional environments throughout Bangladesh.
Contact Us
For pricing inquiries, system design, and stock availability in Bangladesh, get in touch with our team:
Phone: +8801737118246
Email: [email protected]
