ATFLOR Calcium Sulphate Access Floor System Price in Bangladesh

Description

Product Name: ATFLOR Calcium Sulphate Access Floor System Price in Bangladesh

Manufacturer: ATFLOR

Product Overview

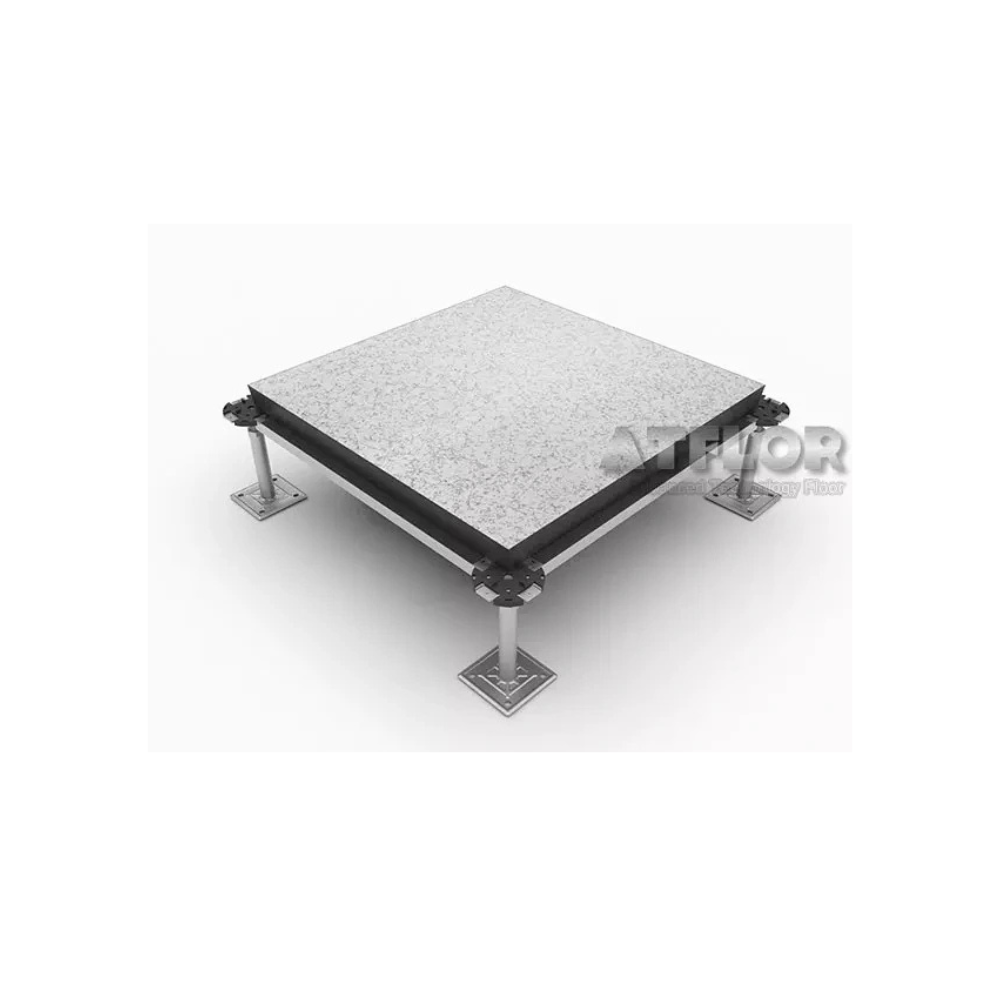

The ATFLOR Calcium Sulphate Access Floor System consists of eco-friendly calcium sulphate boards with PVC/ABS-covered four edges and a galvanized steel bottom plate. Designed for data centers, computer rooms, and industrial applications, these panels feature a Class A flame spread rating and deliver rigidity, durability, and acoustic performance according to CE and CISCA testing methods.

Key Features and Benefits

• Eco-Friendly Construction: Panel Construction: Calcium sulphate board with PVC/ABS-covered four edges and a galvanized steel bottom plate.

• High Load Capacity & Stability: Available in various performance tiers (FS800 to FS1500) supporting heavy rolling loads and computer room equipment.

• Class A Flame Spread Rating: Features a Class A flame spread rating for enhanced fire performance.

• Flexible Understructure: Die-cast steel structure pedestals with plastic gaskets on top, Pedestal Height: 70–1500 mm, utilizing square tube stringers for lateral resistance.

• Surface Finish Options: HPL and static-control vinyl laminates are available for access floor applications.

 Technical Specifications

• Product Type: Calcium Sulphate Access Floor System

• Panel Core: Calcium sulphate board

• Bottom Plate: Galvanized steel sheet

• Panel Edge: PVC/ABS covered four edges

• Panel Weight: 18 kg/pc, bare

• Fire Rating: Class A flame spread rating

• Testing Method: CE & CISCA Recommended Test Procedures for Access Floors

• ULC File Number: R16784

• Pedestal Material: Die-cast steel structure

• Pedestal Top: Plastic gasket

• Pedestal Height: 70–1500 mm

• Stringer: Optional square-tube stringer

• Finish Options: HPL and static-control vinyl laminates

Technical Data & System Performance (CE & CISCA Standards)

• FS800: Concentrated Load $\ge 800$ lb; Impact Load $\ge 3350$ N; Ultimate Load $\ge 11250$ N

• FS1000: Concentrated Load $\ge 1000$ lb; Impact Load $\ge 4550$ N; Ultimate Load $\ge 13350$ N

• FS1250: Concentrated Load $\ge 1250$ lb; Impact Load $\ge 5560$ N; Ultimate Load $\ge 16680$ N

• FS1500: Concentrated Load $\ge 1500$ lb; Impact Load $\ge 6675$ N; Ultimate Load $\ge 19892$ N

Ideal Applications

• Data Centers and Computer Rooms in Bangladesh

• Industrial Applications and Heavy Rolling Load Areas

• Telecommunication Hubs and Control Centers

• Technical Facilities Requiring Raised Flooring Support

Conclusion

Ultimately, the ATFLOR Calcium Sulphate Access Floor System provides acoustic performance, structural rigidity, and fire safety for professional data center installations across Bangladesh.
