Description

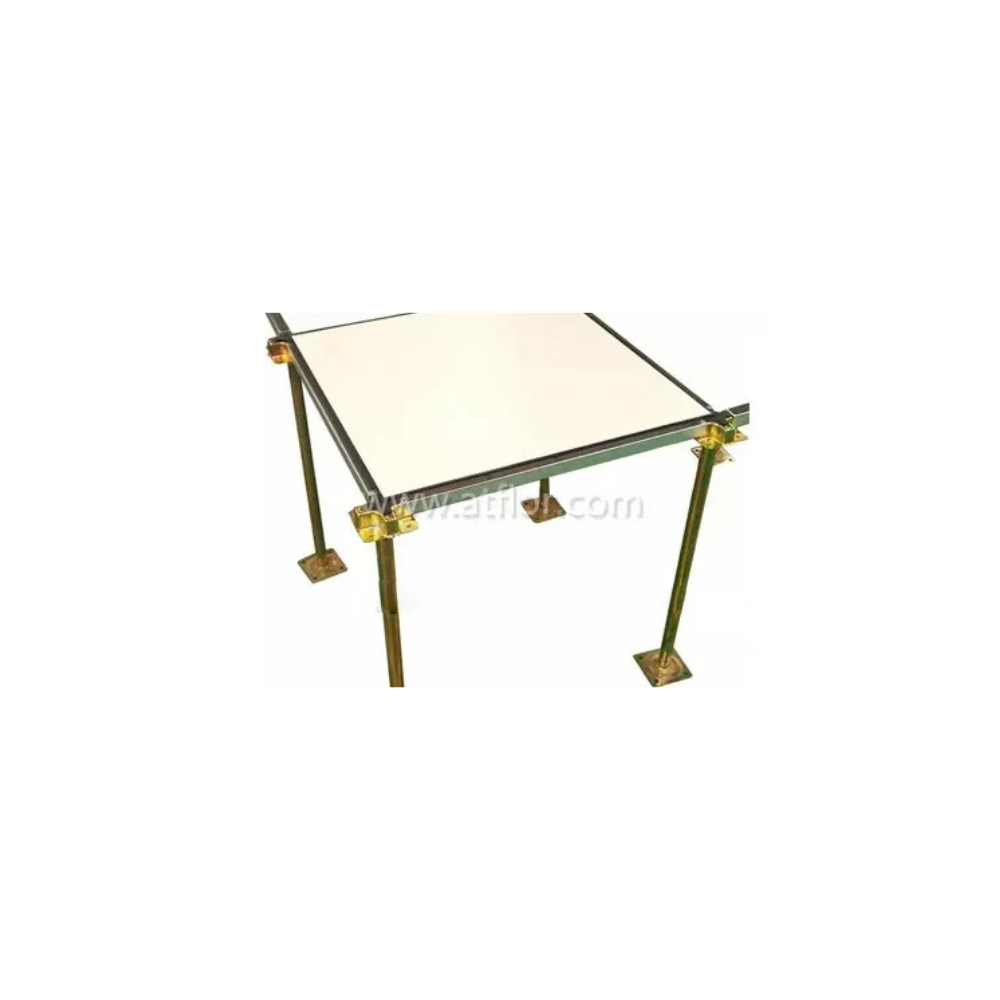

Product Name: ATFLOR Snap-On Stringer Raised Access Floor System Price In BD
Manufacturer: ATFLOR
Product Overview
The ATFLOR Snap-On Stringer Raised Access Floor System features built-in antistatic properties, high dimensional precision, Class A fireproof construction, high load capacity, high surface flatness, and a shockproof design across models ranging from FS662 to FS2000. This flooring system offers an elegant appearance for various top tiles like HPL, PVC, ceramic, marble, granite, and wood floor.
Designed for modern infrastructure, it provides an agreeable solution to ground air conditioning systems while offering recyclability, convenient removal, cost efficiency, long service life, adjustable pedestal height, secure stringer connections, agile assembly, ample underfloor space for cabling, and good interchangeability. Panel size 600*600 and 24’*24’ available.
Key Features
-
Antistatic & Fireproof Protection: Built-in antistatic performance paired with a Class A fireproof classification.
-
High Structural Integrity: Delivers high dimensional precision, high surface flatness, a shockproof build, and high load capacity.
-
Versatile Surface Finishes: Accommodates various top tiles like HPL, PVC, ceramic, marble, granite, and wood floor.
-
Convenient Maintenance: Provides convenient removal, assembly agility, and suitability for ground air conditioning systems.
Characteristic Specifications
-
Panel: Cementitious infill welded die casing steel shell, widely accept many kind of top tiles such as HPL, PVC, ceramic, granite, marble tiles or other tiles as you like.
-
Pedestal: Cross top with steel structure, height could be 80mm–1500mm.
-
Stringer: “U” type steel stringer, with snap on cross top pedestal structure, and a hook on the head easy connect and installation.
Technical Specification
| Model | Size (mm) | Concentrated Load | Impact Load (N) | Ultimate Load (N) | Uniform Load (N/m²) | Rolling Load (N) | Additional Load Values |
| FS662 | 600×600×35 | $\ge 662$ | $\ge 2950$ | $\ge 301$ | $\ge 445$ | $\ge 8850$ | 2946 / 2356 |
| FS822 | 600×600×35 | $\ge 800$ | $\ge 3550$ | $\ge 363$ | $\ge 536$ | $\ge 11250$ | 3560 / 2670 |
| FS1000 | 600×600×35 | $\ge 1000$ | $\ge 4450$ | $\ge 453$ | $\ge 670$ | $\ge 13350$ | 4450 / 3560 |
| FS1250 | 600×600×35 | $\ge 1250$ | $\ge 5560$ | $\ge 567$ | $\ge 780$ | $\ge 16680$ | 5560 / 4450 |
| FS1500 | 600×600×35 | $\ge 1500$ | $\ge 6660$ | $\ge 680$ | $\ge 780$ | $\ge 26690$ | 6670 / 5560 |
| FS2000 | 600×600×35 | $\ge 2000$ | $\ge 8880$ | $\ge 906$ | $\ge 890$ | $\ge 31130$ | 8800 / 8000 |
-
Fireproof Class: Class A
Ideal Applications
-
Computer room
-
Data center
-
Office building or hotel
Conclusion
Ultimately, the ATFLOR Snap-On Stringer Raised Access Floor System delivers robust structural load-bearing performance, Class A fire safety, and dependable antistatic control across diverse professional settings. By uniting cementitious-infilled steel panels with secure snap-on stringer frameworks and adjustable pedestal heights, this system establishes a reliable, long-lasting foundation for modern environments.
Contact Us
For pricing inquiries, system design, and stock availability in Bangladesh, get in touch with our team:
-
Phone: +8801737118246
-
Email: [email protected]
