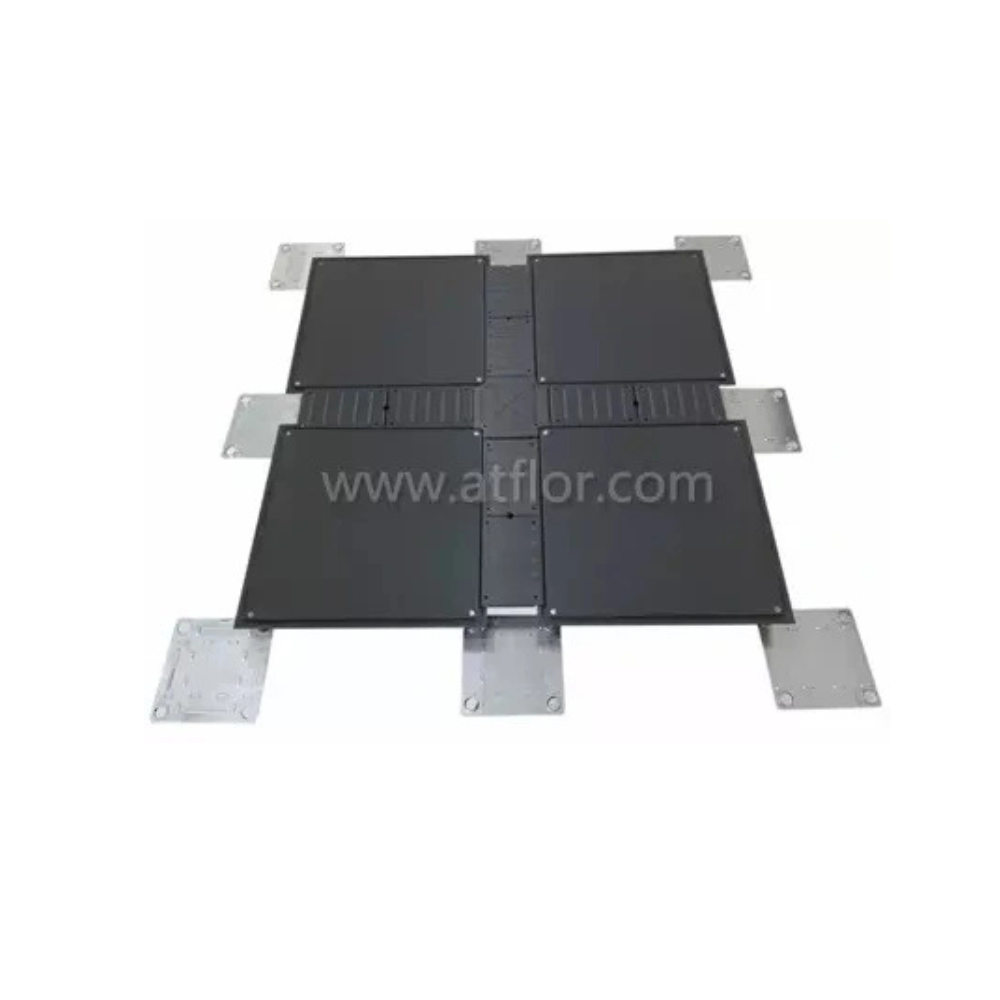

Product Name: ATFLOR Excellent Lowest Trunking Steel Raised Floor System Price in Bangladesh
Manufacturer: ATFLOR
Product Overview
The ATFLOR Excellent Lowest Trunking Steel Raised Floor System is engineered to save room space with an ultra-low profile height ranging from 35 mm to 150 mm, with an optimal height of 50 mm. Designed for efficient cabling and wiring, the system allows cables and wires to be placed neatly into the trunk without cutting the floor panel.
The product series spans from FS440 to FS1250 and utilizes 500 × 500 × 25 mm cementitious infill welded steel panels with corner lock holes in all four corners. The panels can accommodate carpet, PVC tiles, or other suitable floor finishes.
Key Features
-
Ultra-Low Profile Design: Provides an range of 35 mm to 150 mm, with 50 mm specified as the optimal height, helping conserve room space.
-
Efficient Cable Management: Allows wires and cables to be placed into the trunk neatly without cutting the floor panel.
-
Flexible Surface Finishes: Panels feature corner lock holes in four corners and can accommodate carpet, PVC tiles, or other suitable finishes.
-
Modular Components: Main components include panels, trunk cover plates, corner cover plates, and corner bottom plates.
Characteristic Specifications
-
Panel Construction: Cementitious infill steel welded steel shell with corner lock holes in all four corners. Size: 500 × 500 × 25 mm.
-
Pedestal Construction: Uses a single steel screw pedestal for super-low floor heights from 35 mm to 150 mm, featuring a 12 mm diameter and ±10 mm adjustment.
-
Accessory Dimensions: Cover plate (edge): 205 × 135 × 8 mm; Bottom plate (center): 190 × 190 × 8 mm; Bottom plate (middle): 200 × 200 mm.
-
Application Scope: Suitable for class 5 office buildings, Security Union Plazas, Futures Trading Buildings, high-cabling environments, and aging building floor renovations.
Technical Specification
| Model | Size (mm) | Fire Performance | Concentrated Load (LB) | Concentrated Load (N) | Concentrated Load (kg) | Impact Load (N) | Ultimate Load (N) | Uniform Load (N/m²) | Rolling Load (N) 10 Times | Rolling Load (N) 10,000 Times |
| FS440 | 500×500×25 | A | $\ge 440$ | $\ge 1,960$ | $\ge 200$ | $\ge 295$ | $\ge 5,880$ | $\ge 9,272$ | 1,958 | 1,566 |
| FS662 | 500×500×25 | A | $\ge 662$ | $\ge 2,950$ | $\ge 301$ | $\ge 445$ | $\ge 8,850$ | $\ge 12,500$ | 2,946 | 2,356 |
| FS800 | 500×500×25 | A | $\ge 800$ | $\ge 3,350$ | $\ge 363$ | $\ge 536$ | $\ge 11,250$ | $\ge 16,100$ | 3,560 | 2,670 |
| FS1000 | 500×500×25 | A | $\ge 1,000$ | $\ge 4,550$ | $\ge 450$ | $\ge 670$ | $\ge 13,350$ | $\ge 23,000$ | 4,450 | 3,560 |
| FS1250 | 500×500×25 | A | $\ge 1,250$ | $\ge 5,560$ | $\ge 567$ | $\ge 780$ | $\ge 16,680$ | $\ge 33,000$ | 5,560 | 4,450 |
Standard Specifications & Accessories
-
Standard Pedestal Specification: $\phi 12$ tube with $\pm 10$ mm adjustment range.
-
Cover Plate (Edge): 205 × 135 × 8 mm
-
Bottom Plate (Center): 190 × 190 × 8 mm
-
Bottom Plate (Middle): 200 × 200 mm
-
Main Components: Panel, trunk cover plate, corner cover plate, corner bottom plate
-
Optional Accessories: Electrical outlet, bottom trunk, outlet
Conclusion
The ATFLOR Excellent Lowest Trunking Steel Raised Floor System combines an ultra-low profile height of 35 mm to 150 mm with organized trunking management for class 5 office buildings. By utilizing cementitious steel panels and single steel screw pedestals, it provides a structured and efficient flooring foundation for modern commercial cabling needs.
