Product Name: ATFLOR Linoleum Calcium Sulphate Raised Access Floor Price in Bangladesh
Manufacturer: ATFLOR
Product Overview

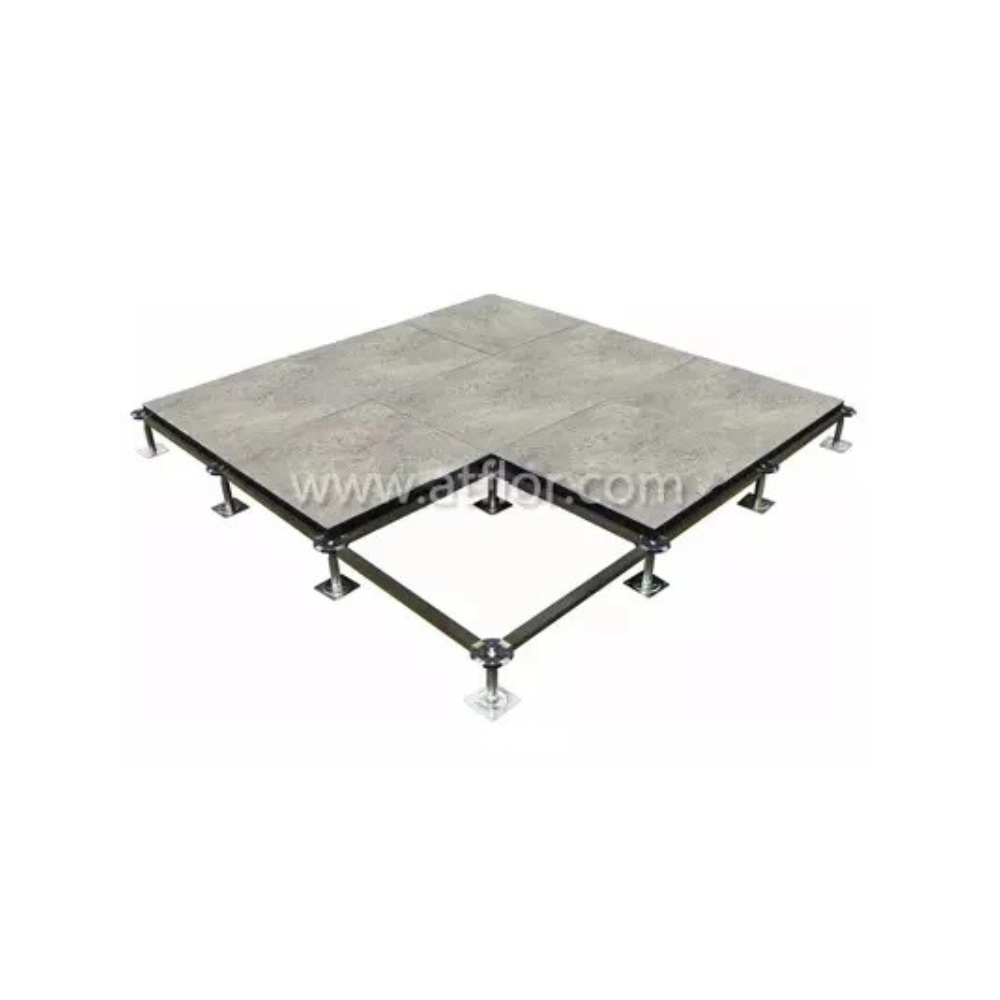

The ATFLOR Linoleum Calcium Sulphate Raised Access Floor system is built using an environment-friendly calcium sulphate board with linoleum-covered edges and a linoleum top finish. Delivering antistatic properties, fire resistance, soundproofing, dustproofing, and electromagnetic shielding, this system maintains stable performance under varying humidity and temperature conditions.
The product range is specified for the FS800 to FS1500 product types, utilizing panels with thickness available from 25 mm to 38 mm and a standard size of 600 × 600 mm.
Key Features
-
Protective & Environmental Properties: Prevents static effectively while offering fireproof, antiskid, soundproof, dustproof, and electromagnetic shielding benefits with environment-friendly composition.
-
Linoleum Surface: Features linoleum-covered edges and a linoleum top finish, ensuring strong wearability and dependable resilience.
-
Stable Environmental Performance: Designed to maintain stable performance under varying humidity and temperature conditions.
-
Robust Support Framework: Integrates die-casting steel structure pedestals with plastic top gaskets and optional square tube stringers for stable system connectivity.
-
Height Adjustability & Cabling: Accommodates finished floor heights (FFH) ranging from 70 mm to 1500 mm with flexible assembly and outlet mating for wire management.
Characteristic Specifications
-
Panel Construction: Calcium sulphate board with linoleum-covered edges, steel or aluminum bottom plates, and linoleum top finish. Panel thickness varies from 25 mm to 38 mm.
-
Pedestal & Stringer Construction: Die-casting steel structure pedestal with plastic gasket on top, featuring heights from 70 mm to 1500 mm, with or without square tube stringers (standard size: 535 × 20 × 30 mm).
-
Application Scope: Ideal for banks, military facilities, high-grade computer rooms, top-grade offices, and environments requiring high loading capacity.
Technical Specification
| Model | Size (mm) | Concentrated Load (LB) | Concentrated Load (N) | Concentrated Load (kg) | Impact Load (N) | Ultimate Load (N) | Uniform Load (N/m²) | Rolling Load (N) 10 Times | Rolling Load (N) 10,000 Times |
| FS800 | 600×600 | $\ge 800$ | $\ge 3,350$ | $\ge 363$ | $\ge 536$ | $\ge 11,250$ | $\ge 16,100$ | 3,560 | 2,670 |
| FS1000 | 600×600 | $\ge 1,000$ | $\ge 4,550$ | $\ge 450$ | $\ge 670$ | $\ge 13,350$ | $\ge 23,000$ | 4,450 | 3,560 |
| FS1250 | 600×600 | $\ge 1,250$ | $\ge 5,560$ | $\ge 567$ | $\ge 780$ | $\ge 16,680$ | $\ge 33,000$ | 5,560 | 4,450 |
| FS1500 | 600×600 | $\ge 1,500$ | $\ge 6,675$ | $\ge 670$ | $\ge 1,005$ | $\ge 19,892$ | $\ge 34,500$ | 6,675 | 5,340 |
Standard Pedestal and Stringer Specifications
-
Finished Floor Height (FFH) $\le$ 600 mm: Tube Diameter 25 mm, Adjustment +25 / -25 mm
-
FFH 700 ~ 900 mm: Tube Diameter 32 mm, Adjustment +25 / -25 mm
-
FFH 1000 ~ 1500 mm: Tube Diameter 42 mm, Adjustment +25 / -25 mm
-
Note: Other heights can be customized.
-
Standard Stringer Size: 535 × 20 × 30 mm
Conclusion
The ATFLOR Linoleum Calcium Sulphate Raised Access Floor combines high load performance from FS800 to FS1500 with durable linoleum finishing and stable environmental resilience. By providing customizable height structures and robust steel pedestals, it delivers a secure flooring solution for banks, military facilities, and high-grade executive offices.
Contact Us
For pricing inquiries, system design, and stock availability in Bangladesh, get in touch with our team:
-
Phone: +8801737118246
-
Email: [email protected]
