ATFLOR Woodcore Access Floor System Price in Bangladesh

Description

Product Name: ATFLOR Woodcore Access Floor System Price in Bangladesh

Manufacturer: ATFLOR

Product Overview

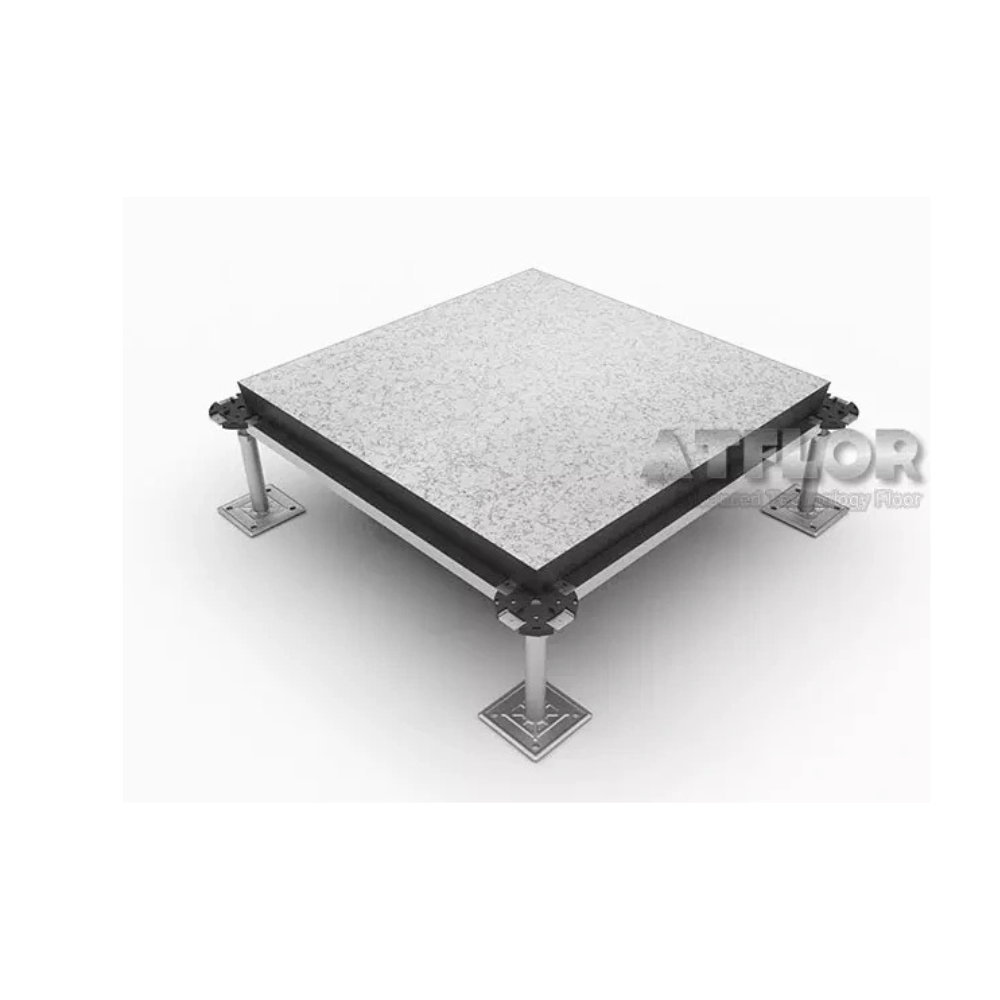

The ATFLOR Woodcore Access Floor System consists of a high-density composite wood core board. Designed for computer rooms, data centers, and industrial applications, these panels deliver rigidity and acoustic performance according to CE and CISCA testing methods.

Key Features and Benefits

• High-Density Composite Core: Available in 30 mm (9.2 kg/pc) or 38 mm (11.5 kg/pc) thickness configurations.

• Protected Construction: Features an antistatic top finish tile, antistatic PVC trim on four sides, and a galvanized steel bottom sheet.

• Fire Performance Rating: Class B flame spread rating.

• Bolted Stringer Understructure: Designed with stringers providing lateral resistance to heavy rolling loads and support for finished floor heights over 1500 mm.

• Surface Finish Options: HPL and static-control vinyl finishes are available for data center access floor applications. The source lists Maite, Meiah, and HJ as laminate manufacturers/options.

Technical Specifications

• Product Type: Woodcore Access Floor System

• Panel Core: High-density composite wood core board (30 mm or 38 mm thick)

• Bottom Sheet: Galvanized steel sheet

• Panel Edge: Antistatic PVC trim on four sides

• Panel Weight: 9.2 kg/pc (30 mm core) / 11.5 kg/pc (38 mm core)

• Fire Rating: Class B flame spread rating

• Testing Method: CE & CISCA Recommended Test Procedures for Access Floors

• Understructure: Bolted stringer system with available seismic resistant pedestals

• Finish Options: HPL and static-control vinyl laminates

Technical Data & System Performance (CE & CISCA Standards)

• FS800: Concentrated Load $\ge 800$ lb; Impact Load $\ge 3350$ N; Ultimate Load $\ge 11250$ N

• FS1000: Concentrated Load $\ge 1000$ lb; Impact Load $\ge 4550$ N; Ultimate Load $\ge 13350$ N

• FS1250: Concentrated Load $\ge 1250$ lb; Impact Load $\ge 5560$ N; Ultimate Load $\ge 16680$ N

Ideal Applications

• Data Centers and Computer Rooms in Bangladesh

• Industrial Applications and Heavy Rolling Load Areas

• Telecommunication Hubs and Control Centers

• Technical Facilities Requiring Raised Flooring Support

Conclusion

Ultimately, the ATFLOR Woodcore Access Floor System provides structural stability, durability, and acoustic performance for computer rooms, data centers, and industrial applications.
