Description

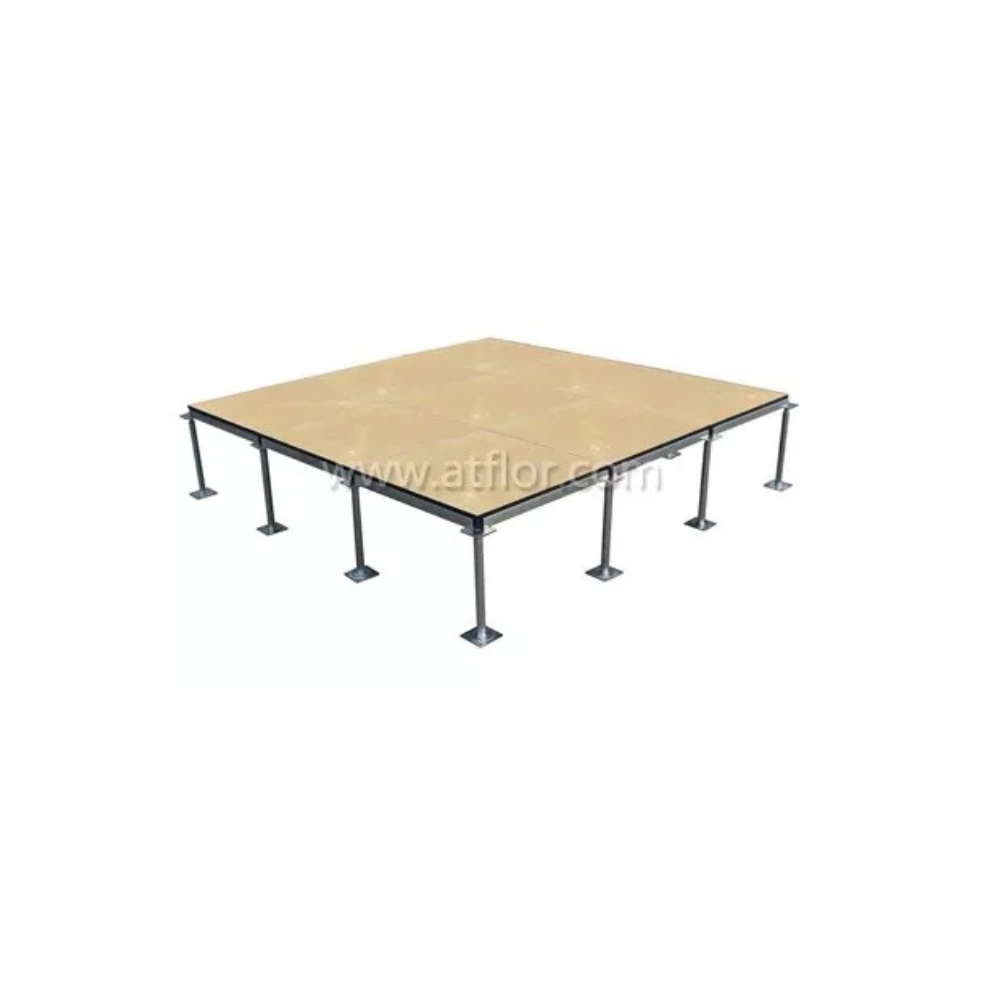

Product Name: Ceramic Coated Steel Raised Access Floor Price in Bangladesh
Manufacturer: ATFLOR
Product Overview
The Ceramic Coated Steel Raised Access Floor features antistatic properties, high dimensional precision, fireproof construction, high load capacity, flatness, and shockproof design across product types FS800 to FS2000. This system provides an elegant appearance with options for top finishes like HPL, PVC, ceramic, marble, granite, and wood flooring. It provides a suitable solution for underfloor air-conditioning systems, offering recyclability, convenient removal, cost savings, long performance life, adjustable pedestal heights, stringer connections, assembly agility, ample space for wiring, and good interchangeability. Available panel sizes include 600 × 600 mm and 24 × 24 inches.
Key Features
-
Antistatic & Fireproof: Features antistatic performance and a Class A fireproof classification.
-
High Structural Integrity: Delivers high dimensional precision, excellent flatness, shockproof build, and high load capacity.
-
Versatile Finishing: Accommodates various top tiles including HPL, PVC, ceramic, marble, granite, and wood flooring.
-
Convenient Maintenance: Provides easy panel removal, assembly agility, and suitability for underfloor air-conditioning systems.
Technical Data
| Model | Size (mm) | Concentrated Load | Impact Load (N) | Ultimate Load (N) | Uniform Load (N/M2) | Rolling Load (10 Times) | Rolling Load (10,000 Times) |
| FS800 | 600 x 600 x 35 | $\ge 800$ | $\ge 3350$ | $\ge 363$ | $\ge 536$ | $\ge 3560$ N | $\ge 2670$ N |
| FS1000 | 600 x 600 x 35 | $\ge 1000$ | $\ge 4550$ | $\ge 450$ | $\ge 670$ | $\ge 4450$ N | $\ge 3560$ N |
| FS1250 | 600 x 600 x 35 | $\ge 1250$ | $\ge 5560$ | $\ge 567$ | $\ge 780$ | $\ge 5560$ N | $\ge 4450$ N |
| FS1500 | 600 x 600 x 35 | $\ge 1500$ | $\ge 6675$ | $\ge 670$ | $\ge 1005$ | $\ge 6675$ N | $\ge 5340$ N |
| FS2000 | 600 x 600 x 35 | $\ge 2000$ | $\ge 8900$ | $\ge 906$ | $\ge 1340$ | $\ge 8900$ N | $\ge 7120$ N |
-
Fireproof Class: Class A
Standard Pedestal and Stringer Specification
| Finished Floor Height (FFH) | Tube Diameter (mm) | Adjustment + (mm) | Adjustment – (mm) |
| $\le 600$ mm | $\phi 25$ | 25 | 25 |
| 700 to 900 mm | $\phi 32$ | 25 | 25 |
| 1000 to 1500 mm | $\phi 45$ | 25 | 25 |
-
Custom Heights: Other heights can be customized upon request.
-
Standard Stringer Specification: 21 x 32 x 570 mm
Ideal Applications
-
Computer rooms and network service rooms
-
Monitoring centers and electronic workshops
-
Clean rooms and dustless chambers
-
5A class offices, security union plazas, and futures trading buildings
-
Locations demanding cabling, wiring, and flooring reform in aging buildings
Conclusion
Ultimately, the Ceramic Coated Steel Raised Access Floor delivers load-bearing performance, Class A fireproofing, and antistatic control for computer rooms, network service rooms, monitoring centers, electronic workshops, clean rooms, and other listed applications across Bangladesh. By combining steel raised access floor construction, pedestal options for FFH ranges up to 1500 mm with customized heights available, this raised floor system provides a durable solution for professional environments throughout Bangladesh.
