Bosch CCS-CU CCS 900 Ultro Control Unit Price in Bangladesh

Description

Product Name: Bosch CCS-CU CCS 900 Ultro Control Unit Price in Bangladesh

Manufacturer: Bosch

Product Overview

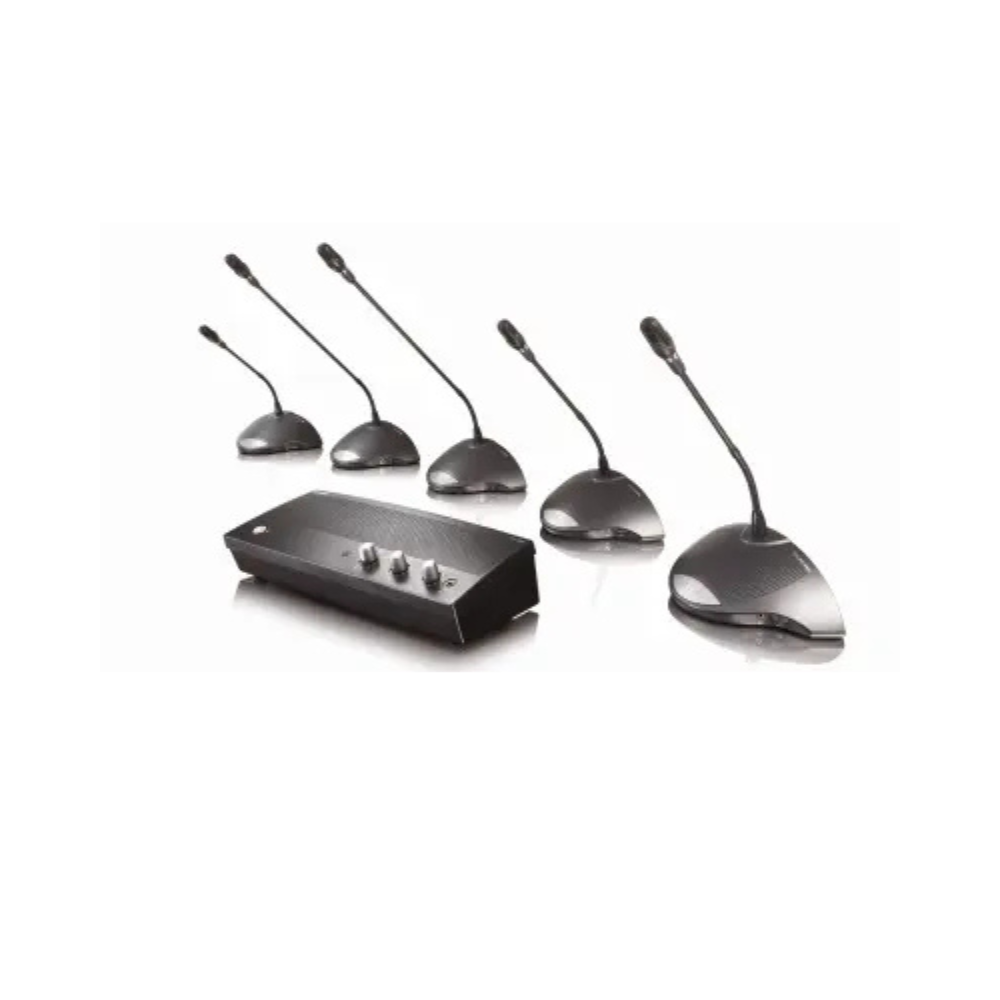

The Bosch CCS-CU CCS 900 Ultro Control Unit is the central control unit of the CCS 900 Ultro Discussion System. It supplies power to all delegate and chairman units while managing system microphones and providing essential audio input and output connections. Designed for small-to-middle-sized conferences, it delivers operator-free meeting control and high-performance audio routing.

Key Features and Benefits

• Central System Control: Supports up to 50 contribution units connected directly to the Control Unit and can provide control for up to 150 contribution units.

• Operator-Free Operation: Features an intuitive top-panel rotary control to choose from distinct microphone operating modes without requiring a dedicated system operator.

• Built-In Monitor Loudspeaker: Includes an integrated monitor loudspeaker to clearly listen to ongoing proceedings or played-back audio.

• Flexible Mounting Options: Engineered for versatile installation formats, supporting portable or fixed tabletop mounting, 19-inch rack installations, and flush mounting.

• Robust Connectivity: Accommodates extensive audio inputs and outputs to integrate easily with external public address systems, recorders, and teleconferencing equipment.

Technical Specifications

• Product Name: Bosch CCS-CU CCS 900 Ultro Control Unit

• Order Number / Model: CCS-CU

• Mains Voltage: 100 to 240 VAC ± 10%

• Current Consumption: Maximum 0.9 A (100 VAC) to 0.3 A (240 VAC)

• DC Supply to Contribution Units: 24 V ± 1 V (current limited)

• Loudspeaker Volume Control: Mute (50 dB att.) + 10 steps of 1.9 dB

• Total Harmonic Distortion: < 0.5% at nominal input (85 dB SPL); < 0.5% at max input (110 dB SPL)

• Dimensions including feet (H x W x D): 84 x 361 x 143 mm (3.4 x 14.2 x 5.6 in)

• Height of Feet: 5.5 mm (0.22 in)

• Mounting Type: Tabletop (portable or fixed), 19-inch rack, and flush mounting

• Weight: 1.5 kg (3.3 lb)

• Material (Top / Base): Polymer top / Painted metal base

• Color: Charcoal (PH10736) top / Black (PH80007) base

Ideal Applications

• Corporate Boardrooms and Meeting Rooms

• Municipal Council Chambers and Town Halls

• Institutional Conference Centers

• Government Auditoriums and Administrative Buildings

Conclusion

Ultimately, the Bosch CCS-CU CCS 900 Ultro Control Unit serves as the reliable power and management backbone for professional conference setups. Therefore, combined with flexible mounting capabilities and operator-free controls, it delivers a robust platform for seamless meeting administration.
