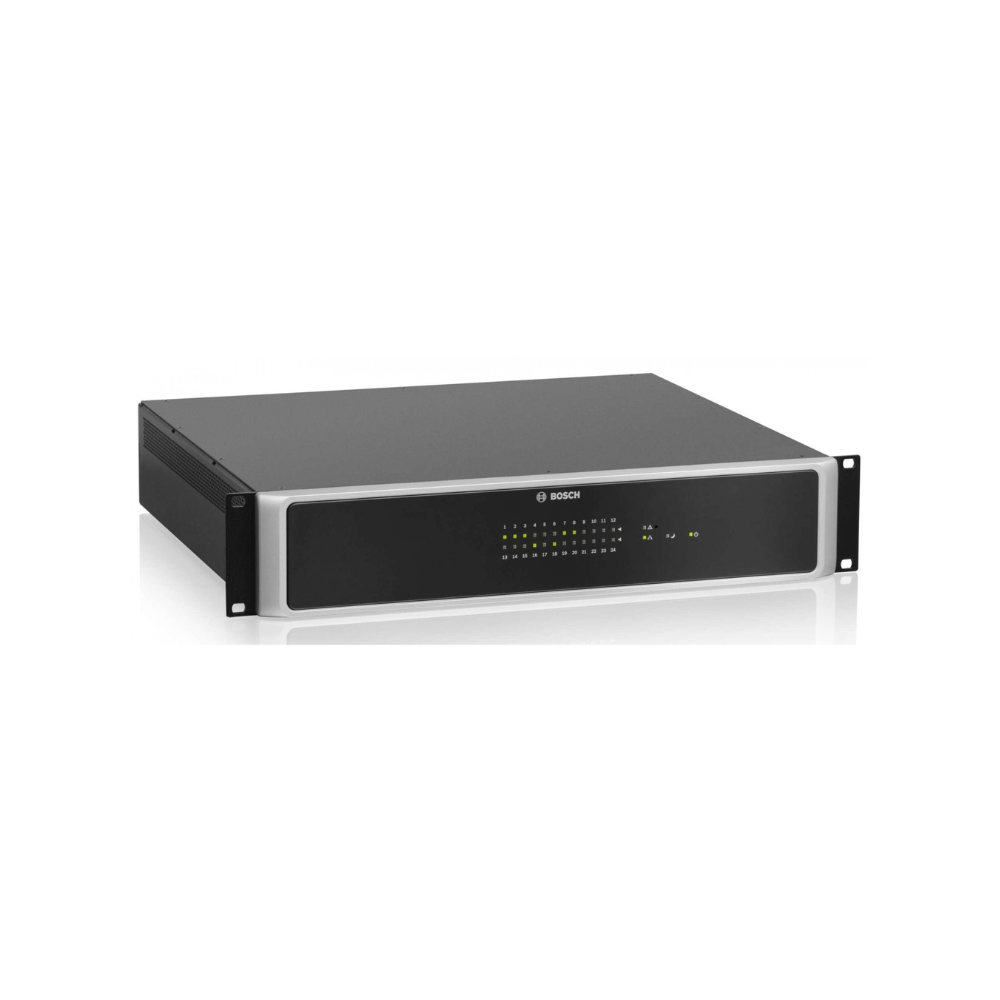

Bosch PVA-2P500 PAVIRO 2x500W Class D Power Amplifier Price in Bangladesh

Description

Product Name: Bosch PVA-2P500 PAVIRO 2x500W Class D Power Amplifier Price in Bangladesh

Manufacturer: Bosch

Product Overview

The Bosch PVA-2P500 is a high-performance 2x500W class-D power amplifier designed specifically for emergency evacuation and public address systems. Housed in a compact 2RU high 19-inch case, it supports standalone or rack-mounted configurations. It operates on standard AC mains power (115-240 VAC) or a 24 VDC emergency battery supply with automated switching. Furthermore, all control and monitoring functions are managed via the CAN bus, while system configuration is handled using IRIS-Net. Additionally, it features extensive internal monitoring, temperature-controlled cooling fans, and floating 100V or 70V power outputs.

Key Features and Benefits

• High-Efficiency Class-D Amplification: Delivers 2 x 500 W rated output power with floating 100 V or 70 V power outputs and transformer-isolated stages.

• Dual Power Operation: Runs on standard AC mains (115-240 VAC) or a 24 VDC (21-32 VDC) emergency battery backup.

• Comprehensive Monitoring: Features processor-controlled supervision, including line monitoring, ground fault detection, pilot tone tracking via a PVA-4CR12 controller or PVA-4R24 router, and watchdog circuit protection.

• CAN Bus Integration: Communicates and integrates seamlessly into the PAVIRO system network via dual RJ-45 CAN bus ports.

• Advanced Protection & Cooling: Incorporates audio input level limiters, RMS output power limiters, short-circuit protection, thermal monitoring, and front-to-rear temperature-controlled cooling fans.

Technical Specifications

• Product Name: Bosch PVA-2P500 PAVIRO 2x500W Class D Power Amplifier

• Model / Part Number: PVA-2P500

• Mains Power Supply: 115–240 VAC ±10%, 50/60 Hz | Power Consumption (230 VAC): 700 W (Maximum), 21 W (Idle), 1.9 W (Standby)

• Battery Power Supply: 21–32 VDC | Power Consumption (24 VDC): 735 W (Maximum), 16 W (Idle), 1.5 W (Standby)

• Performance: Rated Output Power: 2 x 500 W (1 kHz, THD <= 1%) | Frequency Response: 50 Hz to 25 kHz (-3 dB) | Signal-to-Noise Ratio: >104 dB (A-weighted) | Distortion: THD <= 1%

• Audio Inputs: LINE IN 1–4 via RJ-45 connectors | LINE IN 1 or 2 via balanced Euroblock connectors

• Loudspeaker Outputs: Floating 70 V or 100 V power output sockets

• Networking & Control: 2 x RJ-45 CAN bus ports (10 to 500 kbit/s) with a CAN address selector switch

• Physical Dimensions: 88 mm x 483 mm x 375 mm (2RU high, 19-inch rack mountable)

• Mounting & Color: Standalone or 19-inch rack | Color: Black with silver

• Weight: 16.5 kg (36.4 lbs) net

• Operating Temperature: -5 °C to +45 °C (+23 °F to +113 °F)

Ideal Applications

• Emergency Evacuation Systems

• Public Address Systems

• Voice Alarm Systems

• Airports and Transportation Hubs

• Commercial Buildings

• Industrial Facilities

Conclusion

The Bosch PVA-2P500 PAVIRO 2x500W Class D Power Amplifier delivers enterprise-grade audio reinforcement and life-safety compliance. Because it combines robust class-D amplification with advanced CAN bus supervision and IRIS-Net integration, it ensures mission-critical reliability for professional evacuation networks.
