Bosch DCNM-WD Wireless Video Conference Chairman Unit Price in Bangladesh

Description

Product Name: Bosch DCNM-WD Wireless Video Conference Chairman Unit Price in Bangladesh

Manufacturer: Bosch

Product Overview

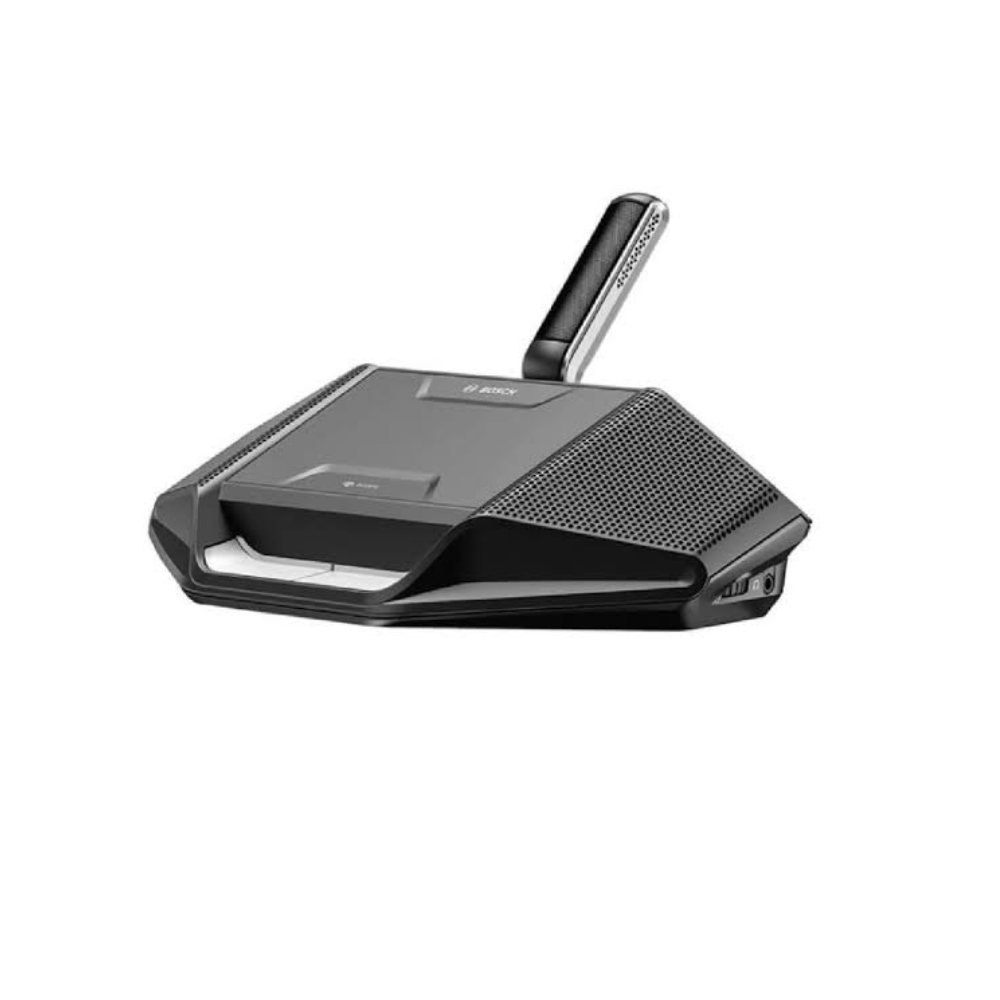

The Bosch DCNM-WD Wireless Discussion Device is a core component of the DICENTIS Wireless Conference System. It enables participants to speak, register a request-to-speak, and listen to proceedings during a meeting. Configurable via the web browser interface of the DCNM-WAP as a single-use, dual-use, or chairperson wireless device, it features a removable lithium-ion battery pack and software-expandable functionality without hardware modifications.

Key Features and Benefits

• Configurable Roles: Easily configured as a participant, dual-use, or chairperson wireless device using the web browser interface.

• Removable Battery Pack: Utilizes the DCNM-WLIION rechargeable lithium-ion battery pack that can be removed and replaced in seconds for flexible recharge scheduling.

• Crystal-Clear Audio: Built-in loudspeaker and microphone support simultaneous use for a face-to-face meeting experience, backed by a built-in feedback suppressor.

• Secure Wireless Connectivity: Uses WPA2 encryption over standard IEEE 802.11n WiFi to prevent eavesdropping and unauthorized access.

• Zero Interference: Operates in license-free 2.4 GHz and 5 GHz bands with seamless automatic frequency channel switching and packet loss concealment.

• Dual Headphone Connections: Accommodates two headphone connections and rotary volume controls on both the left and right-hand sides for high background noise environments.

• Clear LED Indicators: Top-side indicators show microphone active (red), request-to-speak accepted (green), possible-to-speak (white), and chairperson priority (white).

Technical Specifications

• Manufacturer: Bosch

• Product Name: Bosch DCNM-WD Wireless Discussion Device

• Series: DICENTIS

• Model: DCNM-WD

• Input Voltage (VDC): 7.50 VDC

• Power Consumption: 4.50 W

• Operating Time: > 24 hours (20% speech, 80% listening)

• Frequency Response (-3 dB): 100 Hz – 20,000 Hz

• Total Harmonic Distortion + Noise: 0.10%

• Minimum Dynamic Range: 90 dB

• Minimum Signal-to-Noise Ratio: 90 dB

• Headphone Load Impedance: 32 ohm – 1000 ohm

• Maximum Output Power: 15 mW

• Wi-Fi Standard: IEEE 802.11n

• Frequency Band: 2.4 GHz and 5 GHz (ISM license free)

• Audio Inputs (Acoustic): Nominal level: 80 dB SPL; Maximum level: 110 dB SPL

• Audio Outputs (Acoustic): Nominal level: 72 dB SPL; Maximum level: 80 dB SPL

• Audio Outputs (Electrical): Nominal level: 0 dBV; Maximum level: 3 dBV

• Mounting Type: Tabletop

• Dimensions (H x W x D): 72 mm x 259 mm x 139 mm (2.80 in x 10.20 in x 5.50 in)

• Weight (without battery pack): 590 g (1.30 lb)

• Weight (with battery pack): 1051 g (2.32 lb)

• Color (RAL): RAL 9017 Traffic black

• Operating Temperature: 5 °C – 45 °C (41 °F – 113 °F)

• Storage Temperature: -20 °C – 70 °C (-4 °F – 158 °F)

• Operating Relative Humidity: 5% – 95% (non-condensing)

Ideal Applications

• Corporate Boardrooms and Executive Meeting Rooms

• Government Conference Halls and Municipal Chambers

• International Summit and Multilingual Discussion Venues

• Educational Institution Auditoriums and Academic Discussion Centers

• Professional Legal and Courtroom Communication Infrastructure
