Bosch PLE‑1ME120‑US Plena Economy 120W 4 Channel Mixer Amplifier Price in Bangladesh

Description

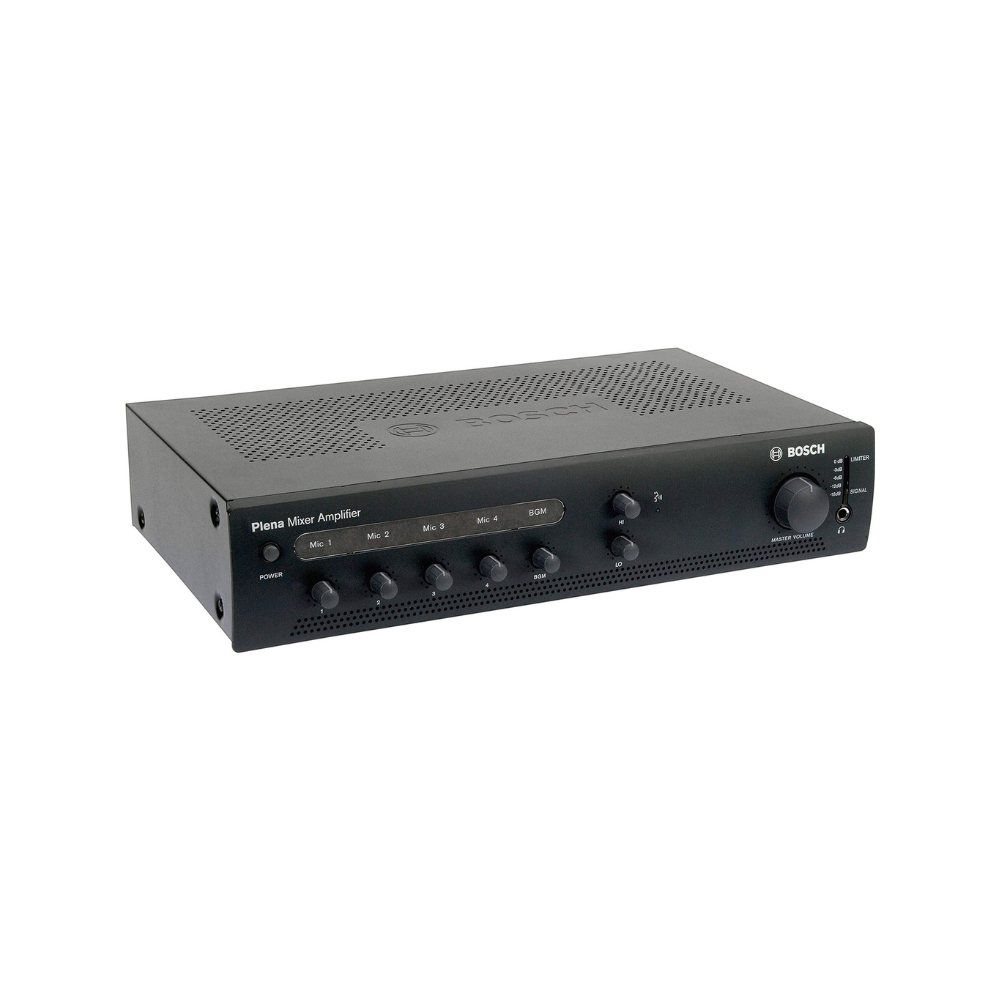

Product Name: Bosch PLE‑1ME120‑US Plena Economy 120W 4 Channel Mixer Amplifier Price in Bangladesh

Manufacturer:Bosch

Product Overview

The Bosch PLE-1ME120-US Plena Economy is a high-performance, professional public address mixer amplifier. It is designed to mix up to four separate microphone/line signals and one music signal. Furthermore, it provides intuitive operation, removing technical complexity while delivering crisp announcements and clear background music. Consequently, it features enhanced capabilities such as priority override, custom labeling windows, and preset setting indicators. Therefore, it serves as an ideal audio routing solution for commercial facilities, offices, and public venues.

Key Features and Benefits

• Manufacturer: Bosch

• Multi-Source Mixing: Combines up to 4 microphone/line inputs and 1 dedicated music source input with individual volume controls.

• Priority & Chime Function: Input channel 1 features push-to-talk contact closure activation. As a result, it provides priority override and an optional chime preceding announcements.

• Flexible Audio Outputs: Delivers power via 100 V / 70 V constant voltage connections or low-impedance 4-ohm loudspeaker outputs. Moreover, it includes master volume control and separate high/low tone controls.

• Personalized Settings & Indicators: Includes detachable front labeling windows and colored preset pins. Thus, different users can easily configure their preferred volume and tone levels.

• Reliable Output Protection: Incorporates an integrated output stage limiter. Therefore, it monitors master output levels and prevents signal overloading.

Technical Specifications

• Manufacturer: Bosch

• Product Name: Bosch PLE‑1ME120‑US Plena Economy 120W 4 Channel Mixer Amplifier

• Model: PLE-1ME120-US

• Mains Power Supply: 120 VAC, ±10%, 50/60 Hz (Inrush Current: 20 A)

• Power Consumption: 400 VA

• Frequency Response: Line: 60 Hz to 20 kHz | Mic: 70 Hz to 20 kHz (+1/-3 dB @ 10 dB ref. rated output)

• Distortion: <1% @ rated output power, 1 kHz

• Tone Controls: Bass Control: Max. -10/+10 dB | Treble Control: Max. -10/+10 dB

• Microphone/Line Inputs: 4 × balanced inputs (Input 1: 5-pin Euro style with PTT/priority; Input 2: 3-pin Euro style; Inputs 3 & 4: 1/4″ TRS Jack) | Sensitivity: 1 mV (mic), 300 mV (line)

• Music Input: 1 x Cinch stereo input converted to mono | Sensitivity: 200 mV | Impedance: 22 kOhm

• Loudspeaker Outputs: 100 V / 70 V and 4 Ohm screw terminals, floating | Rated Power: 120 W (Max: 180 W)

• Phantom Power: 16 V via 1.2 kΩ (Selectable)

• Physical Dimensions: 100 x 430 x 270 mm (19″ wide, 2U high)

• Mounting & Color: Stand-alone or 19″ rack mount | Color: Charcoal

• Operating Temperature: -10 °C to +45 °C

Ideal Applications

• Commercial Retail Stores and Shopping Malls

• Corporate Offices and Conference Room Audio Systems

• Educational Institutions and Lecture Halls

• Hospitality Venues and Public Announcement Systems

Conclusion

The Bosch PLE-1ME120-US Plena Economy Mixer Amplifier delivers a robust, reliable 120W audio distribution solution with professional-grade mixing and priority features. Because it combines intuitive multi-source control with durable public address capabilities, it provides dependable sound reinforcement for a wide variety of commercial applications.
