Bosch FLM-420-RLV1-E Low-Voltage Relay Interface Module Price in Bangladesh

Description

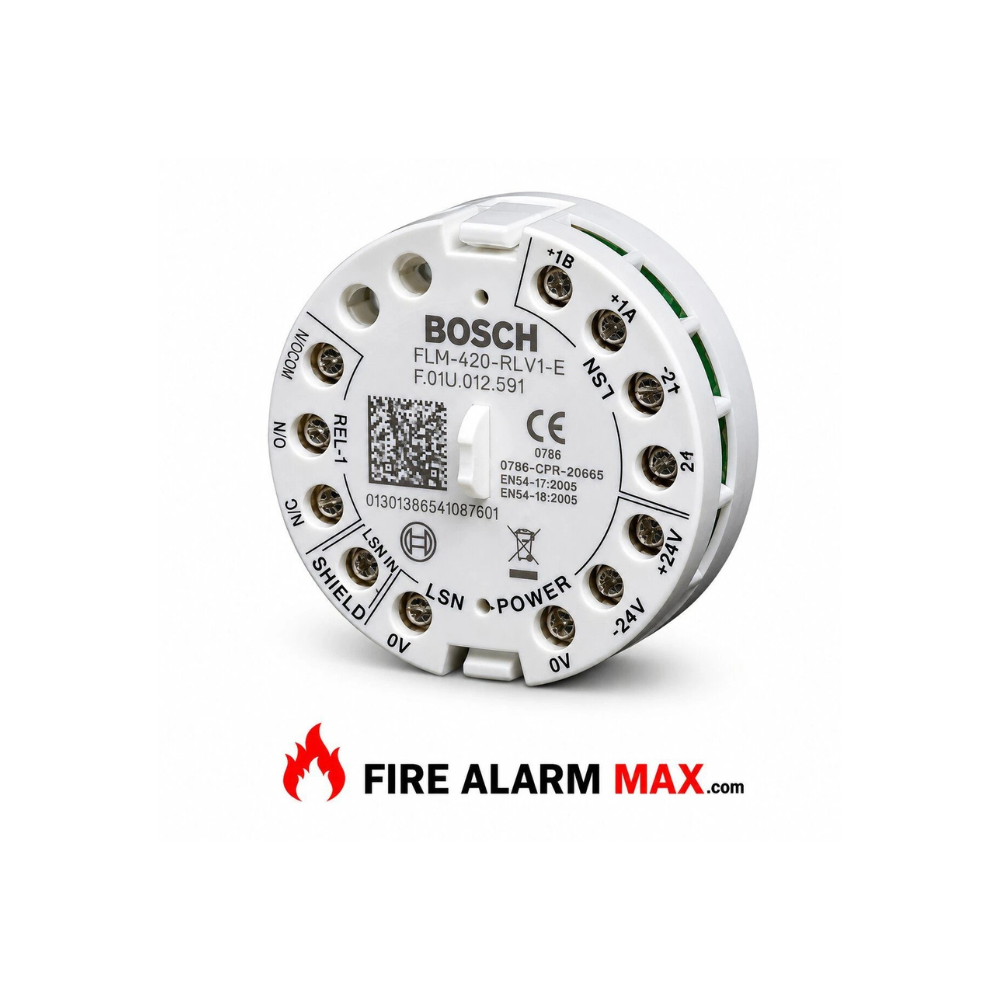

Product Name: Bosch FLM-420-RLV1-E Low-Voltage Relay Interface Module Price in Bangladesh

Manufacturer: Bosch Building Technologies

Product Overview

The Bosch FLM-420-RLV1-E operates as an addressable low-voltage relay interface module engineered for Bosch fire alarm control panels (such as the FPA-5000 and FPA-1200 series). Furthermore, it provides a changeover contact relay (Form C: NO/NC/COM) to deliver a potential-free output contact for controlling low-voltage auxiliary systems.

In addition, the module connects directly to the 2-wire Local Security Network (LSN) loop, drawing operating power directly from the communication line. Specifically, it triggers external equipment such as ventilation shut-offs, fire door retainers, access control overrides, and emergency signaling systems. Designed as an in-built variant, it mounts inside standard electrical device boxes or directly within target equipment housings for space-saving deployment.

Key Benefits

• Loop-Powered Addressability: Connects directly to the 2-wire LSN loop without requiring external 24 VDC auxiliary power supplies.

• Integrated Line Isolation: Features two integrated line isolators to maintain LSN loop integrity in the event of a wire break or short circuit.

• Addressing: 8 DIP switches; supports automatic addressing (setting 0), manual addressing (settings 1–254) in LSN improved mode, and classic LSN mode (setting 255; address range up to 127).

• Compact In-Built Profile: Fits into standard EN 60670 electrical wall boxes or directly inside controlled device enclosures.

Key Features & Technologies

• Form C Output Relay: Provides potential-free changeover contacts (Normally Open, Normally Closed, and Common).

• LSN Improved Technology: Accommodates flexible loop topologies—including stub lines and T-tapping—with up to 254 elements per loop.

• Low Current Draw: Operates with minimal current consumption directly off the LSN bus line.

• Integrated Line Isolators: Helps maintain LSN loop operation during a short circuit or line interruption and sends a fault indication to the fire panel.

• Unshielded Cable Support: Operates reliably over standard unshielded fire alarm cabling configurations.

Technical Specifications Overview

• Brand: Bosch Building Technologies

• Model: FLM-420-RLV1-E

• Product Type: Low-Voltage Relay Interface Module (In-Built Type)

• LSN Operating Voltage: 15 VDC to 33 VDC

• Maximum LSN Current Consumption: Approximately 1.75 mA

• Relay Contact Type: 1 Changeover Contact (Form C: NC / COM / NO)

• Maximum Switching Capacity (In-Built Type): 1 A at 30 VDC / 0.5 A at 42.4 VAC (Resistive Load)

• Minimum Activation Time: > 20 ms for connected devices

• Addressing: 8 DIP switches; supports automatic and manual addressing in LSN improved mode and classic LSN mode, subject to panel configuration.

• Operating Temperature: -20°C to +55°C (-4°F to 131°F)

• Relative Humidity: < 96% RH (non-condensing)

• Ingress Protection Rating: IP30

• Dimensions: Approximately 50 mm diameter × 22 mm height

• Weight: Approximately 35 g unpackaged / 130 g packaged

• Agency Compliance: EN 54-17:2005 (Isolators), EN 54-18:2005 (Input/Output Devices), CE, VdS

Conclusion

The Bosch FLM-420-RLV1-E Low-Voltage Relay Module provides addressable potential-free contact control across Bosch LSN fire alarm networks. Moreover, its integrated dual isolators, loop-powered design, DIP switch addressing, and compact in-built form factor support reliable auxiliary system activation in commercial life safety installations.
