Small Enterprise Environment Monitoring System – E-2D

Description

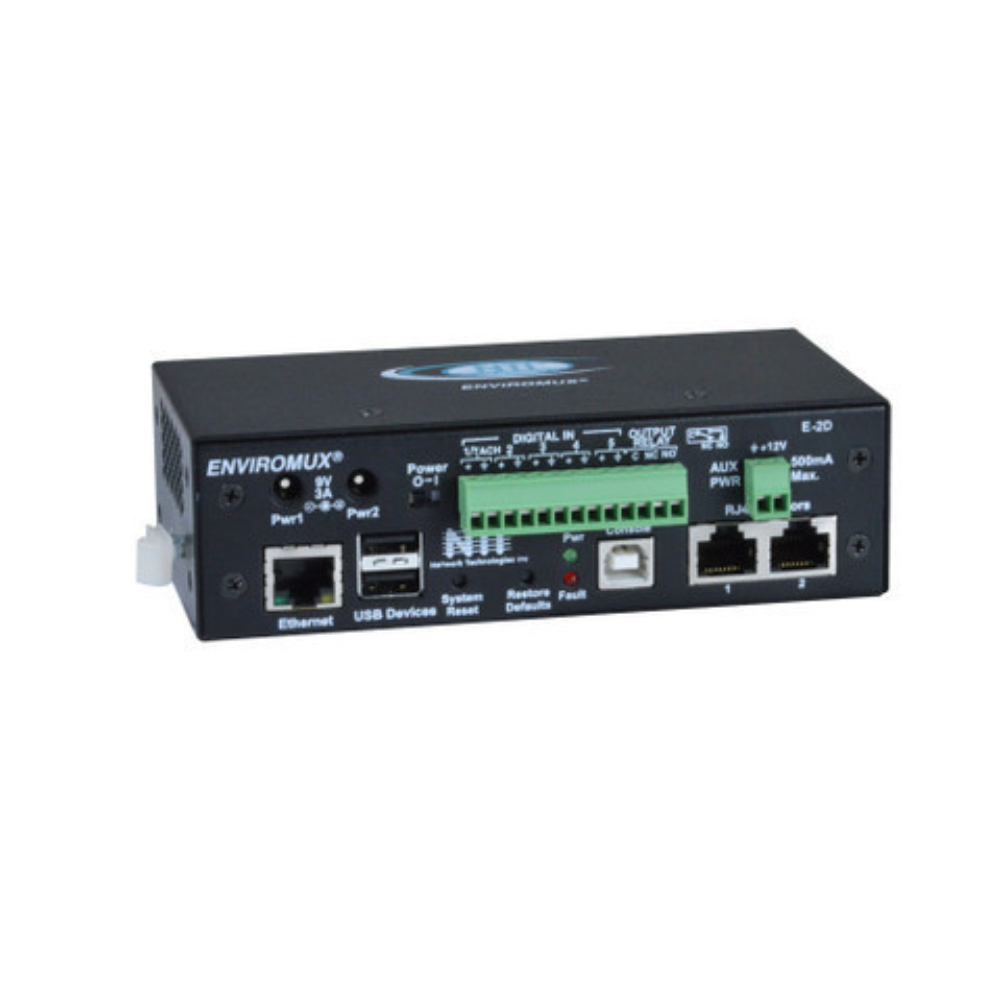

Product Name: Small Enterprise Environment Monitoring System – E-2D

Manufacturer: NTI (Network Technologies Inc)

Product Overview

The E-2D is a sophisticated environmental monitoring system designed to protect critical network components in server rooms, data centers, and unmanned remote sites. By monitoring conditions such as temperature, humidity, water leakage, and air flow, the system provides early warnings before critical events escalate into disasters. When a sensor threshold is breached, the E-2D alerts users via email, SNMP, webpage, visual LED indicators, voice phone calls (via the Automatic Voice Dialer System), and SMS messages (via email-to-SMS or an external USB modem). Built on a Linux platform, this unit offers flexible deployment with optional PoE, dual redundant power, and cascading capabilities.

Key Features

• Comprehensive Monitoring: Supports a wide range of external sensors including temperature, humidity, water leaks, air flow, motion, smoke, and carbon monoxide.

• Flexible Connectivity: Supports 2 external configurable sensors, 5 digital inputs, and 1 output relay. Sensors can be extended up to 1,000 feet using standard Cat5/5e/6 cable.

• Smart Alerting: Configure alerts for individual events or combine multiple events to trigger “Smart Alerts.”

• Device Management: Monitors (pings) up to 64 IP network devices and provides alerts if they stop responding.

• Scalable Deployment: Cascade up to 5 units via Ethernet (1 master, 4 slaves) or manage up to 3,000 units using the optional intuitive graphical management software.

• Industrial Durability: Available as an industrial version (E-2D-IND) capable of operating in harsh environments up to 167°F (75°C).

• Flexible Power Options: Supports standard AC adapter, optional dual redundant power, 24VDC, 48VDC, or Power over Ethernet (PoE).

• Linux Platform: Built on Linux for reliable and continuous environmental monitoring.

• Integration Ready: Compatible with Open Source monitoring packages like Nagios and MRTG via SNMP polling.

Technical Specifications

• Sensor Ports: 2 RJ45 Sensor Ports, 5 Digital Inputs (Screw Terminal), 1 Output Relay (Screw Terminal).

• Alerting Methods: Email (authenticated), SNMP Traps (v1, v2c, v3), Web Page, LED, Voice Calls (via external dialer), SMS (via external USB modem).

• Supported Protocols: HTTP/HTTPS, SNMP, SMTP, TCP/IP, Syslog, SNTP, DHCP, SSHv2, SSLv3, TLS v1.2, LDAPv3, XOAUTH2, AES 256-bit, IPv6, RADIUS.

• Operating Temperature:

  • E-2D: 0°C to 60°C (32°F to 140°F)

  • E-2D-IND: -20°C to 75°C (-4°F to 167°F)

• Operating & Storage Humidity: 5% to 90% non-condensing RH.

• USB Ports: 2 (for USB modem or USB flash drive)

• IP Device Monitoring: Up to 64 network devices.

• Backup Battery: Optional (up to 2 hours).

• Languages Supported: English, German, Chinese, Japanese.

• Dimensions:

  • E-2D/POE: 5.82″ x 3″ x 1.75″

  • E-2D-24V/48V: 10.63″ x 3.11″ x 1.75″

• Mounting: Zero-RU (included), optional 1RU rack mount, or optional DIN rail mount.

• Regulatory & Warranty: CE, RoHS approved; 2-year warranty.

Conclusion

Dream Technologies BD is a trusted supplier of the Environment Monitoring System – E-2D in Bangladesh. We provide professional installation, software configuration, and dedicated after-sales support to ensure your mission-critical environments—such as data centers, server rooms, and telecom sites—remain secure, stable, and fully monitored.
