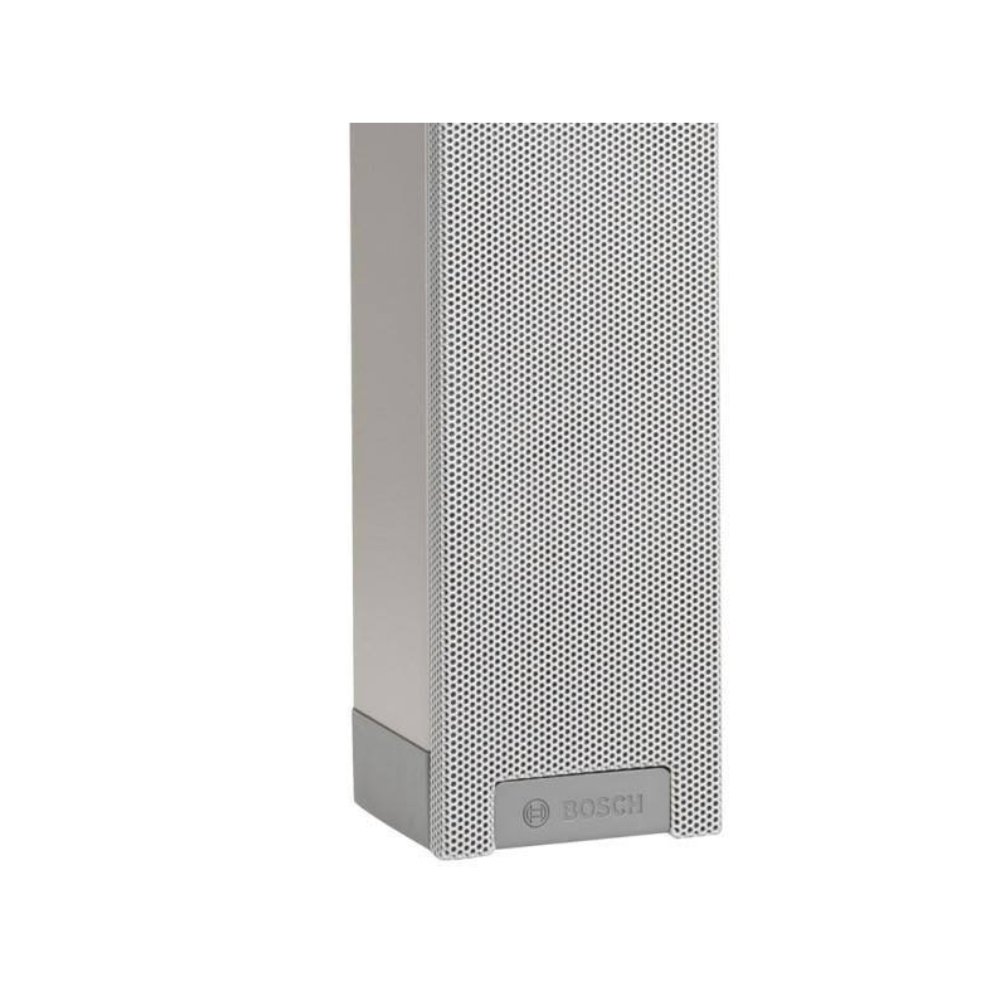

Bosch LBC 3200/00 Line Array Loudspeaker Price in Bangladesh

Description

Product Name: Bosch LBC 3200/00 Line Array Loudspeaker Price in Bangladesh

Manufacturer: Bosch

Product Overview

The Bosch LBC 3200/00 is a 30W line array loudspeaker designed with good directivity to handle small and medium indoor environments such as congress venues, meeting rooms, showrooms, and canteens. Featuring a full frequency range ideal for both speech and music reproduction, its exceptionally narrow housing (only 8 cm wide) ensures an unobtrusive appearance. It comes complete with a wall mounting bracket and supports temporary floor stand installations.

Key Features and Benefits

• Extended Listening Area (XLA) Technology: Special positioning of loudspeaker drivers significantly improves audio directivity and coverage.

• Wide Opening Angles: Features a 130° horizontal and 18° vertical opening angle at 4 kHz, ensuring natural sound reproduction over an extensive listening area.

• Suppressed Side Lobes: Delivers at least 8 dB of vertical side lobe suppression to produce a clearer sound and reduce acoustic feedback risks.

• Power Tapping Switch: Equipped with a built-in ceramic terminal block and a power selection switch for nominal full power (30 W), half power (15 W), or quarter power (7.5 W).

• Emergency Compliant Design: Incorporates a thermal fuse, heat-resistant wiring, and a ceramic terminal block to maintain circuit integrity during fire emergencies (EN 54-24 certified).

• Robust Build Quality: Tested to withstand rated power operations for 100 hours in compliance with IEC 60268-5 standards.

Technical Specifications

• Manufacturer: Bosch

• Product Name: Bosch LBC 3200/00 Line Array Loudspeaker

• Series: XLA 3200

• Model: LBC 3200/00

• Maximum Power: 45 W

• Rated Power: 30 W

• Transformer Taps: 30 W; 15 W; 7.5 W

• Sensitivity (1 W, 1 m, 1 kHz octave): 91 dB

• Sound Pressure Level (Rated power, 1 m, 1 kHz): 106 dB

• Frequency Range (-10 dB): 190 Hz – 18,000 Hz

• Rated Impedance (100 V line): 333 Ω (30 W), 667 Ω (15 W), 1333 Ω (7.5 W)

• Weight: 3.00 kg (6.60 lb)

• Color (RAL): RAL 9022 Pearl light gray

• Operating Temperature: -25 °C – 55 °C (-13 °F – 131 °F)

Ideal Applications

• Congress Venues and Conference Facilities

• Meeting Rooms and Corporate Boardrooms

• Showrooms and Exhibition Spaces

• Indoor Canteens and Dining Halls

• Public Buildings requiring EN 54-24 Voice Alarm Systems

Conclusion

The Bosch LBC 3200/00 Line Array Loudspeaker provides a high-intelligibility audio solution for small to medium indoor public address and voice alarm installations. With advanced acoustic directivity, built-in power tapping, and emergency compliance features, it ensures reliable performance and clear sound distribution.
