Bosch Plena Amplifier 480W (LBB1938/30) Price in Bangladesh

Description

Product Name: Bosch Plena Amplifier 480W (LBB1938/30) Price in Bangladesh

Manufacturer: Bosch

Product Overview

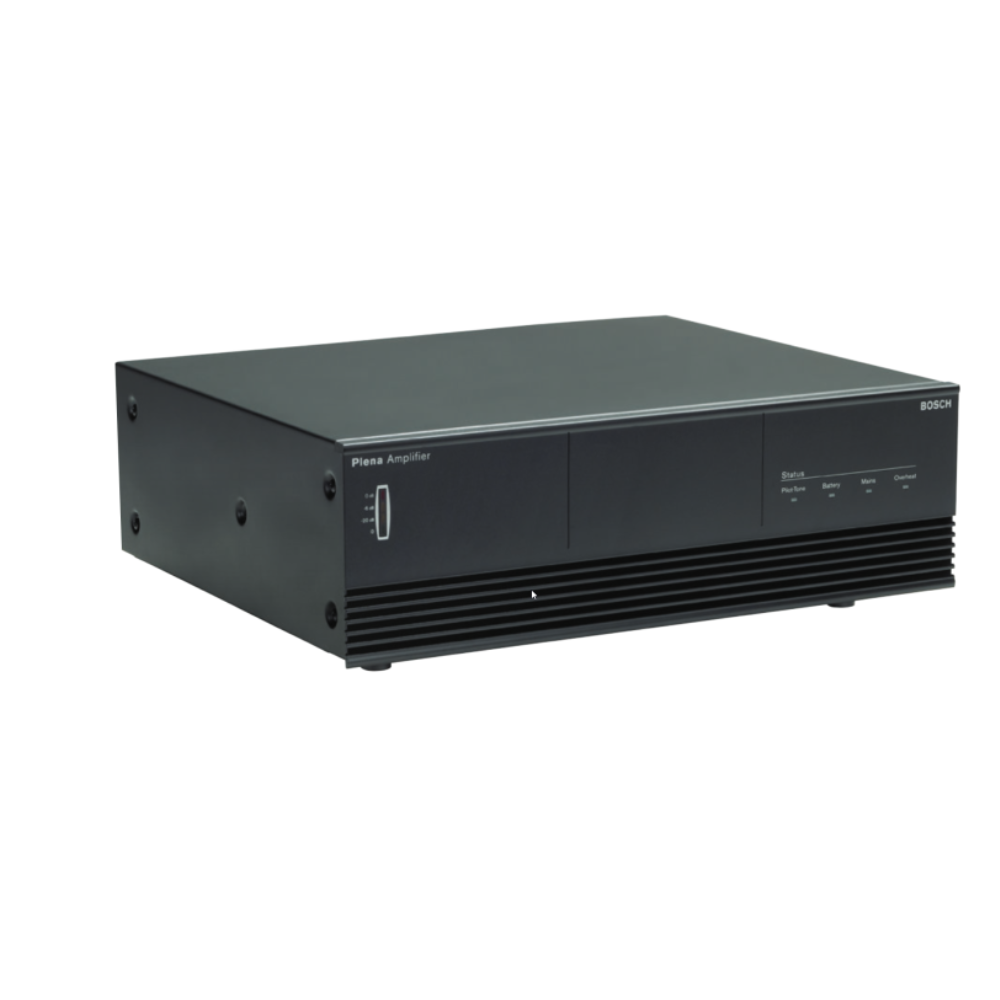

The Bosch LBB1938/30 Plena is a powerful 480W power amplifier housed in a 3U high 19-inch case designed for rack mounting or tabletop use. It fulfills a wide range of public address and voice alarm requirements with exceptional reliability and compliance with EN 54-16 standards. Furthermore, it features comprehensive status monitoring LEDs on the front panel. Additionally, it operates on both mains power and a 24 VDC emergency battery supply with automatic switchover. Consequently, it serves as an ideal high-power amplification solution for large commercial buildings, auditoriums, and emergency evacuation systems.

Key Features and Benefits

• Manufacturer: Bosch

• High-Power Amplification: Delivers 480 W RMS rated power and up to 720 W maximum power to constant voltage or low-impedance loads.

• EN 54-16 Certified Supervision: Monitors mains presence, battery status, pilot-tone operation, and amplifier functions with fail-safe relay outputs.

• Dual Power Operation: Operates on standard mains power (220/230 VAC) or a 24 VDC emergency backup battery supply with automatic switchover.

• Flexible Input & Zone Routing: Includes two balanced XLR inputs with priority control, loop-through facilities, a 100V slave input, and separate priority-controlled speaker zone outputs.

• Advanced Thermal Protection: Features overload and short-circuit protection alongside a temperature-controlled forced-air cooling fan.

Technical Specifications

• Manufacturer: Bosch

• Product Name: Bosch Plena 480W Power Amplifier

• Model / Part Number: LBB1938/30

• Mains Power Supply: 220/230 VAC, ±10%, 50/60 Hz (Inrush Current: 19 A | Max Power Consumption: 2200 VA)

• Battery Power Supply: 24 VDC +15% / -15% (Max Current: 30 A)

• Performance: Output Power (RMS / Max): 480 W / 720 W | Frequency Response: 50 Hz to 20 kHz | Distortion: <1% at 1 kHz | S/N Ratio: >90 dB

• Line Inputs: 2 x 3-pin XLR balanced (Sensitivity: 1 V, Impedance: 20 kOhm) with loop-through facility

• 100V Input: Screw unbalanced (Sensitivity: 100 V, Impedance: 330 kOhm)

• Loudspeaker Outputs: 3 x screw floating connectors (Direct Output: 100 V, 70 V, 8 Ohm; plus separate priority-controlled and music-only zone outputs)

• Physical Dimensions: 145 x 430 x 370 mm (19″ wide, 3U high, with feet)

• Mounting & Color: Standalone or 19″ rack mount | Color: Charcoal

• Weight: Approx. 25 kg (55 lbs)

• Operating Temperature: -10 ºC to +55 ºC (14 ºF to +131 ºF)

Ideal Applications

• Large Commercial Buildings and Shopping Malls

• EN 54-16 Certified Voice Alarm and Emergency Evacuation Systems

• Corporate Auditoriums, Universities, and Convention Centers

• Multi-Zone Public Address and Background Music Installations

Conclusion

The Bosch LBB1938/30 Plena 480W Power Amplifier provides an enterprise-grade, highly reliable audio reinforcement and emergency broadcast solution. Because it combines massive power delivery with rigorous EN 54-16 safety monitoring and flexible zone routing, it ensures dependable performance for critical public address applications.
