Bosch PLE‑1MA030‑US Plena 30W Mixer Amplifier Price in Bangladesh

Description

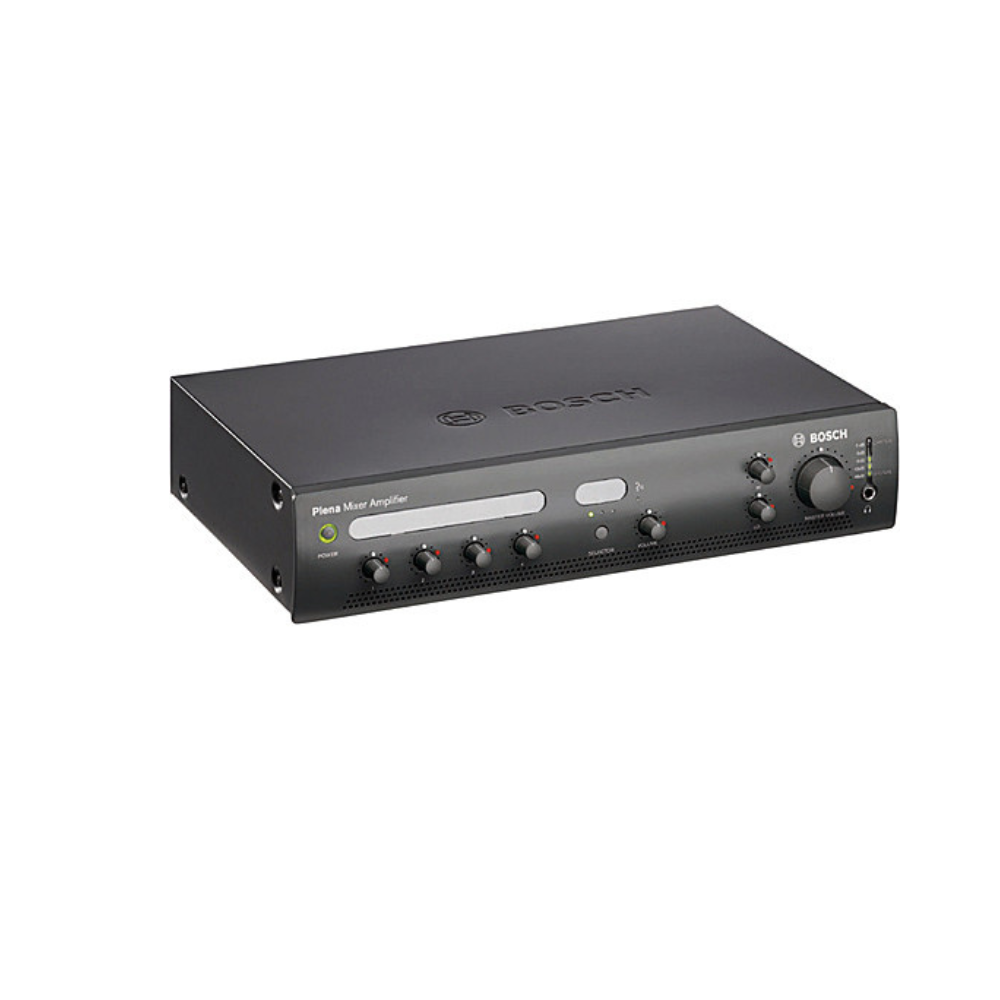

Product Name: Bosch PLE‑1MA030‑US Plena 30W Mixer Amplifier Price in Bangladesh

Manufacturer:Bosch

Product Overview

The Bosch PLE-1MA030-US Plena is a high-performance 30W public address mixer amplifier engineered with modern, state-of-the-art features for effortless operation. It successfully removes technical complexity from the user experience while delivering crisp announcements and clear background music. Furthermore, it provides professional flexibility without sacrificing essential capabilities such as voice-activated ducking, priority management, and custom tone controls. Consequently, it serves as an ideal audio routing solution for commercial spaces, offices, and public venues.

Key Features and Benefits

• Manufacturer: Bosch

• Versatile Inputs: Features 4 balanced microphone/line input channels alongside 3 dedicated music source inputs with individual volume controls.

• Smart Priority & Ducking: Input channels 1 and 2 offer priority override functions via push-to-talk contact closure or VOX activation, complemented by adjustable background attenuation levels.

• Emergency & Telephone Paging: Includes a dedicated telephone and 70V emergency input with VOX activation that seamlessly overrides all other inputs for critical announcements.

• Flexible Output Options: Provides 25/70V constant voltage connections, low-impedance 4-ohm outputs, a dedicated 70V call-only output channel, and a balanced master output.

• Personalized User Settings: Incorporates customizable front-panel labeling windows and colored preset pins to help multiple users quickly configure their preferred volume levels.

Technical Specifications

• Manufacturer: Bosch

• Product Name: Bosch PLE‑1MA030‑US Plena 30W Mixer Amplifier

• Model: PLE-1MA030-US

• Mains Power Supply: 115 VAC ±10%, 50/60 Hz (Inrush Current: 4.5 A)

• Power Consumption: 100 VA

• Frequency Response: 50 Hz to 20 kHz (+1/-3 dB @ -10 dB ref. rated output)

• Total Harmonic Distortion: <1% @ rated output power, 1 kHz

• Tone Controls: Bass Control: Max -12/+12 dB | Treble Control: Max -12/+12 dB

• Microphone/Line Inputs: 4 × balanced microphone/line inputs (Input 1: PTT | Input 2: VOX | Inputs 3–4: Standard balanced inputs) | Sensitivity: 1 mV (Mic), 200 mV (Line)

• Music Inputs: 3 x RCA stereo inputs converted to mono | Sensitivity: 200 mV | Impedance: 22 kohm

• Emergency / Telephone Input: 1 x 7-pin Euro style screw connector | VOX threshold: 50 mV

• Loudspeaker Outputs: 25/70 V and 4 ohm Euro style pluggable screw terminals | Rated Power: 30 W (Max: 45 W)

• Physical Dimensions: 100 x 430 x 270 mm (19″ wide, 2U high)

• Weight:Approx. 11 lb (Approx. 5 kg)

• Color: Charcoal

• Operating Temperature: +14 ºF to +113 ºF (-10 ºC to +45 ºC)

Ideal Applications

• Commercial Retail Stores and Shopping Malls

• Corporate Offices and Conference Rooms

• Educational Institutions and Classrooms

• Hospitality Venues, Restaurants, and Public Spaces

Conclusion

The Bosch PLE-1MA030-US Plena Mixer Amplifier delivers a reliable, user-friendly 30W public address mixer amplifier solution with professional-grade priority controls and flexible multi-source routing. Because it combines robust public address features with intuitive operation, it provides dependable sound reinforcement for a wide variety of commercial applications.
