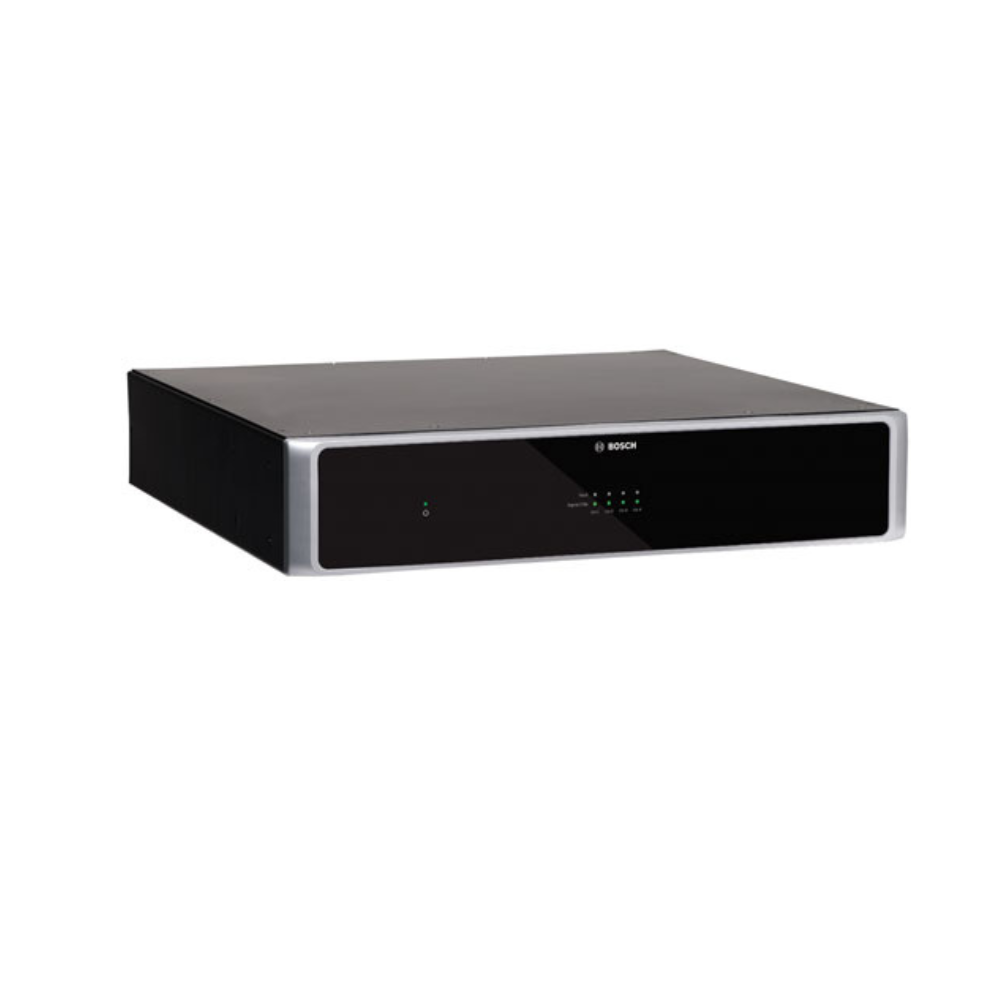

Bosch PLM-4P125 Plena Matrix DSP 4-Channel 125W Amplifier Price in Bangladesh

Description

Product Name: Bosch PLM-4P125 Plena Matrix DSP 4-Channel 125W Amplifier Price in Bangladesh

Manufacturer: Bosch

Product Overview

The Bosch PLM-4P125 is a 4-channel DSP power amplifier. It delivers 125W per channel. Furthermore, it suits versatile commercial audio and public address applications. Housed in a 2RU 19-inch enclosure, it features built-in digital signal processing. Additionally, users can access these controls via a PC GUI or an iOS app. Moreover, it supports universal AC mains power from 100 to 240 VAC. Finally, an eco-friendly auto standby mode helps reduce running costs.

Key Features and Benefits

• 4-Channel Class-D Amplification: It delivers 125W per channel continuously. Furthermore, it supports 100 V, 70 V, 8 ohm, or 4 ohm loads with bridging capabilities.

• Integrated DSP Processing: It features comprehensive audio processing. Additionally, this includes an input mixer, 8-band parametric output EQ, and dynamic bass enhancement.

• Amp Link Connectivity: It includes a dedicated CAT5 Amp Link port. Consequently, connecting with the PLM-8M8 8-Channel Matrix Mixer is quick and error-free.

• Flexible Control Options: Users can manage operations locally or remotely. Moreover, control options include a PC GUI, an iOS app, or third-party Ethernet systems.

• Energy-Saving Auto Standby: It reduces power consumption significantly. Furthermore, it supports manual standby or motion detector integration via a 12 V DC output.

Technical Specifications

• Product Name: Bosch PLM-4P125 Plena Matrix 4-Channel DSP 125W Amplifier

• Model / Part Number: PLM-4P125

• Mains Power Supply: Nominal input voltage 100 to 240 VAC, 50/60 Hz (Input limits: 90 to 264 VAC)

• Power Consumption: 254 W (-6dB), 27 W (Idle), 6 W (Standby)

• Performance: Rated Output Power: 125 W per channel (continuous/burst) | Bridged (CH 1-2 / 3-4): 250 W | Frequency Response: 65 Hz to 20 kHz (+0/-3 dB) | Dynamic Range: >101 dB (A-weighted) | THD+N: 0.1% at 1 kHz (-6 dBFS)

• Audio Inputs: 4 x XLR/TRS combo | 4 x 3-pole balanced Phoenix terminal (wired in parallel) | 1 x RJ45 (Amp Link) | 1 x balanced line-level override input

• Loudspeaker Outputs: 4 x 3-pole balanced Phoenix terminal (Supporting 100 V, 70 V, 8 ohm, 4 ohm simultaneously)

• Physical Dimensions: 90 x 440 x 417 mm (3.5 x 17.3 x 16.4 inches, 2RU high for 19-inch rack mounting)

• Mounting & Color: Standalone or 19-inch rack mount | Color: Traffic black (RAL 9017) with silver (RAL 9006)

• Weight: Approx. 15 kg (33 lbs)

• Operating Temperature: -10 °C to +45 °C (14 °F to +113 °F)

Ideal Applications

• Restaurants, Pubs, Bars, Nightclubs, and Cafes

• Corporate Boardrooms, Meeting Rooms, and Conference Facilities

• Office Buildings, Shopping Centers, and Retail Stores

• Gyms, Recreation Facilities, Schools, and Houses of Worship

• Regional Airports, Train Stations, and Bus Terminals

Conclusion

The Bosch PLM-4P125 Plena Matrix DSP 4-Channel 125W Amplifier offers a robust audio power solution. Because it combines flexible multi-load output routing with advanced DSP capabilities, it ensures exceptional sound quality. Therefore, it guarantees reliable daily performance for complex commercial installations.
