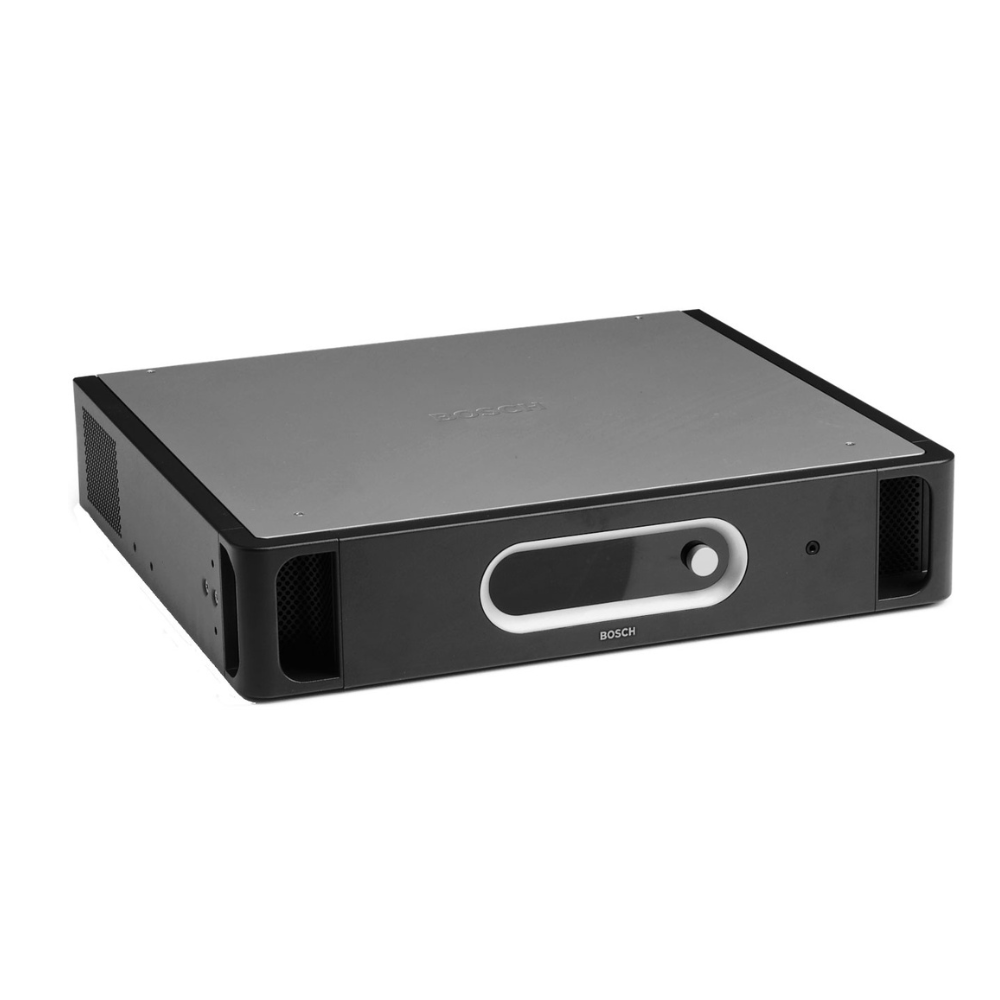

Product Name: Bosch PRS-16MCI Multichannel Interface Price in Bangladesh

Manufacturer: Bosch

Product Overview

The Bosch PRS-16MCI is a core multichannel interface unit designed for Praesideo digital public address and emergency sound systems. It bridges the Praesideo network and basic non-networked power amplifiers. Furthermore, it provides 16 configurable output channels consisting of 14 main outputs and two spare outputs. Additionally, it supervises connected amplifiers, provides full control routing, and reports fault events to the Praesideo network controller.

Key Features and Benefits

• Praesideo Network Integration: It serves as the primary link between the Praesideo digital network and non-networked basic amplifiers.

• 16 Configurable Channels: It supports up to 14 main audio channels for specific zones and two dedicated spare amplifier channels.

• Comprehensive Supervision: It continuously monitors its own status and the operational health of all connected basic amplifiers.

• Failsafe Audio Loop-Through: It includes XLR loop-through connections that pass emergency audio calls through, even if the unit itself fails.

• Extensive Control Connectivity: It features 32 control inputs and 16 voltage-free control outputs on removable Euro-style screw terminals.

Technical Specifications

• Product Name: Bosch PRS-16MCI Multichannel Interface

• Model / Part Number: PRS-16MCI

• Power Consumption: 12 W (DC)

• Performance: Frequency Response: 20 Hz to 20 kHz (-3 dB) | Total Harmonic Distortion: <0.1% (1 kHz) | Crosstalk: <-80 dB (1 kHz) | S/N Ratio: >85 dB (without pilot tone)

• Audio Connections: 1 x XLR bypass line input | 1 x XLR loop-through line output | 16 x RJ45 jacks (in pairs) for basic amplifiers

• Control Terminals: 32 x control inputs (closing contact with supervision) | 16 x control outputs (SPDT voltage-free relay, 24 V, 1 A)

• Physical Dimensions: 88 x 483 x 400 mm (3.5 x 19 x 15.7 in, 2 RU for 19″ rack use)

• Mounting & Color: 19″ rack mount | Color: Charcoal with silver

• Weight: 7 kg (15.4 lbs)

• Operating Temperature: -5 ºC to +55 ºC (+23 ºF to +131 ºF)

Ideal Applications

• Praesideo Public Address and Emergency Sound Networks

• EN 54-16 / IEC 60849 Certified Voice Alarm Systems

• Large Commercial Buildings, Airports, and Transportation Terminals

• Multi-Zone Corporate Facilities and Industrial Complexes

Conclusion

The Bosch PRS-16MCI Multichannel Interface provides an essential routing and supervision link for Praesideo basic amplifiers. Because it combines multi-zone signal management with rigorous emergency safety compliance, it ensures dependable network control for mission-critical public address deployments.
