Bosch PLE‑1P240‑US Plena 240W Amplifier Price in Bangladesh

Description

Product Name: Bosch PLE‑1P240‑US Plena 240W Amplifier Price in Bangladesh

Manufacturer:Bosch

Product Overview

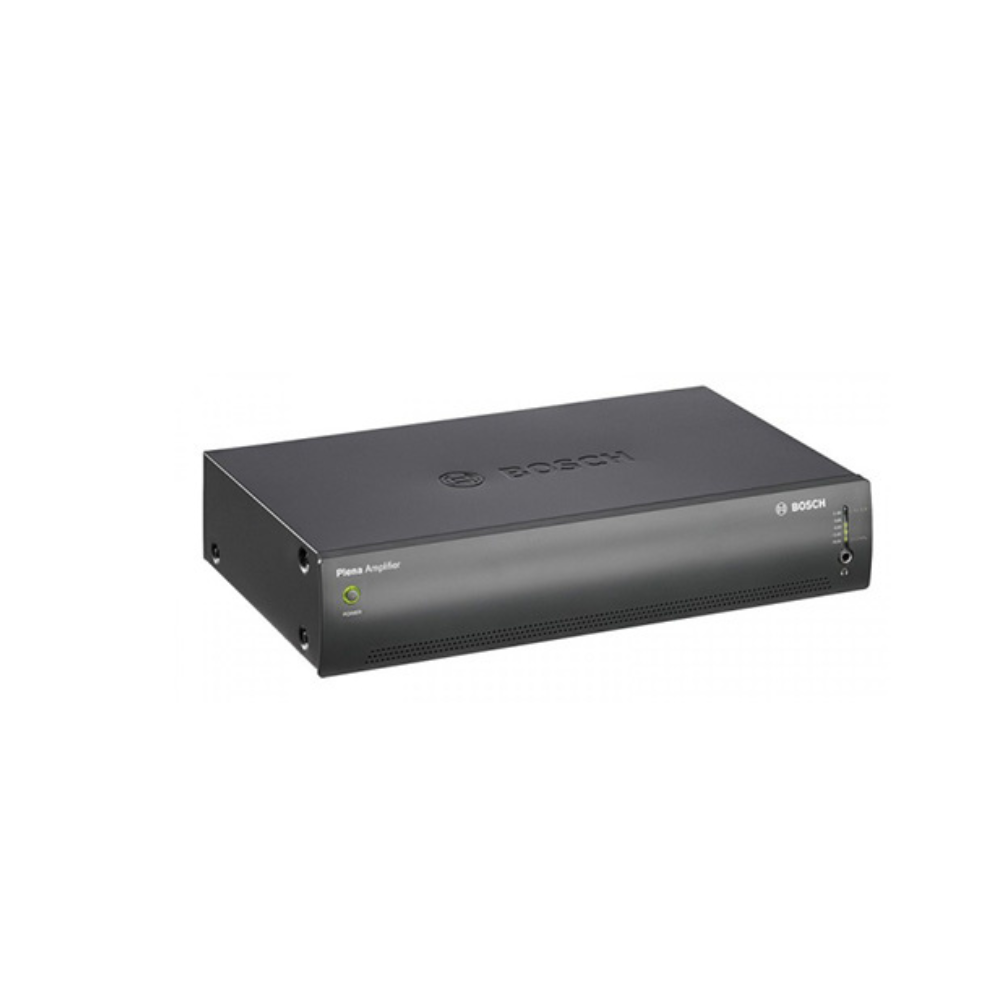

The Bosch PLE-1P240-US Plena is a high-power, cost-effective power amplifier engineered to deliver 240 Watts to constant voltage or 4-ohm loads. It is built with premium quality components and robust protections, offering reliable performance at an affordable price. Furthermore, it provides straight 1 V and 70 V line inputs alongside 25/70 V and 4-ohm outputs. Consequently, it serves as an ideal solution to expand the power capacity of existing Plena mixer-amplifiers or to deliver remote audio reinforcement in commercial sound systems.

Key Features and Benefits

• Manufacturer: Bosch

• High-Power Delivery: Delivers up to 360 W maximum power and 240 W rated power to constant voltage or low-impedance loads.

• Dual Power Operation: Operates on standard mains power or a 24 VDC backup battery supply with automatic switchover and a built-in battery charger.

• Comprehensive Protection: Features built-in overload and short-circuit protection, an integrated output limiter, and a temperature-controlled cooling fan.

• Flexible Input Options: Includes a balanced 1 V line input with a loop-through facility and a secondary 70 V line input for connecting to remote loudspeaker lines.

• Secure Level Control: Rear-mounted gain and level controls prevent accidental adjustments, while a front panel LED VU meter monitors the master output level.

Technical Specifications

• Manufacturer: Bosch

• Product Name: Bosch PLE‑1P240‑US Plena 240W Amplifier

• Model: PLE-1P240-US

• Mains Power Supply: 115 – 230 VAC ±10%, 50/60 Hz (Inrush Current: 18 A at 115 VAC / 9 A at 230 VAC)

• Power Consumption: 760 VA (Mains Max Power: 451 W)

• Battery Power Supply: 24 VDC ±15% (Current: 11 A | Charge Current: 0.5 ADC)

• Performance: Max / Rated Power: 360 W / 240 W | Frequency Response: 50 Hz to 20 kHz | Distortion: <1% at 1 kHz

• Inputs: Connector 1: 3-pin Euro style balanced (Sensitivity: 1 V, Impedance: 20 kohm) | Connector 2: 3-pin Euro style 70 V (Sensitivity: 70 V, Impedance: 300 kohm)

• Loudspeaker Outputs: 25 V, 70 V, and 4 ohm Euro style pluggable screw terminals (PLE-1P240-US Output: 44 V at 240 W)

• Physical Dimensions: 100 x 430 x 270 mm (19″ wide, 2U high)

• Mounting & Color: Stand-alone or 19″ rack mount | Color: Charcoal

• Weight: Approx. 27.6 lb (Approx. 12.5 kg)

• Operating Temperature: +14 ºF to +131 ºF (-10 ºC to +55 ºC)

Ideal Applications

• Commercial Public Address and Background Music Systems

• Large Corporate Offices and Conference Centers

• Educational Facilities, Auditoriums, and Campuses

• Multi-Zone Remote Amplification and Emergency Paging Backup

Conclusion

The Bosch PLE-1P240-US Plena 240W Power Amplifier provides a dependable, high-power audio extension solution with professional emergency battery backup capabilities. Because it combines robust overload protections with flexible constant voltage routing, it ensures continuous, high-quality sound reinforcement for demanding commercial environments.
