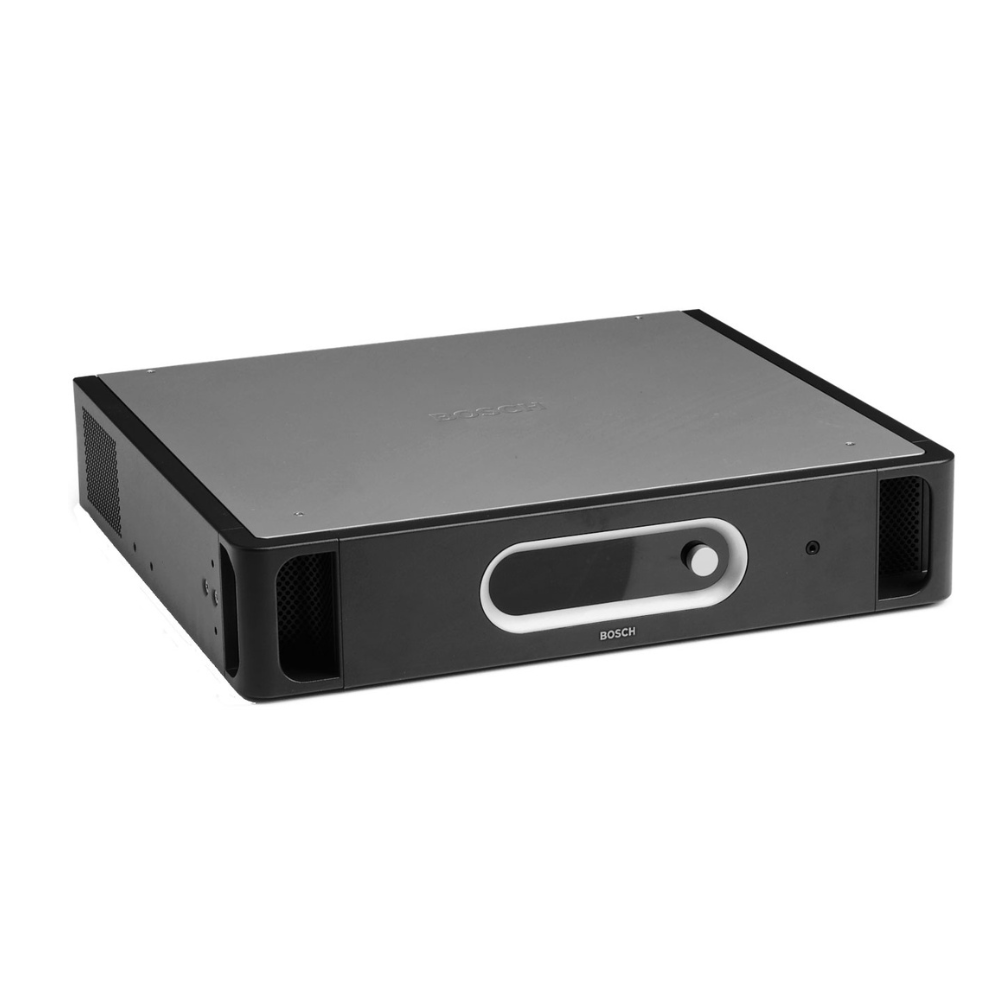

Bosch PRS-4B125-EU Basic Power Amplifier 4x125W Price in Bangladesh

Description

Product Name: Bosch PRS-4B125-EU Basic Power Amplifier 4x125W Price in Bangladesh

Manufacturer: Bosch

Product Overview

The Bosch PRS-4B125-EU is a cost-effective 4-channel basic power amplifier. It delivers 125W per channel. Furthermore, it is designed for integration with the Praesideo digital public address and emergency sound system. Housed in a 19-inch rack unit, it suits venues without built-in DSP needs. Instead, it connects via the PRS-16MCI Multi Channel Interface. Thus, it handles audio, control, and fault supervision. Additionally, it runs on mains power and a 48 VDC backup battery with automatic switchover.

Key Features and Benefits

• High-Efficiency 4-Channel Amplification: It supplies four channels at 125W each. Moreover, it features built-in transformers for 70V and 100V lines.

• Praesideo System Integration: It links to the Praesideo network through the PRS-16MCI interface. Consequently, it achieves IEC 60849 compliant supervision.

• Dual Power Operation: It runs on standard AC mains or 48 VDC backup power. Therefore, switchover happens automatically during emergencies.

• Flexible Zone Routing: It includes separate group A and group B terminals. Furthermore, these support class-A loop wiring and spare channel setups.

• Local Audio Inputs: Each channel features symmetrical analog inputs. Additionally, rear rotary volume controls manage low-priority local audio.

Technical Specifications

• Product Name: Bosch PRS-4B125-EU Basic Power Amplifier 4x125W

• Model / Part Number: PRS-4B125 (PRS-4B125-EU)

• Mains Power Supply: 115/230 VAC ±10%, 50/60 Hz

• Power Consumption (AC): 395 W (Maximum), 62 W (Idle), 16 W (Standby)

• Battery Power Supply: 48 VDC (-10% to +20%)

• Power Consumption (48 VDC): 375 W (Maximum), 48 W (Idle), 9 W (Standby)

• Performance: Rated Output Power: 4 x 125 W | Frequency Response: 60 Hz to 19 kHz (-3 dB) | Distortion: <0.3% (1 kHz at 50% rated power) | S/N Ratio: >85 dB with pilot tone off

• Line Inputs: Symmetrical local audio input (0 dBV) with rear-panel rotary volume control per channel

• Loudspeaker Outputs: Two loudspeaker output screw terminals per channel (Supports 70V and 100V lines, Group A and Group B)

• Physical Dimensions: 88 x 483 x 400 mm (3.5 x 19 x 15.7 in) for 19″ rack use with brackets

• Mounting & Color: 19″ rack mount | Color: Charcoal with silver

• Weight: 15 kg (33.4 lbs)

• Operating Temperature: -5 ºC to +55 ºC (+23 ºF to +131 ºF)

Ideal Applications

• Praesideo Public Address and Emergency Sound Systems

• IEC 60849 / BS 5839-8 Certified Voice Alarm Networks

• Large Commercial Buildings, Airports, and Transportation Terminals

• Multi-Zone Corporate Facilities and Industrial Complexes

Conclusion

The Bosch PRS-4B125-EU 4x125W Basic Power Amplifier provides a reliable audio solution. Because it combines high-efficiency Class-D amplification with dual power support, it excels in emergency broadcasting. Therefore, it provides dependable multi-zone audio distribution for Praesideo networks.
