Bosch Rexroth Hydraulics Analog Amplifier R902091800 Price in Bangladesh

Description

Product Name: Bosch Rexroth Hydraulics Analog Amplifier R902091800 Price in Bangladesh

Manufacturer: Bosch Rexroth

Product Overview

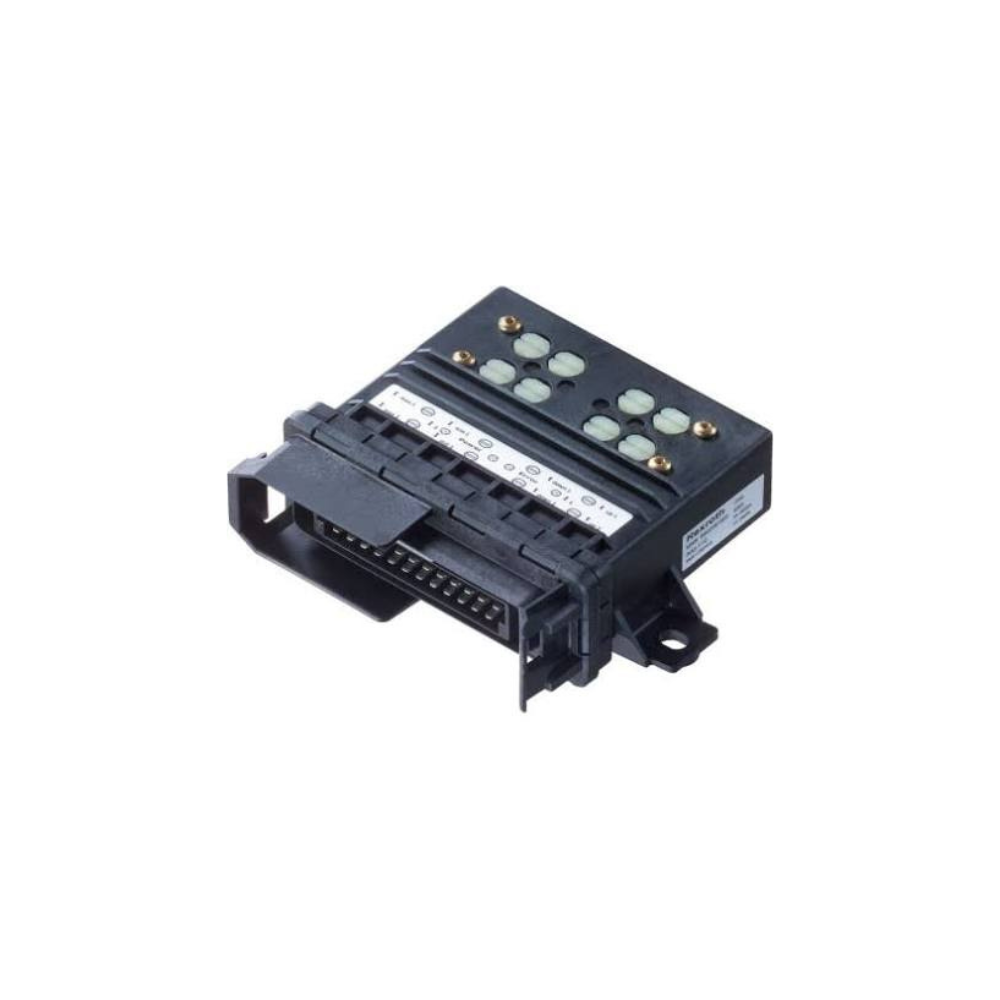

The Bosch Rexroth R902091800 (RA2-1) is an analog amplifier designed to actuate up to two proportional solenoids or two individual devices independently. It processes a specified control voltage input variable to provide a regulated electric current output for proportional solenoids. Furthermore, it incorporates adjustable time ramp functions ranging from 100 ms to 10 s to adapt output current changes smoothly. Additionally, it features comprehensive error detection, LED status indicators, and an IP65 protection rating when installed with a mating connector.

Key Features and Benefits

• Dual Proportional Output Control: Actuates up to two proportional solenoids or independent devices with separately adjustable minimum and maximum current limits via trimming potentiometers.

• Adjustable Time Ramps: Includes integrated time ramp functions with an adjustment range from 100 ms to 10 s for smooth output current adaptation.

• Robust Environmental Protection: Built in a plastic injection molding PA66 GF 35 case with IP65 weather resistance, shock resistance, and salt spray protection.

• Comprehensive Error Detection: Monitors power supply undervoltage and detects potentiometer wire breaks or short circuits.

• Additional Switching Capabilities: Provides a 1 A MOSFET switch output alongside dual PWM proportional solenoid outputs.

Technical Specifications

• Product Name: Bosch Rexroth Hydraulics Analog Amplifier

• Model / Part Number: R902091800 (RA2-1)

• Nominal Voltage: 12 and 24 V (Permissible supply range: 10 to 32 V)

• Current Consumption: 150 mA without load | Max. 6 A with load

• Proportional Solenoid Outputs: 2 x PWM outputs (Current range: 0 to 2.3 A; Pulsation frequency: 100, 200, or 350 Hz)

• Switch Output: 1 x MOSFET output (Max. 1 A)

• Time Ramp Range: 100 ms to 10 s

• Physical Dimensions: Length: 108 mm | Width: 135 mm | Height: 42 mm

• Net Weight: Approx. 0.3 kg

• Case Material & Protection: Plastic injection molding PA66 GF 35 | IP65 (with installed mating connector)

• Operating Temperature: -40 °C to +85 °C case temperature

Ideal Applications

• Industrial Hydraulics and Proportional Valve Control

• Axial Piston Units and Mobile Hydraulics

• Factory Automation and Servo-Hydraulic Machinery

• Fluid Power System Retrofitting

Conclusion

The Bosch Rexroth R902091800 Analog Amplifier delivers precise control for dual proportional solenoids in hydraulic systems. Because it combines wide operating temperature limits, IP65 protection, and flexible time ramp adjustments, it ensures reliable performance in demanding industrial environments.
