Description

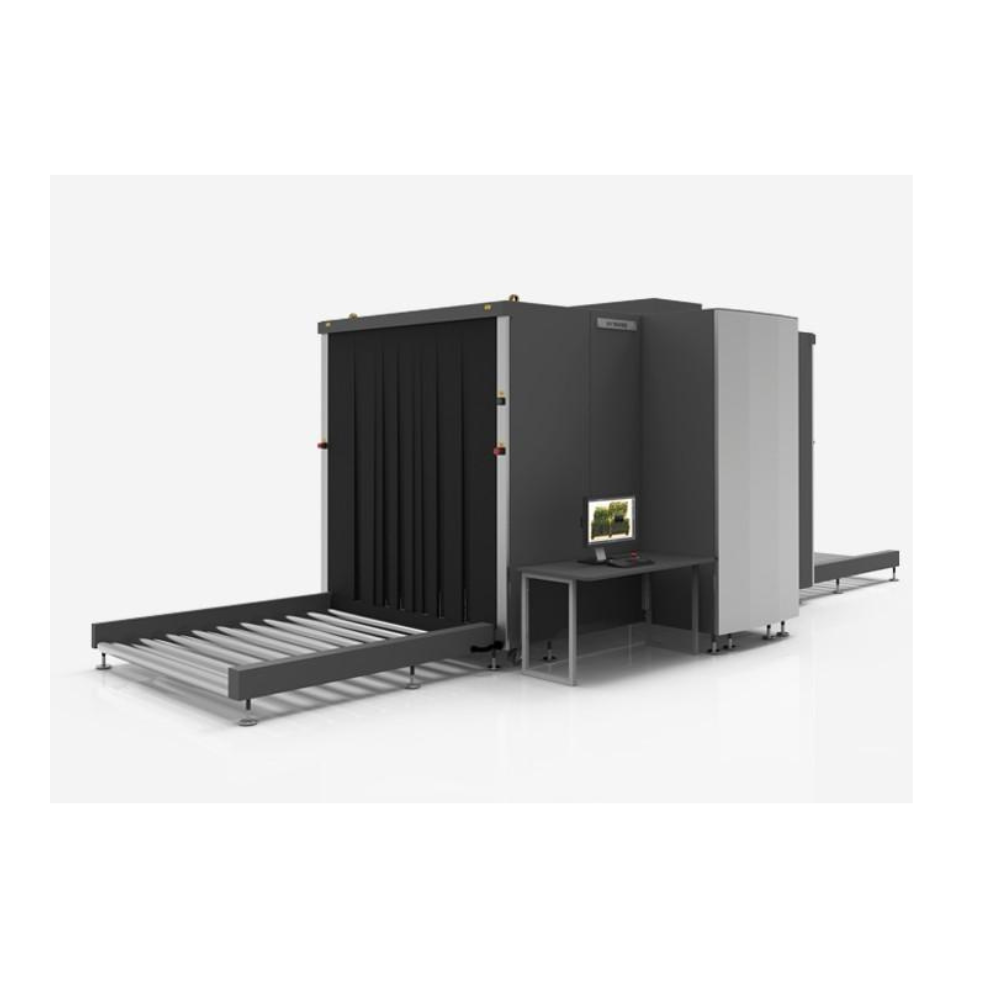

Product Name: BV 160180 X-Ray Cargo and Baggage Scanner

Manufacturer: LINEV Systems

Country of Origin: Germany / Belarus

Product Description

The LINEV Systems BV 160180 is a heavy-duty, high-performance X-ray inspection system engineered explicitly for the screening of mid-size cargo, heavy baggage, and large, bulky packages. This robust system is specifically designed to meet the intensive security protocols required at critical logistics hubs, seaport terminals, customs warehouses, and high-security installations. Featuring a spacious 1750 mm × 1850 mm tunnel dimension, it smoothly handles oversized items and heavy freight. Consequently, it serves as an ideal solution for facilities requiring thorough security screening for large-volume goods without creating operational delays.

Additionally, the scanner integrates an ultra-robust conveyor system engineered to support an exceptional maximum distributed load capacity of 3000 kg. Despite its heavy-duty handling capabilities, the conveyor maintains a steady belt speed of 0.22 m/s, facilitating consistent package throughput while keeping inspection standards high. The system features a low conveyor height of 320 mm, which simplifies the physical loading and unloading of heavy cargo and pallets. Furthermore, this durable mechanical architecture minimizes operational downtime during peak cargo handling hours, thereby improving overall workflow efficiency across busy transit checkpoints and warehouse entrances.

Furthermore, the system utilizes a powerful 200kV X-ray generator paired with an advanced detector array to capture high-resolution deep-penetration X-ray images from a diagonally downward beam direction. Security personnel can interact with the screening interface seamlessly through a comprehensive suite of operator software features. This configuration provides advanced contrast adjustment, material discrimination based on atomic numbers, and comprehensive imaging archives. As a result, it assists operators in identifying hidden hazards, weapons, or contraband during continuous screening procedures.

Key Features

• Heavy-Duty Cargo Capacity: Designed with an exceptionally rugged conveyor that supports up to 3000 kg of distributed load, making it suitable for pallets, heavy freight, and large crates.

• Low Conveyor Design: Featuring a low conveyor height of 320 mm, the system minimizes physical strain during the loading and unloading process of heavy packages.

• Advanced Image Manipulation Suite: The comprehensive operator software enables advanced functions including contrast adjustment of strongly absorbing objects, image inversion, gamma correction, and up to 96x zoom for close inspection of dense areas.

• Precise Material Discrimination: The integrated software allows operators to isolate and color-code substances within selected atomic number ranges, specifically highlighting organic objects with atomic numbers equal to 7, 8, and 9 to assist in threat analysis.

• Deep Steel Penetration & Resolution: Driven by a powerful 200kV generator, the system achieves a 36 AWG (0.13 mm) copper wire detectability and a guaranteed 44 mm steel penetration, allowing operators to see through thick, high-density structures.

• Automated Management & Reporting: Features an automated image archiving system (JPEG format), data transfer capabilities to external storage, baggage counters, and automatic service report preparation to streamline administrative workflows.

Technical Specifications

• Product Name: BV 160180

• Manufacturer: LINEV Systems

• Country of Origin: Germany / Belarus

• Tunnel Dimensions (W × H): 1750 mm × 1850 mm

• X-Ray Generator Voltage: 200 kV

• Beam Direction: Diagonally downward

• Wire Detectability: 36 AWG (0.13 mm Copper Wire)

• Steel Penetration: 44 mm Steel Guaranteed (46 mm Typical)

• Spatial Resolution: 1.5 line pairs per mm (scanning direction) / 1.5 line pairs per mm (along detector)

• Conveyor Speed: 0.22 ± 0.03 m/s

• Conveyor Height: 320 mm

• Maximum Conveyor Capacity: 3000 kg (Distributed Load)

• Overall Dimensions (L × W × H): 6800 mm × 2750 mm × 2400 mm

• System Weight: Max 3000 kg

• Power Consumption: Max 3.0 kVA

• Line Voltage: 230 VAC ± 10% / 120 VAC ± 5% (50/60 Hz)

• Operating Temperature / Humidity: 0°C to +40°C / Up to 90% (non-condensing)

• Application Areas: Cargo terminals, seaports, customs checkpoints, land border crossings, logistics warehouses, industrial facilities, and critical infrastructure sites.

Conclusion

For large logistics terminals and international trade entry points in Bangladesh, managing heavy cargo screening without creating bottlenecks is a key challenge. Fortunately, the LINEV Systems BV 160180 X-Ray Scanner addresses these demanding requirements through high-voltage imaging and heavy-duty load capacity.

Thus, its precise 200kV generator and advanced material discrimination software assist operators in identifying weapons, explosives, knives, and drugs efficiently. Therefore, it makes an ideal choice for land ports, seaport customs stations, Dhaka air cargo complexes, and warehouses.

In addition, its expansive tunnel dimensions and robust 3000 kg conveyor capacity facilitate reliable pallet screening in demanding environments. These specialized configurations successfully streamline cargo workflows and manage high-volume throughput effectively. Consequently, the LINEV Systems BV 160180 stands out as a highly dependable, high-performance asset for critical checkpoints in Bangladesh.

For pricing, availability, and technical consultation regarding the BV 160180 X-Ray Cargo and Baggage Scanner in Bangladesh, please contact us.
