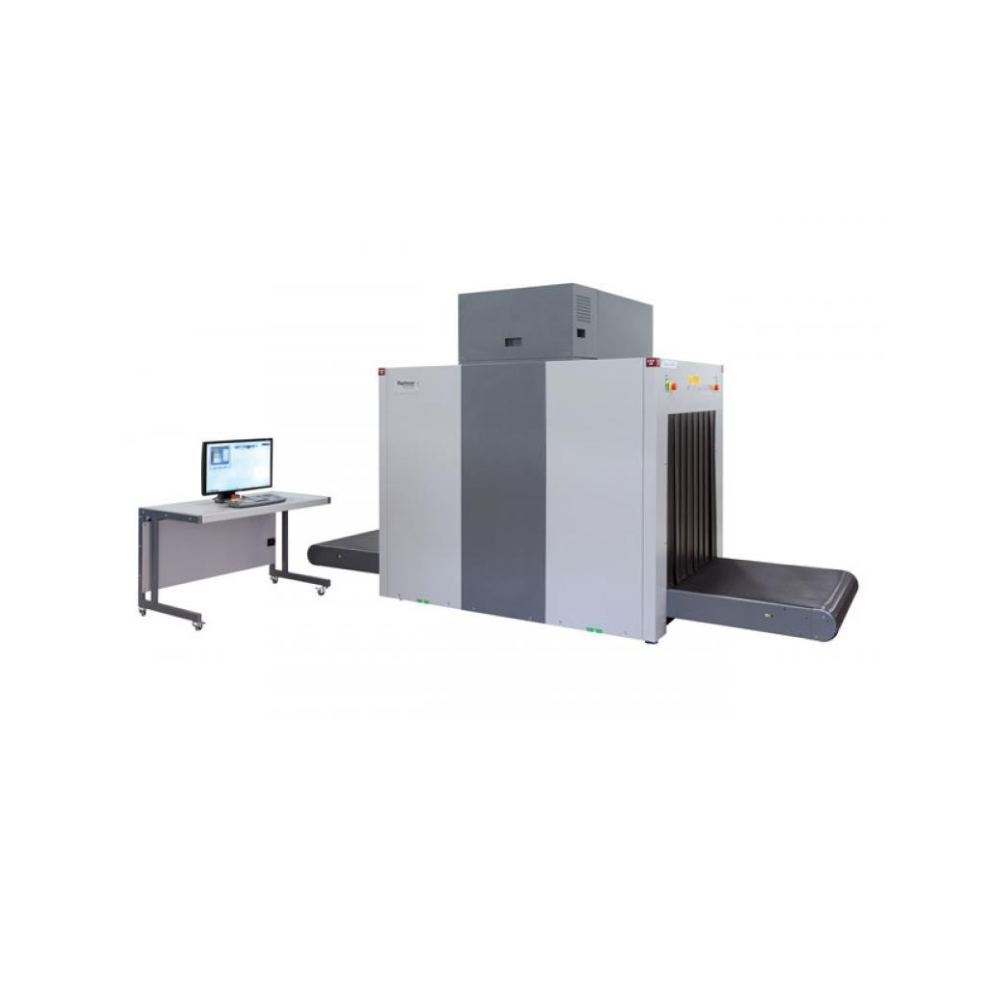

Rapiscan 628XR Large Parcel and Small Cargo X-Ray Scanner

Description

Product Name: Rapiscan 628XR Large Parcel and Small Cargo X-Ray Scanner

Manufacturer: Rapiscan Systems

Country of Origin: USA

Product Description

The Rapiscan 628XR is a high-performance X-ray screening system designed for large baggage, oversized parcels, and small cargo. It features a massive tunnel opening and a low-profile conveyor system. Therefore, it is the ideal solution for environments that require easy loading and unloading of heavy items. This advanced scanner is specifically engineered for aviation check-in, air cargo facilities, and customs inspection points. By combining a 1,000 mm by 1,000 mm tunnel with rugged engineering, the 628XR ensures a seamless and highly efficient security workflow.

Key Features

• Large Tunnel & Easy Loading: The system offers a substantial 1,000 mm wide by 1,000 mm high tunnel opening. In addition, it is built with a low conveyor height. Consequently, operators can handle small cargo and large parcels with minimal physical effort.

• Explosives and Narcotics Detection: This model features advanced “Target” and “NARCScan” algorithms. These tools are designed to assist operators in the real-time detection of a wide range of explosives and narcotics. As a result, they assist operators by highlighting potential threats on the X-ray image for review.

• High Throughput Efficiency: The system is equipped with feature-rich software including over 13 image processing tools. Moreover, the detection alert functions allow operators to search for contraband more accurately. Thus, it supports efficient and high-throughput screening operations in busy logistics hubs.

• Global Regulatory Compliance: The 628XR is in full compliance with European Union regulations (EC) No. 300/2008 and (EU) No. 2015/1998. Furthermore, it is approved and included in the Transport Canada (TC) Air Cargo Security Program. Therefore, it meets the most stringent international aviation security standards.

• Network Enabled Architecture: The 628XR is network-ready, allowing for seamless integration into existing security infrastructures. For this reason, data management and remote monitoring become significantly easier and more cost-effective.

Technical Specifications

• Product Name: Rapiscan 628XR

• Manufacturer: Rapiscan Systems

• Device Type: Large Parcel & Small Cargo X-ray Screening System

• Tunnel Dimensions: 1,000 mm (W) × 1,000 mm (H) / 39.4 in (W) × 39.4 in (H)

• System Length: 3,798 mm (149.5 in.)

• System Width: 1,410 mm (55.5 in.)

• System Height: 2,124 mm (83.6 in.)

• Detection Technology: Target (Explosives) and NARCScan (Narcotics) Alert Algorithms

• Image Processing: 13+ specialized image processing tools

• Compliance: EU Regulations (EC) No. 300/2008, (EU) No. 2015/1998, Transport Canada (TC) Approved

• Application Areas: Air cargo terminals, aviation check-in, customs checkpoints, large parcel distribution centers

Conclusion

Implementing a compliant screening infrastructure requires technology that balances speed with absolute security verification. By providing a massive 1000 x 1000 mm tunnel and a low conveyor, this system removes operational bottlenecks for heavy cargo. For example, operators no longer struggle with the manual handling of oversized baggage. Consequently, this improves inspection efficiency, operator workflow, and overall facility throughput. Furthermore, the system combines advanced security engineering with regulatory compliance to ensure reliable cargo screening. Thus, it prevents unwanted delays in fast-paced logistics environments across Bangladesh.
