: C-TEC CA470 CAST Manual Call Point Price in Bangladesh

Description

Product name: : C-TEC CA470 CAST Manual Call Point Price in Bangladesh

Product Overview

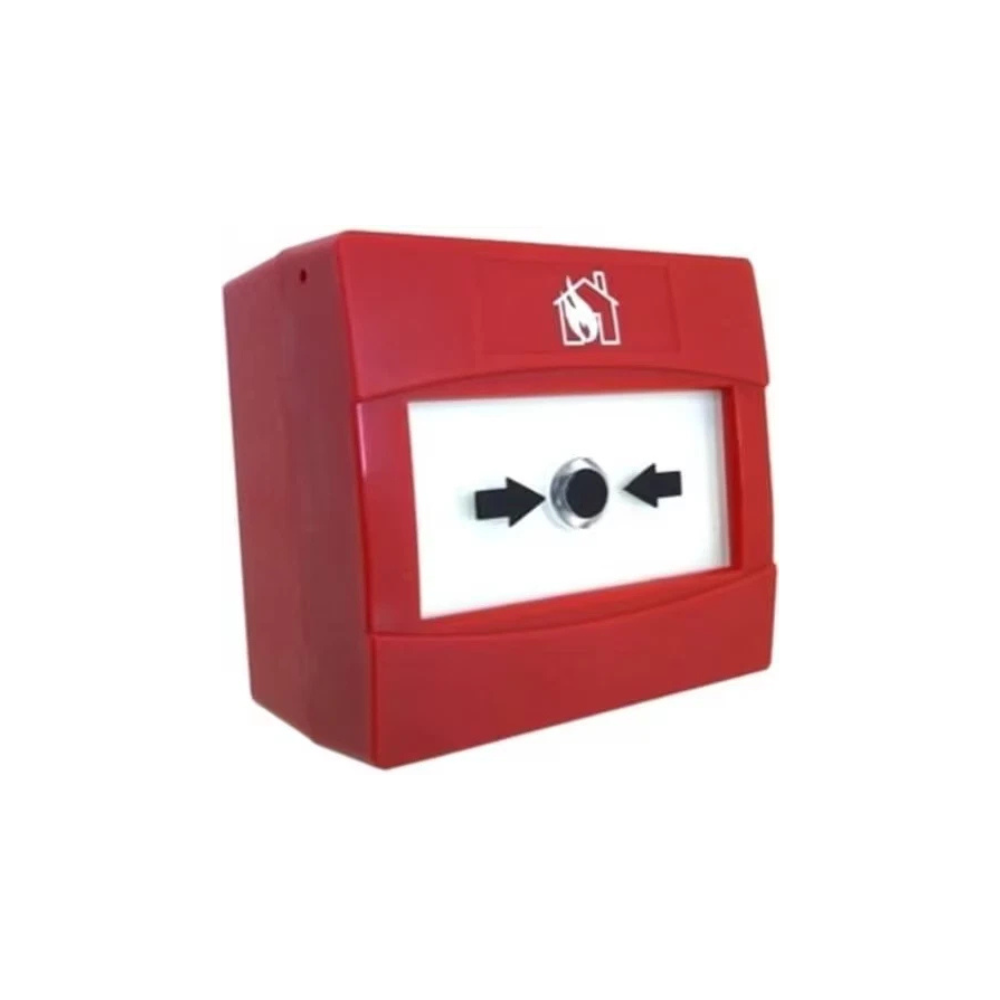

The C-TEC CA470 is a red manual call point for C-TEC XFP and ZFP CAST addressable fire alarm panels. CAST stands for C-TEC Addressable System Technology, which is C-TEC’s own communication protocol. In addition, the CA470 has an onboard short-circuit loop isolator.

You can mount it on the surface or flush. C-TEC supplies a surface back box and a flush mount adaptor plate for this. Moreover, the resettable element mimics the feel of breaking glass. When someone activates it, a red LED alarm ring lights the call point face.

Key Features

• Red manual call point for XFP and ZFP CAST addressable fire panels
• LPCB certified to EN54 Parts 11 and 17
• Kiwa Telefication and DBI certified to EN54-13
• Onboard short-circuit loop isolator
• Surface or flush mounting, with surface back box and flush mount adaptor plate
• Smooth-action resettable element
• Red LED alarm ring: steady red when activated, flashing red when polling
• Photoluminescent operating window visible for up to 5 minutes
• Supplied with reset/back box removal key and “Not in Use” label
• 5 mA typical alarm current and 370 µA typical quiescent current

Technical Specifications

Brand: C-TEC
Model: CA470
Type: CAST manual call point, universal mounting
Color: Red
Compatibility: C-TEC XFP and ZFP CAST protocol addressable fire panels
Approvals: LPCB certified to EN54 Parts 11 and 17; Kiwa Telefication and DBI certified to EN54-13; SBSC certified to the relevant parts of EN54
Connections: Loop IN, Loop OUT (x2)
Origin: Designed and manufactured in the UK (per C-TEC)

Supply/operating voltage: 22 to 40 V DC
Quiescent current: 370 µA typical at 22 to 40 V DC
Alarm current: 5 mA typical at 22 to 40 V DC
Indicators: Red alarm ring, lit steady red when activated and flashing red when polling
Isolator: Onboard short-circuit loop isolator

Dimensions: 87 W × 88 H × 62 D mm (includes back box)
Weight: 180 g
Construction and finish: Red ABS polycarbonate; glass fibre window
IP rating: IP42
Operating temperature: Minus 10°C to 55°C
Other versions: IP67 version CA47067; yellow, green, blue and white versions also available

Applications

Use the CA470 for manual alarm initiation on C-TEC CAST addressable loops. If you need a higher ingress rating, choose the IP67 version, CA47067. However, always confirm panel compatibility before you order.

Conclusion

The C-TEC CA470 gives a certified, resettable manual call point for CAST addressable systems. Its onboard isolator and flexible mounting suit new installations. Therefore, it fits any XFP or ZFP CAST loop that needs a red call point.
