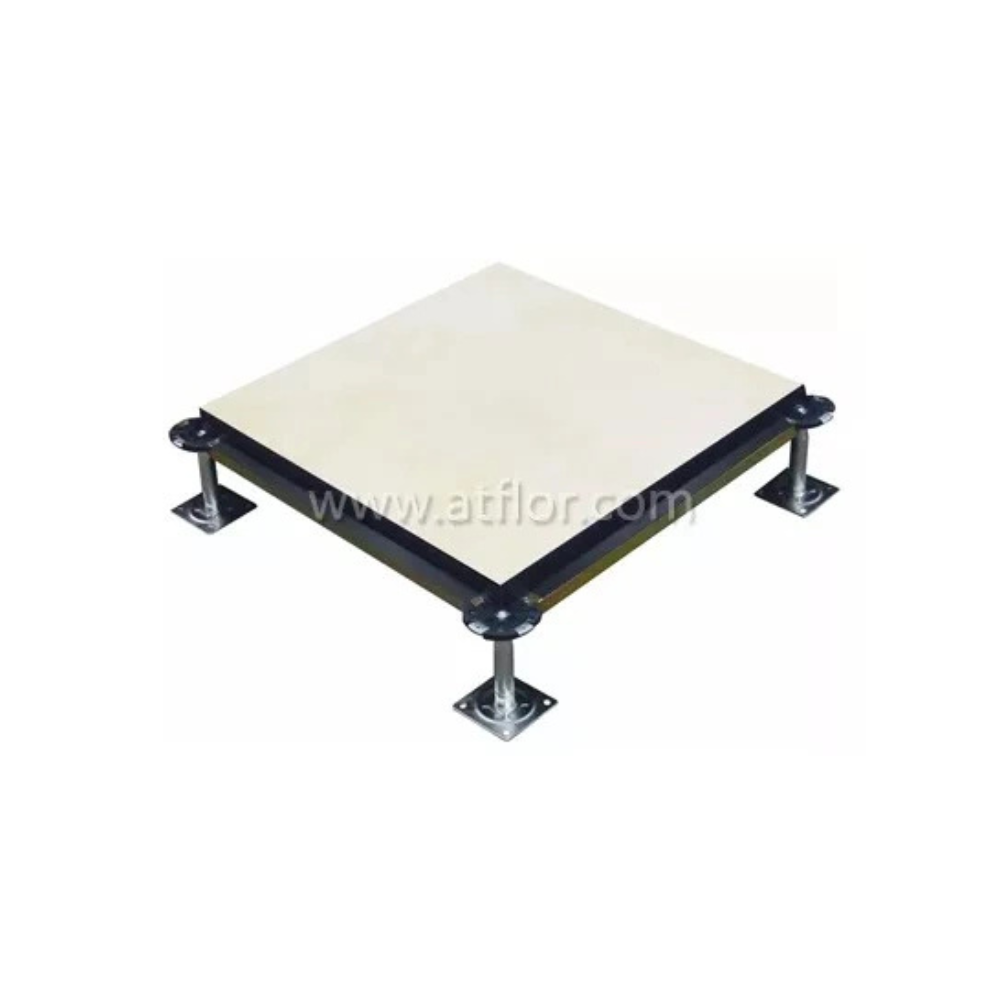

Product Name: Ceramic Coated Wood Core Raised Access Floor System in Bangladesh
Manufacturer: Atflor
Product Overview
The Ceramic Coated Wood Core Raised Access Floor System (Product Types: FS662, FS800, FS1000, FS1250, and FS1500) features a high-density particle board core with PVC/ABS edge trim and soundproof properties. Designed to accommodate ceramic or granite top tiles, it delivers high dimensional precision, strong structural loading ability, and shockproof performance, providing an adaptable raised-floor solution for computer rooms, control rooms, and modern professional environments.
Key Features
-
Particle Board Core Construction: Features a high-density particle board core with PVC/ABS-covered four edges and a steel or aluminum bottom plate. The panel size is 600 × 600 × 40 mm, with ceramic or granite top tile compatibility.
-
Surface Finish Compatibility: Designed to accommodate ceramic or granite top tiles, providing an elegant finished floor appearance
-
Adjustable Pedestal System: Utilizes a die-casting steel structure pedestal with a top plastic gasket and adjustable height configurations ranging from 70mm to 1500mm, featuring specific tube diameters matched to height ranges, with or without square tube stringers for system stability.
-
Structural & Load Performance: Features specified fire performance along with comprehensive structural ratings, including concentrated load, impact load, ultimate load, uniform load, and rolling load performance across various model tiers.
-
Access & Wiring Utility: Designed for assembly agility, providing ample space for large wire and cable management underneath the raised floor infrastructure.
Characteristic Specifications
-
Panel Composition: High-density particle board core, PVC/ABS edge trim, steel/aluminium bottom plate, and ceramic or granite top tiles.
-
Accessory Setup: Die-casting steel pedestal structure with plastic gasket and square tube stringer options ($535 \times 20 \times 30 mm$).
-
Pedestal Height & Tube Specifications:
-
Finished Floor Height $\le 600 mm$: $\varnothing 25 mm$ tube diameter (adjustment $+20 mm$, $-10 mm$)
-
Finished Floor Height $700\text{–}900 mm$: $\varnothing 32 mm$ tube diameter (adjustment $+20 mm$, $-10 mm$)
-
Finished Floor Height $1000\text{–}1500 mm$: $\varnothing 42 mm$ tube diameter (adjustment $+20 mm$, $-10 mm$)
-
Custom height configurations available upon request.
-
-
Application Scope: Suited for computer rooms, network service engine rooms, control rooms, monitoring cabins, and top-grade office spaces requiring reliable underfloor cable management and raised-floor infrastructure.
Technical Specification
| Component / Parameter | FS662 | FS800 | FS1000 | FS1250 | FS1500 |
| Panel Size | $600 \times 600 \times 40 mm$ | $600 \times 600 \times 40 mm$ | $600 \times 600 \times 40 mm$ | $600 \times 600 \times 40 mm$ | $600 \times 600 \times 40 mm$ |
| Fire Performance | Class A | Class A | Class A | Class A | Class A |
| Concentrated Load | $\ge 662$ | $\ge 800$ | $\ge 1000$ | $\ge 1250$ | $\ge 1500$ |
| Impact Load (N) | $\ge 2950$ | $\ge 3560$ | $\ge 4450$ | $\ge 5560$ | $\ge 6660$ |
| Ultimate Load (N) | $\ge 301$ | $\ge 363$ | $\ge 450$ | $\ge 567$ | $\ge 680$ |
| Uniform Load (N/m²) | $\ge 445$ | $\ge 536$ | $\ge 670$ | $\ge 780$ | $\ge 1005$ |
| Rolling Load – 10 times (N) | $\ge 8850$ | $\ge 10680$ | $\ge 13350$ | $\ge 16680$ | $\ge 19980$ |
| Rolling Load – 100,000 times (N) | $\ge 12500$ | $\ge 16100$ | $\ge 23000$ | $\ge 33000$ | $\ge 34500$ |
| LBNKG (10 times / 100,000 times) | 2946 / 2356 | 3560 / 2670 | 4450 / 3560 | 5560 / 4450 | 6675 / 5340 |
Conclusion
The Ceramic Coated Wood Core Raised Access Floor System combines high-density particle board construction with ceramic or granite tile surface options, specified fire performance, and comprehensive load parameters across the FS662 to FS1500 series. Featuring an adjustable steel pedestal structure and extensive wire management capacity, it provides a reliable raised-floor solution for computer rooms, network service engine rooms, control rooms, monitoring cabins, and top-grade office spaces.
