Description

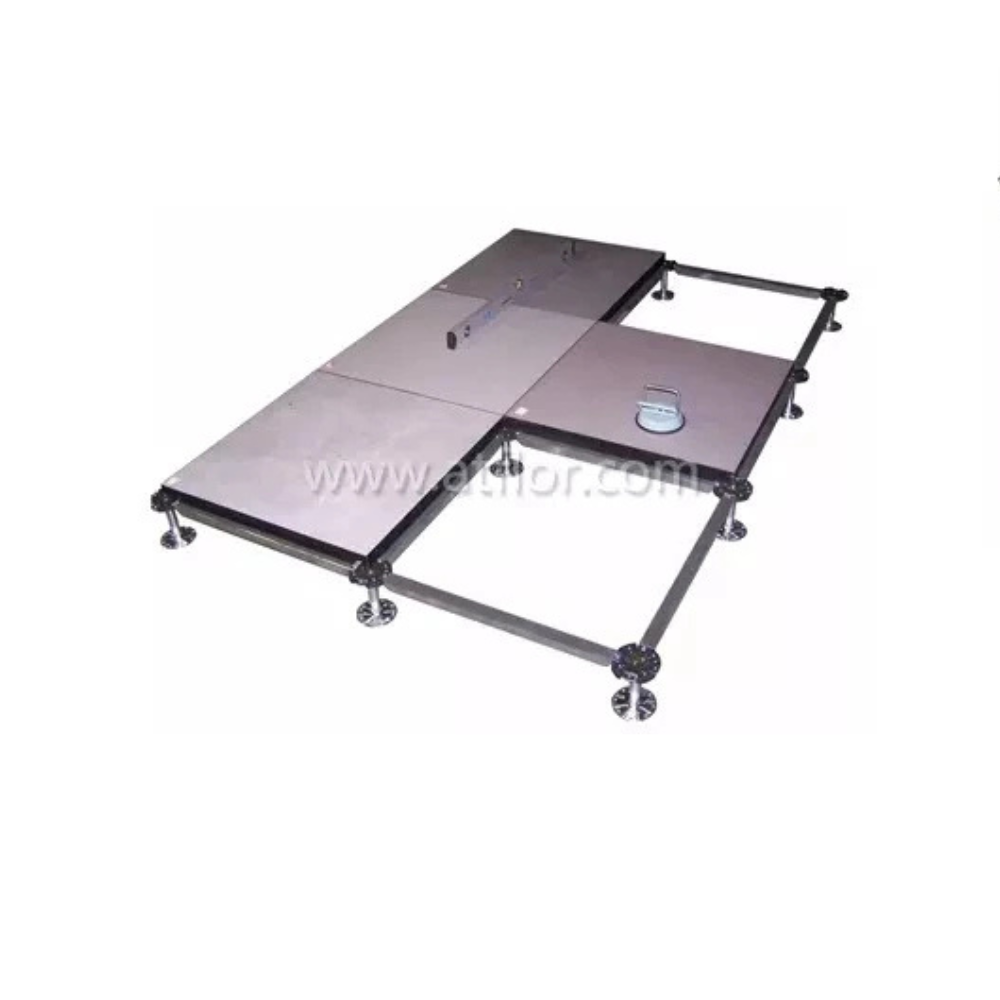

Product Name: Ceramic (Granite) Calcium Sulphate Raised Access Floor System in Bangladesh
Manufacturer: XL
Product Overview
The Ceramic (Granite) Calcium Sulphate Raised Access Floor System features a calcium sulphate board designed with environment-friendly material characteristics, PVC/ABS-covered edges, steel or aluminum bottom plates, and support for compatible finishes. Delivering anti-static properties, fire-resistant performance, soundproofing, dustproofing, and electromagnetic shielding, this system maintains stable performance under varying humidity and temperature conditions.
The product range spans from the FS800 to FS1500 product types, utilizing $600 \times 600$ mm panels.
Key Features
-
Environmental & Protective Properties: Prevents static effectively while offering fire-resistant performance, antiskid, soundproof, dustproof, electromagnetic shielding, and environmentally friendly material characteristics.
-
Structural Durability: Features strong wear resistance with resistance to bubbling and delamination, high dimensional precision, and strong shockproof performance.
-
Surface Versatility: Panels feature calcium sulphate boards with PVC/ABS-covered four edges and steel/aluminum bottom plates, designed to support compatible top tile finishes as specified by the product configuration.
-
Robust Support Framework: Integrates die-casting steel structure pedestals with plastic top gaskets and optional square tube stringers for stable system connectivity.
-
Height Adjustability & Cabling: Accommodates finished floor heights (FFH) ranging from 70 mm to 1500 mm with flexible assembly, large wire capacity, and good exchangeability.
Characteristic Specifications
-
Panel Construction: Calcium sulphate board with PVC/ABS-covered edges and steel/aluminum bottom plate construction as specified by the product configuration. Panel thickness is specified by the manufacturer as available from 35 mm to 48 mm. The supplied product information also references a 30 mm calcium sulphate board.
-
Pedestal & Stringer Construction: Die-casting steel structure pedestal with a plastic gasket on top, featuring adjustable heights from 70 mm to 1500 mm, utilizing standard square tube stringers ($535 \times 20 \times 30$ mm).
-
Application Scope: Ideal for banks, military facilities, high-grade computer rooms, top-grade offices, and other environments requiring high loading capacity.
Technical Specification
| International Type | Size (mm) | Fire Performance | Manufacturer-Specified Load Values |
| FS800 | $600 \times 600$ | Fire-resistant | $\ge 800$; $\ge 3,350$ N; $\ge 363$; $\ge 536$ N; $\ge 11,250$ N; $\ge 16,100$ N/m²; 3,560; 2,670 |
| FS1000 | $600 \times 600$ | Fire-resistant | $\ge 1,000$; $\ge 4,550$ N; $\ge 450$; $\ge 670$ N; $\ge 13,350$ N; $\ge 23,000$ N/m²; 4,450; 3,560 |
| FS1250 | $600 \times 600$ | Fire-resistant | $\ge 1,250$; $\ge 5,560$ N; $\ge 567$; $\ge 780$ N; $\ge 16,680$ N; $\ge 33,000$ N/m²; 5,560; 4,450 |
| FS1500 | $600 \times 600$ | Fire-resistant | $\ge 1,500$; $\ge 6,675$ N; $\ge 670$; $\ge 1,005$ N; $\ge 19,892$ N; $\ge 34,500$ N/m²; 6,675; 5,340 |
Note: Load values are presented according to the manufacturer’s supplied specification. Unit/column interpretation should be verified against the original manufacturer datasheet where required.
Panel thickness available from 35 mm to 48 mm.
Standard Pedestal and Stringer Specifications
-
Finished Floor Height (FFH) $\le 600$ mm: Tube Diameter 25 mm, Adjustment +25 / -25 mm
-
FFH 700 ~ 900 mm: Tube Diameter 32 mm, Adjustment +25 / -25 mm
-
FFH 1000 ~ 1500 mm: Tube Diameter 42 mm, Adjustment +25 / -25 mm
-
Note: Other heights can be customized.
-
Standard Stringer Size: $535 \times 20 \times 30$ mm
Conclusion
The Ceramic (Granite) Calcium Sulphate Raised Access Floor System delivers high load-bearing performance from FS800 to FS1500, combined with stable performance under varying humidity and temperature conditions, fire-resistant capabilities, and an elegant finish suitable for high-grade interior applications.
