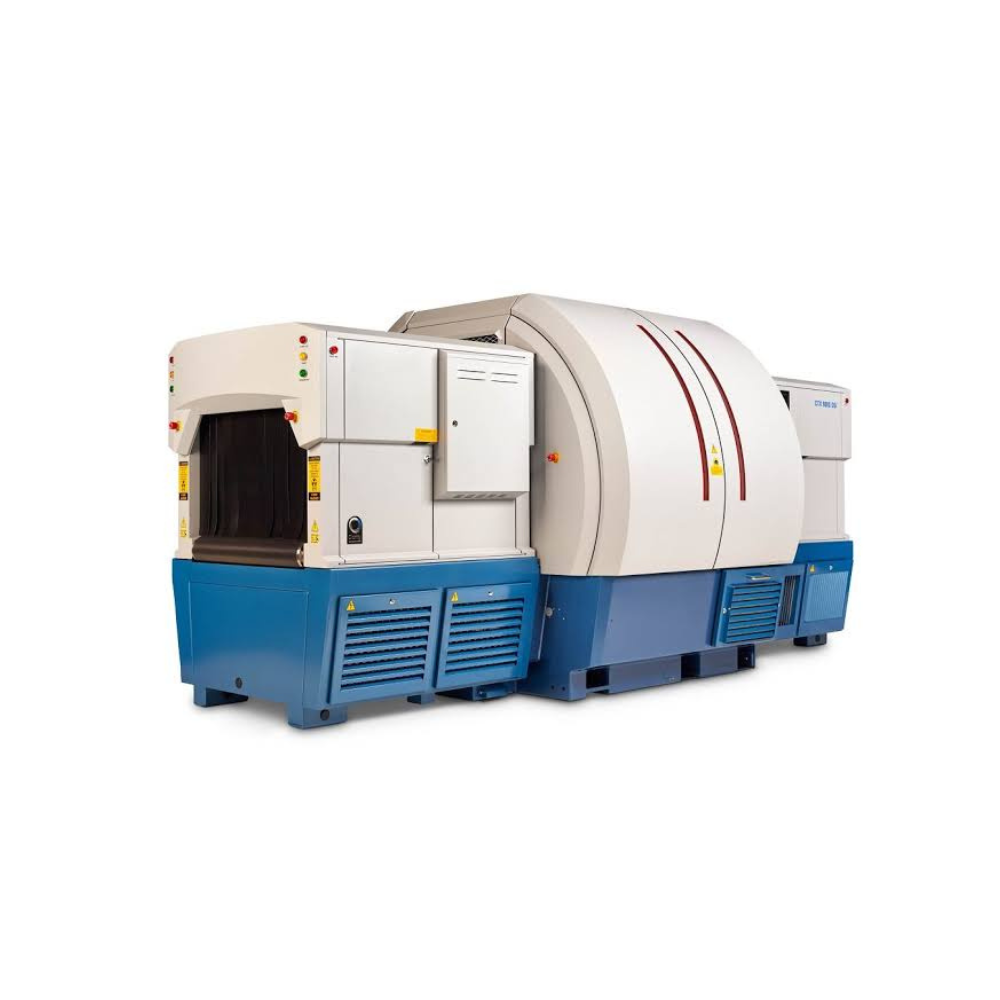

Name: CTX 9800 DSi High Speed CT Explosives Detection System (EDS)
SKU: 2087
Availability: InStock

Description

Product Name: CTX 9800 DSi High Speed CT Explosives Detection System (EDS)

Manufacturer: Smiths Detection

Country of Origin: UK / USA

Product Description

The CTX 9800 DSi High-Speed Checked Baggage Explosive Detection System (EDS) is an elite, top-tier security screening solution. It is specifically designed for high-volume international airports and large cargo hubs. Furthermore, by utilizing advanced dual-energy computed tomography (CT) technology, this powerful system delivers exceptional material discrimination alongside industry-leading throughput speed.

The CTX 9800 DSi represents the ultimate standard in high-capacity aviation checkpoint security. Manufactured by a global leader in screening technology, this robust platform is engineered to handle massive passenger loads seamlessly.

Most importantly, the unit features a proprietary single X-ray source combined with a dual-energy design. This innovative setup allows it to provide high-resolution 3D images along with 2D and 3D organic/inorganic material discrimination. Consequently, these imaging tools enhance the analysis of details and specific structures of suspected threats. This allows operators to make efficient security decisions on all checked bags and cargo packages. Built on a scalable platform with future upgrade capabilities, it can be fully integrated with any existing baggage-handling system (BHS). Therefore, it serves as the definitive choice for large airports demanding uncompromised safety and speed.

Key Features

High-Speed Throughput Capacity By supporting an impressive belt speed of 0.3m/sec to 0.5m/sec, the system effortlessly processes up to 1,800 Bags Per Hour (BPH). Therefore, it eliminates bottlenecks at peak operational times.
Oversized Baggage Accommodation The system accepts large and elongated bags of up to 2.5 meters in length. As a result, it drastically reduces the need for manual, separate processing of oversized luggage.
Single Conveyor & X-Ray Efficiency Utilizing a single conveyor belt minimizes bag slippage during the scanning process. Additionally, the single X-ray source design greatly reduces system down-time caused by X-ray-tube failures.
Instant Operational Decisions The advanced software ensures that both the Level-1 automated decision and the Level-2 operator image are completed before the bag even exits the machine. Thus, it maximizes workflow efficiency.
Customized Intelligent Networking The system offers specialized networking solutions that link multiple CTX EDS units together. This allows for efficient image distribution, real-time system monitoring, and centralized control among operators.

Technical Specifications

Product Name: CTX 9800 DSi

Manufacturer: Smiths Detection

Country of Origin: UK / USA

Device Type: High-Speed Checked Baggage Explosive Detection System (EDS)

Technology: Dual-Energy Computed Tomography (CT) with a Single X-Ray Source

Imaging Capabilities: High-Resolution 3D Imaging, 2D/3D Organic & Inorganic Material Discrimination

System Dimensions (W x H x L): 2400 × 2177 × 4803 mm

Tunnel Structure: Rectangular

Tunnel Opening (Max. Width): 1020 mm (40.2 in) at conveyor edge

Conveyor Belt Speed: 0.3 m/sec – 0.5 m/sec

Throughput Capacity: Up to 1,800 Bags Per Hour (BPH)

Maximum Power Rating: 24 kVA

Application Areas: Mega international airports, high-volume aviation hubs, large logistics and cargo sorting centers

Conclusion

For facility managers and aviation authorities in Bangladesh, deploying a high-speed screening infrastructure is vital. It is all about striking the right equilibrium between massive throughput and rigorous security verification. Fortunately, the CTX 9800 DSi system redefines this balance by delivering elite CT-based threat detection at an incredible speed of up to 1,800 bags per hour. For example, it allows large-scale international airports to manage heavy passenger traffic without facing operational delays or long queues at checkpoints.

By streamlining these high-volume workflows, the system significantly mitigates congestion during peak travel hours. Consequently, this directly elevates both operator efficiency and the overall passenger experience. Furthermore, with its scalable architecture and customized networking capabilities, the CTX 9800 DSi offers a future-proof, highly reliable solution. Investing in this technology provides a critical strategic advantage. Thus, it ensures that major aviation and cargo hubs across Bangladesh remain resilient, compliant, and optimized for the demands of modern, high-volume travel.

Get instant stock availability and the best price for the CTX 9800 DSi High-Speed Checked Baggage Explosive Detection System in Bangladesh. Contact us today for official quotations, bulk pricing, and technical support.
