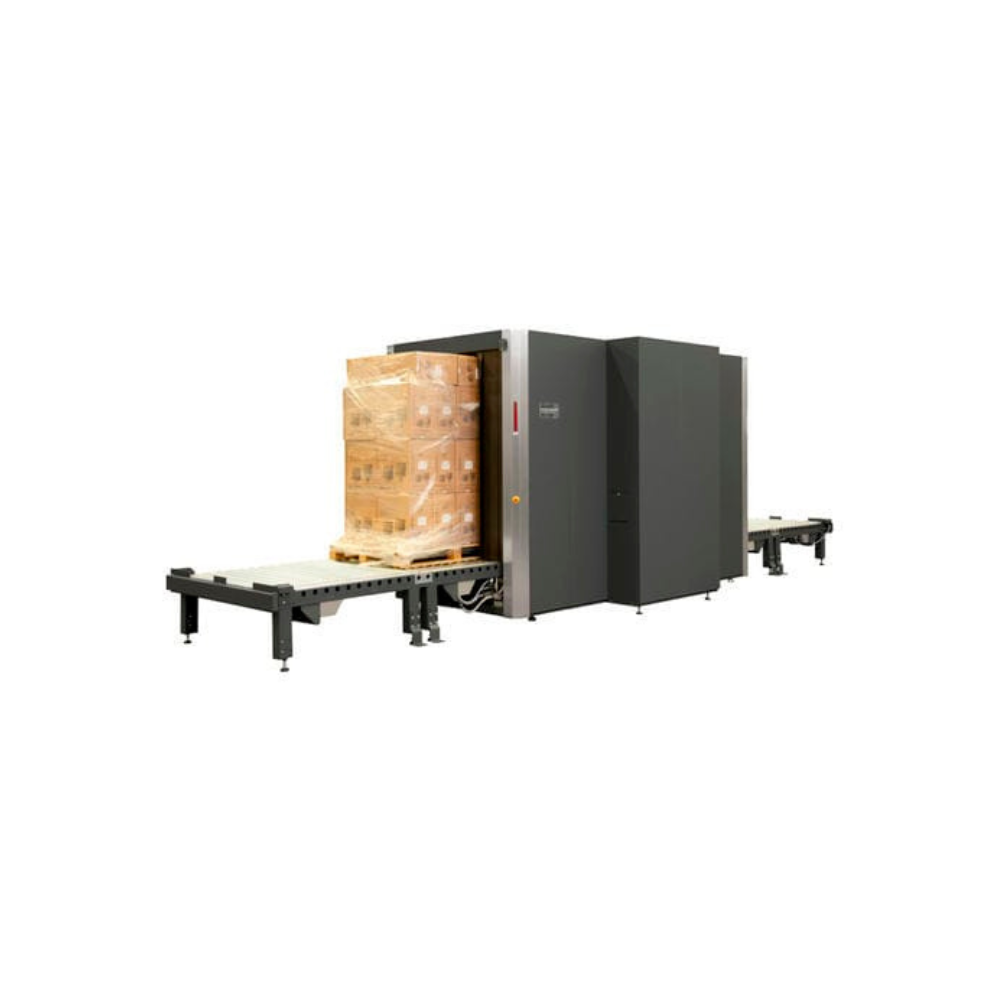

HI-SCAN 145180-2is Large Objects Dual-View X-Ray Scanner

Description

Product Name: HI-SCAN 145180-2is Large Objects Dual-View X-Ray Scanner

Manufacturer: Smiths Detection

Country of Origin: Germany

Product Description

The HI-SCAN 145180-2is is a high-performance, large-scale dual-view X-ray inspection system engineered by Heimann X-Ray Technology under Smiths Detection. Manufactured with precision German engineering, this advanced security scanner is purpose-built for checking heavy-duty air cargo, oversized freight, and palletized items. By delivering high-quality imaging and fast processing, it ensures seamless threat detection and optimal operational workflow. It is ideal for high-security and high-throughput environments like international airport cargo complexes, customs checkpoints, border control, and large parcel distribution hubs.

Key Features

• Advanced Dual-View Technology: The system features two powerful 160kV X-ray generators in a 90° opposition. Therefore, it provides both horizontal and vertical views simultaneously. This dual-view capability allows operators to inspect tightly packed objects from two perspectives in a single pass. As a result, it significantly shortens inspection times.

• Massive Tunnel Dimensions: The machine offers an extra-large tunnel size of 1450 mm width and 1800 mm height. For this reason, it is perfectly suited to accommodate and screen bulk air cargo. In addition, it easily handles items transported on standard Euro, British, or US pallets.

• Heavy-Duty Roller Conveyor: It is built with a rugged, small-pitch roller conveyor system. This conveyor handles a high load capacity of 1,000 kg/m. Moreover, it supports up to 5,000 kg when the weight is evenly distributed. Therefore, it ensures efficient manual handling and smooth system integration.

• TSA Compliance Ready: The system is designed to align with global security regulations. Specifically, it fully meets TSA requirements for a maximum skid size of 1.2 m × 1.2 m × 1.65 m. Consequently, it is an ideal choice for international transit screening.

• High Steel Penetration: The powerful X-ray beam effortlessly pierces through dense materials. With a typical steel penetration of 37 mm, it easily reveals hidden objects.

• HI-MAT Plus Material Discrimination: The scanner utilizes advanced material evaluation technology. Thus, it accurately differentiates between organic, inorganic, and metallic objects. This enables faster identification of suspicious materials for precise threat detection.

Technical Specifications

• Product Name: HI-SCAN 145180-2is

• Manufacturer: Smiths Detection (HEIMANN X-Ray Technology)

• Country of Origin: Germany

• Device Type: Large Objects Dual-View X-ray Inspection System

• X-Ray Generator: Dual 160kV generators in a 90° opposing beam system

• Maximum Object Size: 1,450 (W) × 1,800 (H) [mm] / 57.1 (W) × 70.9 (H) [in]

• System Dimensions: 5,545 (L) × 2,160 (W) × 2,545 (H) [mm] / 218.3 (L) × 85 (W) × 100.2 (H) [in]

• System Weight: Approx. 3,000 kg (6,600 lbs)

• Conveyor Load Capacity: 1,000 kg/m (Up to 5,000 kg evenly distributed)

• Steel Penetration: Typical 37 mm

• Material Discrimination: HI-MAT Plus Technology

• Compliance: Meets TSA requirements for max skid size (1.2 × 1.2 × 1.65 m)

• Application Areas: Air cargo terminals, customs, freight logistics centers, customs checkpoints

Conclusion

Implementing a compliant screening infrastructure requires technology that balances speed with absolute security verification. By providing two multi-dimensional views instantly, this system removes operational bottlenecks. For example, operators no longer need to manually turn or re-position heavy baggage. Consequently, this improves inspection efficiency, operator workflow, and overall facility throughput. Furthermore, the integration of high-penetration German engineering ensures that even tightly packed pallets are scanned thoroughly. Thus, it prevents unwanted delays in fast-paced logistics environments across Bangladesh.
