Edwards SIGA2-HRS Intelligent Rate-of-Rise Heat Sensor Price in Bangladesh

Description

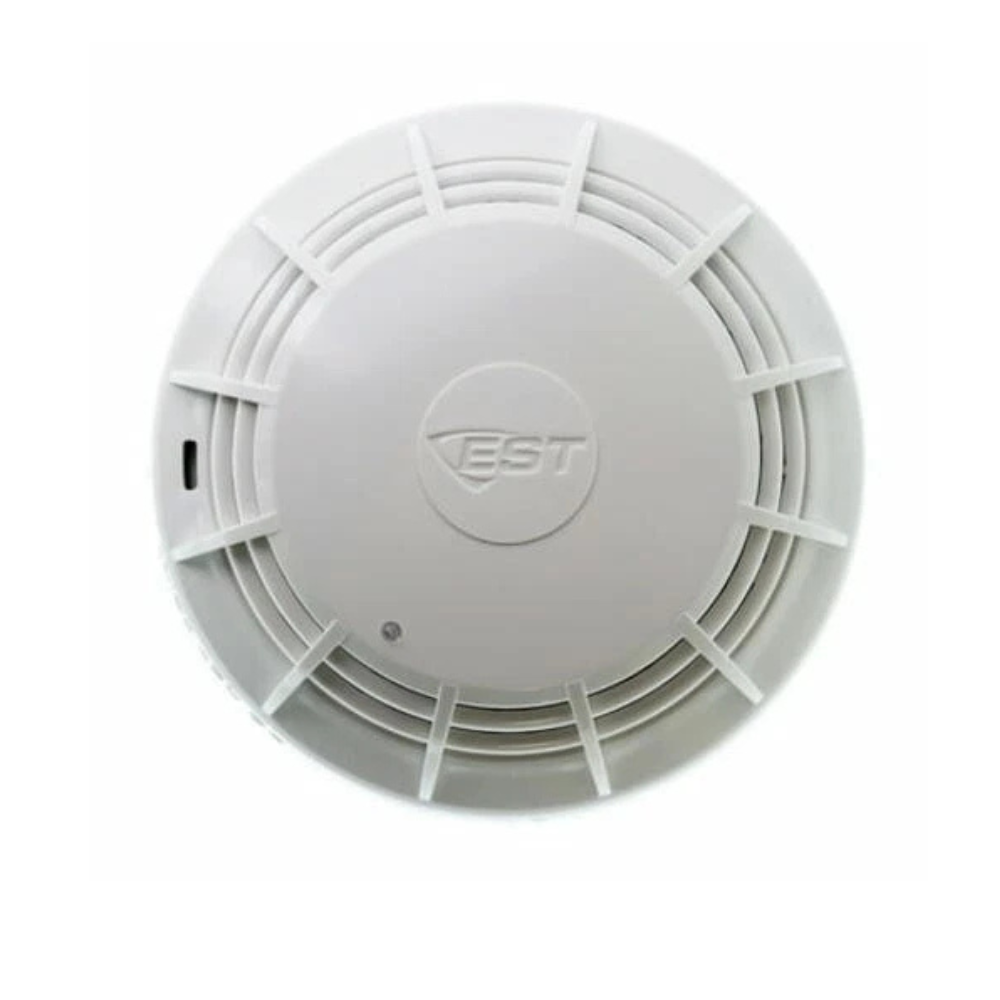

Product Name: Edwards SIGA2-HRS Intelligent Rate-of-Rise Heat Sensor Price in Bangladesh

Manufacturer: Edwards (EST / Kidde Commercial)

Product Overview

The Edwards SIGA2-HRS operates as an intelligent addressable rate-of-rise heat sensor engineered for commercial and industrial fire alarm systems. Furthermore, it continuously monitors ambient air temperature changes to initiate an alarm when surrounding temperatures rise at approximately 15°F (9°C) per minute. It also includes a nominal 135°F (57°C) fixed-temperature thermal sensing element for comprehensive life safety and property protection.

In addition, as part of the Edwards Signature Series, the sensor incorporates onboard microprocessor technology for digital processing, self-diagnostics, and automatic device mapping. Consequently, the unit transmits point-specific status data directly to compatible Signature loop controllers. Meanwhile, its low-profile plug-in design simplifies installation and servicing across standard, relay, fault-isolator, and audible detector bases.

Key Benefits

• Rapid Thermal Response: Detects fast-developing fires using a 15°F (9°C) per minute rate-of-rise thermal sensing threshold.

• Fixed-Temperature Backup: Triggers an alarm when ambient air temperature reaches the fixed thermal threshold regardless of rise rate.

• Automatic Device Mapping: Transmits circuit position data to the controller to streamline system commissioning and maintenance mapping.

• Versatile Mounting: Plugs directly into standard, relay, isolator, or audible Signature Series mounting bases.

Key Features & Technologies

• Signature Series Intelligence: Processes thermal sensor data using onboard microprocessor technology and digital filtering to help reduce unwanted alarms.

• Individual Point Identification: Communicates unique addressable point details rather than operating as a conventional zone device.

• Dual-Color LED Indicator: Features a bicolor green/red status LED for visual device-status indication.

• Onboard Self-Diagnostics: Continuously evaluates internal circuits and maintains event history in nonvolatile memory.

• Construction & Housing: Molded from high-impact engineering polymer with a low-profile plug-in profile.

Technical Specifications Overview

• Brand: Edwards / EST

• Model: SIGA2-HRS

• UPC: 793016040114 (Listing Identifier)

• Product Type: Addressable Intelligent Rate-of-Rise & Fixed Heat Sensor

• Operating Voltage: 15.20 to 19.95 VDC

• Normal Operating Current: 45 µA

• Alarm Current: 45 µA

• Standalone Alarm Current: 18 mA

• Rate-of-Rise Threshold: Approximately 15°F (9°C) per minute

• Fixed-Temperature Alarm Point: Nominal 135°F (57°C); actual alarm point 130–140°F (54–60°C)

• Maximum Spacing: Up to 50 ft (15.2 m) on centers, subject to code and installation requirements

• Operating Temperature: 32°F to 100°F (0°C to 38°C)

• Relative Humidity: 0%–93% RH, non-condensing

• Shipping Weight: Approximately 0.44 lb (164 g)

• Compatible Bases: Standard (SIGA-SB), Relay (SIGA-RB), Isolator (SIGA-IB), Sounder (SIGA-AB4G)

Conclusion

The Edwards SIGA2-HRS Intelligent Rate-of-Rise Heat Sensor delivers thermal fire detection over Signature Series communication loops. Moreover, its rate-of-rise sensing, fixed-temperature limit, automatic mapping, and modular base support facilitate effective heat monitoring in commercial fire protection systems.
