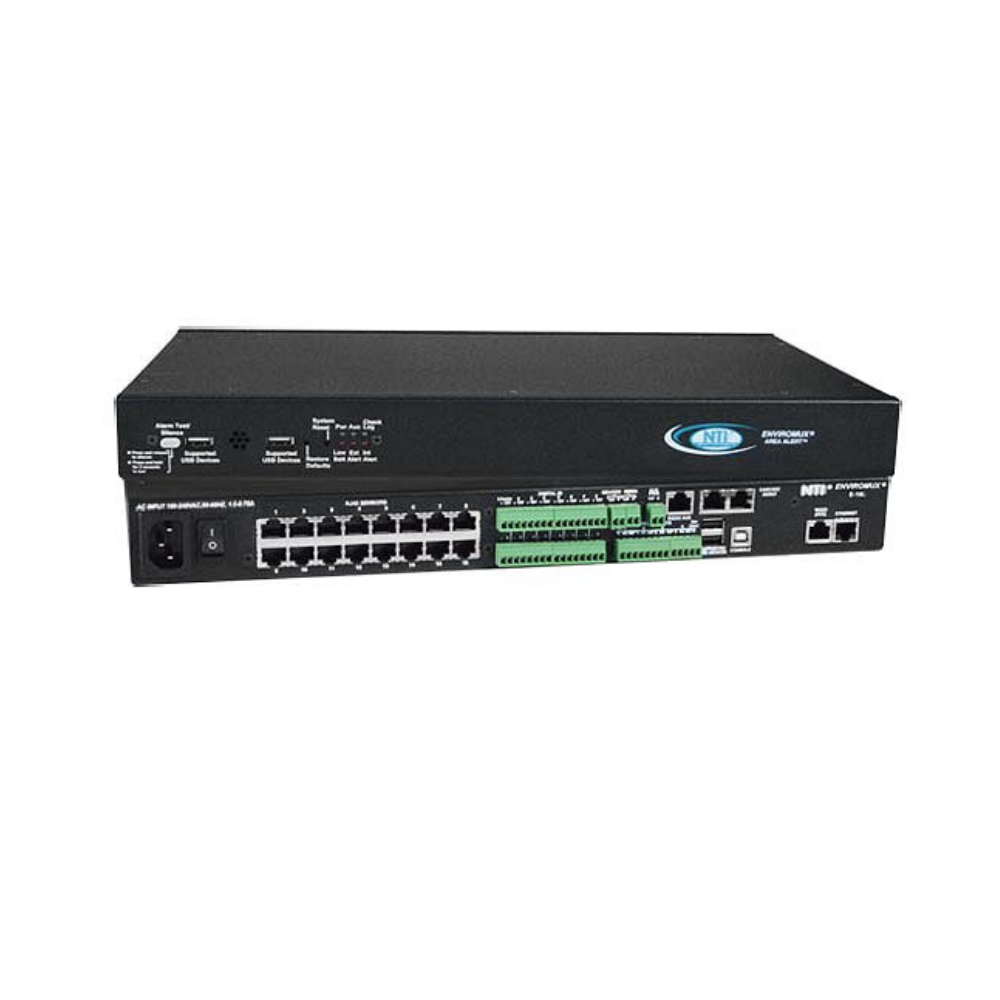

Large Enterprise Environment Monitoring System – E-16D

Description

Product Name: Large Enterprise Environment Monitoring System – E-16D

Manufacturer: NTI (Network Technologies Inc)

Product Overview

The E-16D is a high-capacity environmental monitoring system (EMS) designed for large-scale enterprise data centers, telecom switching sites, and mission-critical facilities. It provides comprehensive monitoring of environmental conditions such as temperature, humidity, liquid water presence, power status, intrusion, and smoke. The system features three internal sensors (temperature, humidity, and power) and supports an extensive array of 16 external configurable sensors, eight digital inputs, and four output relays. In the event of a threshold breach, the E-16D alerts administrators via email, SNMP, webpage, LED indicators, siren, alarm beacon, voice phone calls (via Automatic Voice Dialer System – not included), or SMS (via external USB modem – not included).

Key Features

• High-Capacity Monitoring: Equipped with 16 external RJ45 sensor ports, 8 digital inputs, and 3 built-in internal sensors (temperature, humidity, power).

• Scalable Architecture: Cascade up to 5 E-16D units (1 master, 4 slaves) via Ethernet or RS485 to increase sensor capacity. Optional self-hosted management software is available for centralized monitoring and configuration.

• Advanced Smart Alerting: Configure up to 50 events and 20 “Smart Alerts” using complex event combinations. Supports SSH commands for automated system shutdowns or reboots.

• IP Network Integration: Monitors up to 64 IP devices via ping, integrates with open-source packages like Nagios and MRTG, and supports live-view IP network cameras with snapshot triggers.

• Robust Security: Supports HTTPS, SSHv2, LDAPv3, IP Filtering, AES 256-bit encryption, and user account access control.

• Reliable Operation: Includes internal battery backup for power failure alerts, Linux-based OS, and standard 1RU rack-mount design.

• Flexible Deployment: Supports wireless monitoring when combined with a wireless router and range extender.

Technical Specifications

• Internal Sensors: 3 (Temperature, Humidity, Power)

• External Sensor Ports: 16 RJ45 modular jacks.

• Digital Interfaces: 8 Digital Inputs (screw terminals), 4 Output Relays (potential-free relay switches).

• Connectivity: 10/100 Base-T Ethernet port, 4 USB Type A ports, 1 USB Type B console port, RS232 AUX port, Cascade In/Out (RJ45).

• Alerting Methods: Email (up to 17 addresses), SNMP Traps (v1, v2c, v3), Web Interface, Siren/Beacon (via dedicated ports), Voice Phone Calls (via Automatic Voice Dialer System – not included), SMS (via external USB modem – not included).

• Protocols: HTTP/HTTPS, SNMP V1/V2c/V3, SMTP, TCP/IP, Syslog, SNTP, DHCP, SSHv2, TLS v1.2, LDAPv3, XOAUTH2, AES 256-bit, 3DES, Blowfish, RSA, EDH-RSA, Arcfour, IPv6, WAP 2.0, RADIUS.

• Power: 100–240 VAC, 50/60 Hz via IEC connector; Power Consumption: 35W.

• Dimensions: 16.19″ x 10.01″ x 1.75″ (without rackmount kit); 19″ x 10.01″ x 1.75″ (with supplied rackmount kit).

• Operating Temperature: 32°F to 104°F (0°C to 40°C).

• Humidity: 5% to 90% non-condensing RH.

• Regulatory & Warranty: CE, RoHS, TAA compliant; 2-year warranty.

Conclusion

Dream Technologies BD is a trusted supplier of the NTI E-16D in Bangladesh. We provide professional installation, configuration, and dedicated after-sales support to ensure your large-scale enterprise facilities—such as data centers and server rooms—remain secure, stable, and fully monitored.
