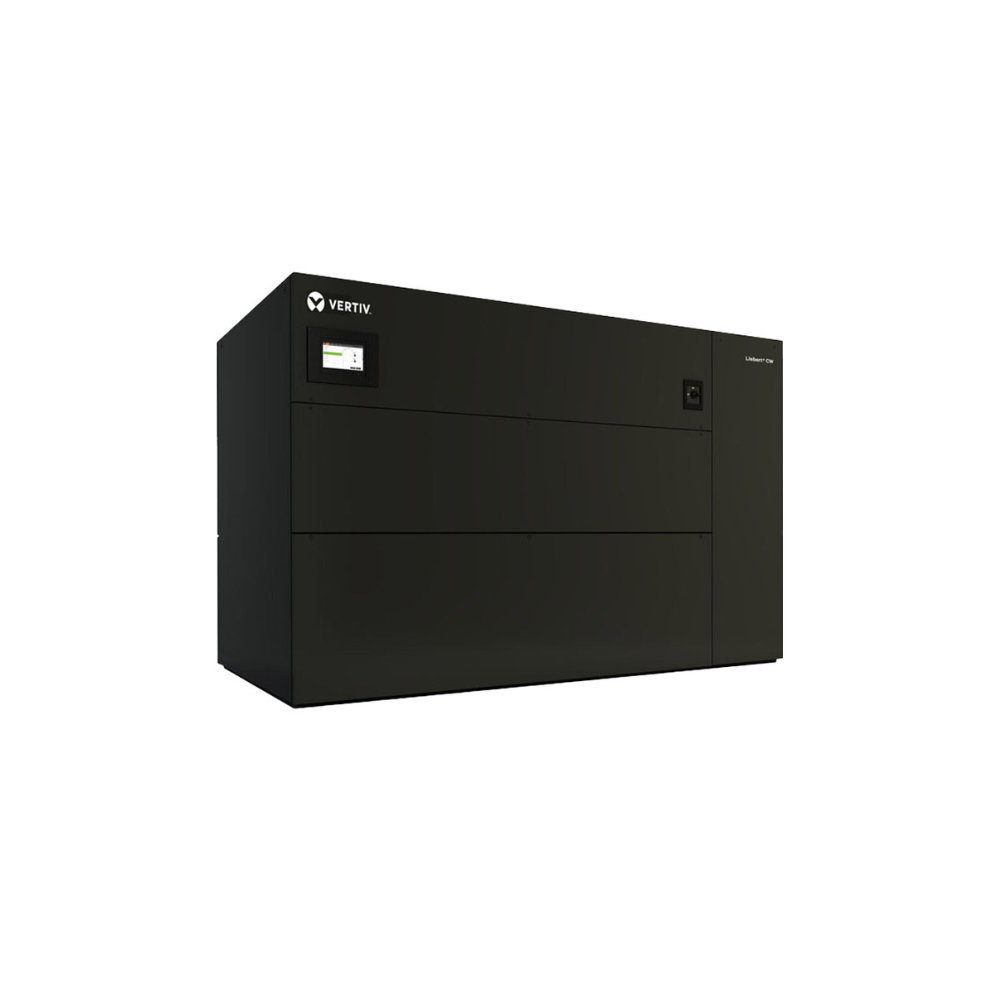

Emerson Vertiv™ Liebert® CW (38–181 kW) | Perimeter Chilled Water Cooling System Bangladesh

Description

Product Name: Emerson Vertiv™ Liebert® CW (38–181 kW) | Perimeter Chilled Water Cooling System Bangladesh

Manufacturer: Vertiv

Product Overview

The Vertiv™ Liebert® CW is a perimeter chilled water cooling system designed to provide precision cooling and humidity control. It is available in both upflow and downflow designs for raised or non-raised floor applications.

Key Features & Technologies

• Greater Flexibility: Provides precision cooling and humidity control in upflow or downflow designs for raised or non-raised floors.

• Higher Availability: Features a high-reliability design for continuous operation and supports proper humidity control through a high sensible heat ratio.

• Lower Total Cost of Ownership (TCO): Leverages existing building chilled-water systems and high-efficiency fan options, including EC plug fans and variable-speed centrifugal fans.

• Optimized Coil: Large-face-area, low-face-velocity A-frame coil designed to maximize cooling performance while providing consistent, evenly distributed airflow.

• Control Valves with Optional Auto-Tuning: Provides precise proportional modulation with intelligent logic to help prevent hunting and extend component life.

• Variable Speed EC Fans: Designed to improve efficiency by lowering motor kW and minimize vibration to meet application requirements.

• Vertiv™ Liebert® iCOM™ Control: Microprocessor controls designed to maintain precise temperature and humidity while automatically sequencing components to balance wear, extend service life, and improve cooling efficiency.

Technical Specifications

• Brand: Vertiv

• Model Range: Liebert® CW Perimeter Chilled Water System

• Total Capacity: 112 kW [32.8 Tons]

• Airflow Direction: Upflow and Downflow

• Heat Rejection Medium: Chilled Water

• Capacity Modulation: Variable Speed EC Fans

• Controls and Monitoring: Liebert iCOM Unit Control

Physical Characteristics

• Weight: 840 lbs / 381 kg

• Height: 72 in / 1829 mm

• Width: 50 in / 1270 mm

• Depth: 35 in / 889 mm

Ideal Applications

• Small to Medium Data Centers and Server Rooms

• Telecommunications Facilities

• Network Operations Centers (NOC)

• Colocation and Enterprise IT Environments

Conclusion

The Vertiv™ Liebert® CW provides precision cooling and humidity control through a perimeter chilled water cooling design. Its upflow and downflow configurations, A-frame coil, variable-speed EC fan options, control valves with optional auto-tuning, and Liebert iCOM control support flexible cooling requirements for raised and non-raised floor applications.
