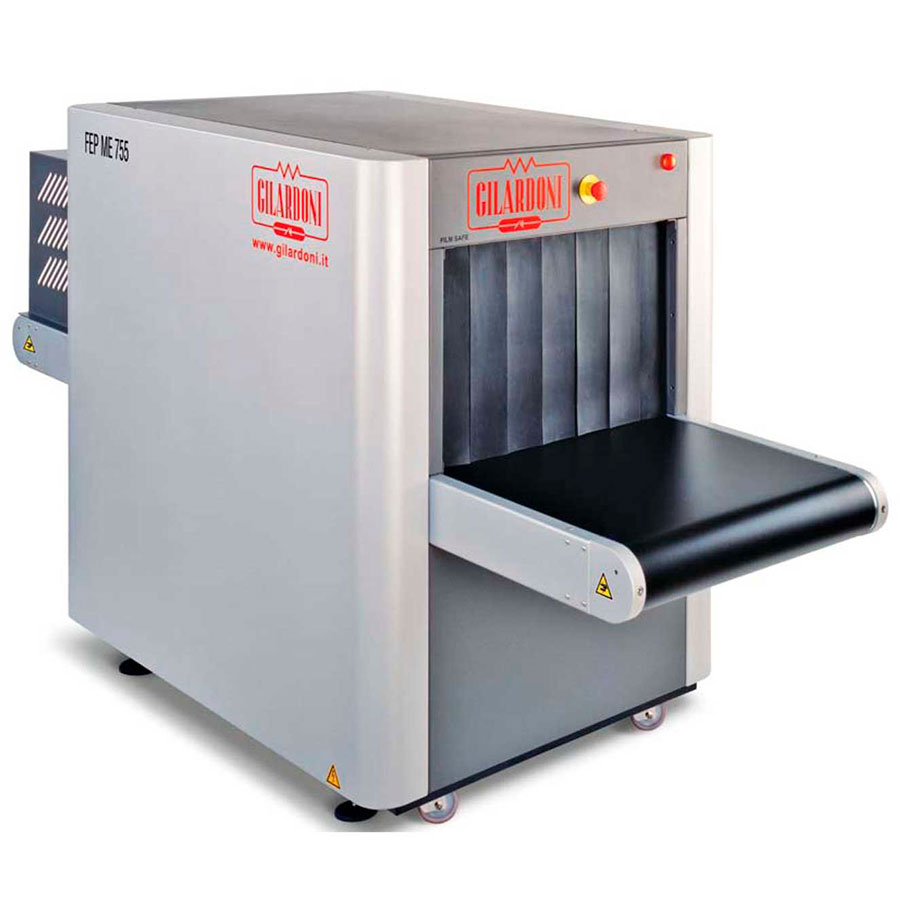

FEP ME 755 X-Ray Inspection System

Description

Product Name: FEP ME 755 X-Ray Inspection System

Manufacturer: Gilardoni

Country of Origin: Italy

Product Description

The FEP ME 755 X-Ray Inspection System is a heavy-duty, highly reliable security screening solution. Engineering groups built this advanced system specifically to deliver deep material penetration and sharp image resolution during continuous security operations. It employs a high-frequency monobloc X-ray generator that operating with a 150kV tube voltage. Consequently, checkpoint operators can efficiently detect dangerous objects, weapons, and contraband concealed inside heavy bags.

This high-performance system stands out on the market with its optimized mid-to-large scale tunnel footprint. It features a diagonal upwards beam orientation that ensures complete threat visibility across different package angles. Furthermore, the FEP ME 755 guarantees complete film safety up to ISO 1600/33 DIN, ensuring that sensitive photographic materials pass through safely. This combination helps airport terminal operators and corporate asset protection teams maintain strict security protocols without lowering screening throughput.

Most importantly, the system features a 756 mm width and 550 mm height tunnel size that easily processes bulky items and luggage. It utilizes premium conveyor belt mechanics built to sustain a maximum bag weight capacity of 200 kg at a stable speed. Designed with a widescreen LCD monitor setup, it shows sharp imaging profiles for immediate, high-confidence cargo assessment. Therefore, it serves as a perfect screening choice for airports, railway stations, customs checkpoints, and busy commercial building complexes.

Key Features

• Powerful High-Frequency X-Ray Generator: Features a heavy-duty 150kV monobloc assembly that ensures excellent scanning penetration across dense organic and metallic compounds.

• Optimized Mid-to-Large Tunnel Footprint: Built with a spacious 756 mm by 550 mm tunnel entry. This configuration makes it highly effective for handling oversized backpacks, briefcases, and small cargo boxes.

• Guaranteed Radiation Film Safety: Engineered to protect delicate electronic storage media and sensitive photographic materials, ensuring full safety up to ISO 1600/33 DIN specifications.

• Heavy Conveyor Loading Performance: Supports an impressive maximum loading capacity of 200 kg while maintaining a consistent belt travel speed of 0.2 meters per second.

• Strict Health and Safety Compliance: Delivers an exceptionally low leakage dose of less than 1.0 $\mu$Sv/h at 10cm, meeting all applicable international regulatory frameworks for X-ray equipment protection.

Technical Specifications

• Product Series: FEP Series

• Manufacturer: Gilardoni

• Country of Origin: Italy

• Device Type: X-Ray Security Baggage Scanner

• Technology: High-Frequency Monobloc X-Ray Imaging with Diagonal Upwards Beam Orientation

• Tunnel Dimensions: 756 mm (Width) × 550 mm (Height)

• Conveyor Belt Height: 735 mm

• Belt Speed: 0.2 m/s

• Maximum Bag Weight: 200 kg

• Duty Cycle: 100% Continuous Operation

X-Ray Generator Specs

• Generator Type: High frequency monobloc

• Tube Voltage: 150 kV

• Tube Current: 0.7 mA

• Beam Orientation: Diagonal upwards

Image Performance & System Specs

• Display Monitor: 1 LCD widescreen monitor

Health and Safety

• International Standards: The system fully meets the applicable international regulations for X-Ray equipment.

• Leakage Dose at 10cm: < 1.0 $\mu$Sv/h (0.1 mR/h)

• Film Safety: Guaranteed up to ISO 1600/33 DIN

Installation Data

• Dimensions: 2630 mm (L) × 1065 mm (W) × 1462.50 mm (H)

• Weight: 580 kg

• Power Supply: Monophase 230VAC +/- 10%

• Frequency: 50 Hz +/- 3 Hz

• Power Absorption: $\le$ 1.5 kVA

Conclusion

For facility managers and security authorities in Bangladesh, deploying a modern screening infrastructure is vital. It is all about striking the right equilibrium between rapid throughput and rigorous security verification. Fortunately, the FEP ME 755 redefines this balance by delivering superior threat detection within a medium-to-large checkpoint footprint. For example, it allows local transport networks, government buildings, and mega-event venues to achieve high safety standards without sacrificing spatial logistics.

By streamlining these checkpoint workflows, the system significantly mitigates congestion during peak entry hours. Consequently, this directly elevates both operator efficiency and the overall visitor experience. Furthermore, with its advanced automated detection capabilities and scalable configuration options, the FEP ME 755 offers a future-proof, highly reliable solution. Investing in this technology provides a critical strategic advantage. Thus, it ensures that commercial, diplomatic, and transport hubs across Bangladesh remain resilient, compliant, and optimized for modern security demands.

Get instant stock availability and the best price for the Gilardoni FEP ME 755 X-Ray Inspection System in Bangladesh. Contact us today for official quotations, bulk pricing, and technical support.
