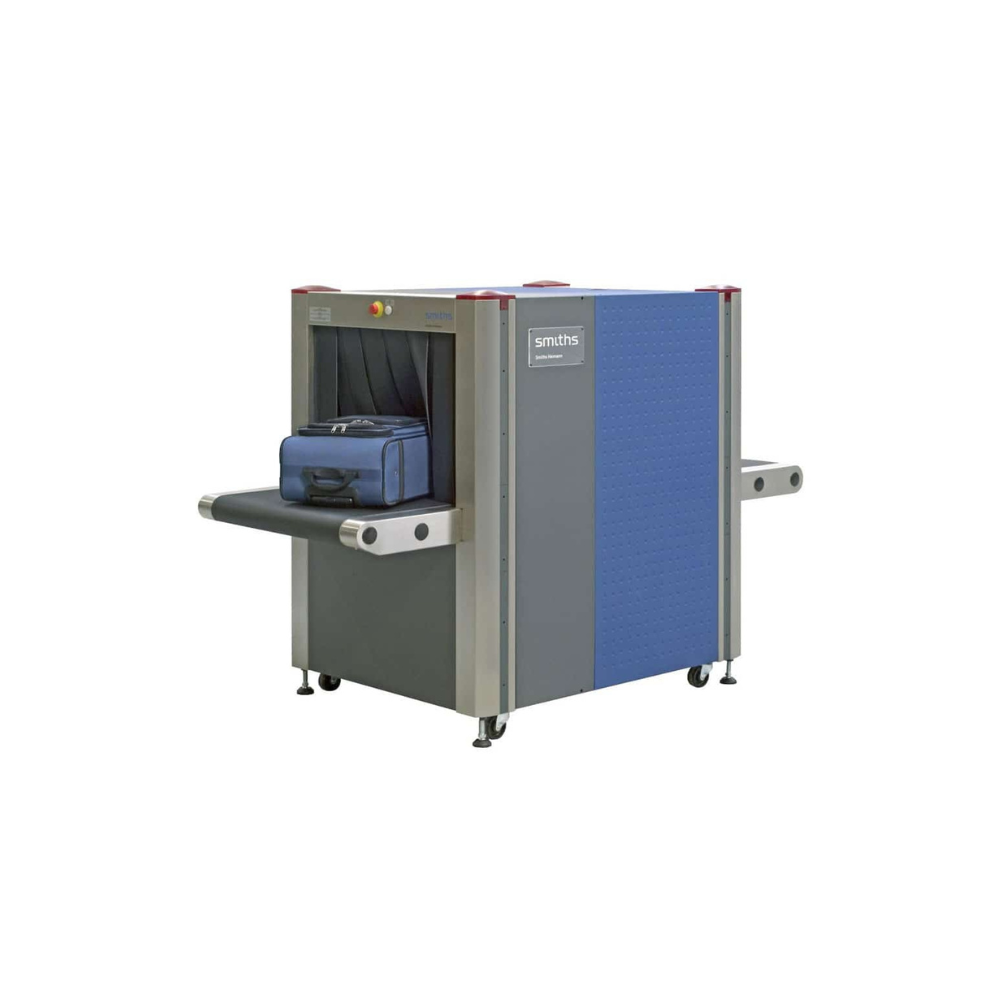

HI-SCAN 7555si X-ray Inspection System

Description

Product Name: HI-SCAN 7555si X-ray Inspection System

Manufacturer: Smiths Detection

Country of Origin: Germany

Product Description

The HI-SCAN 7555si is an enterprise-grade, advanced X-ray inspection system engineered to deliver superior security screening for checkpoints, high-profile buildings, and aviation infrastructure. Equipped with an advanced multi-energy X-ray generator, this system produces extremely detailed X-ray images with more than double the number of pixels compared to standard scanning systems. The significantly enhanced image resolution of scanned objects provides security operators with a decisive advantage during image evaluation. Featuring a large tunnel opening, the system efficiently scans bulkier items and parcels that exceed the aviation industry’s standard dimensions for hand baggage, ensuring comprehensive security compliance without causing checkpoint bottlenecks.

Key Features

• Advanced Multi-Energy Imaging: It produces extremely detailed X-ray images with more than double the standard pixel count for unmatched threat evaluation clarity.

• Expanded Tunnel Dimensions: The large tunnel opening accommodates oversized objects and parcels that exceed standard hand baggage regulations.

• CRISP Sensor Technology: It features high-resolution CRISP sensors that work alongside an optimized X-ray generator spectrum for precise object recognition.

• Powerful Material Penetration: The advanced imaging system effortlessly penetrates up to 37mm of steel to detect well-concealed metallic threats.

• Ultra-Fine Wire Detectability: It offers exceptional screening precision, detecting fine wires up to AWG 41 for high-assurance security environments.

• Smart Network Readiness: You can easily integrate the machine into corporate or airport networks for real-time system management, remote archiving, and TIP functions.

Technical Specifications

• Product Name: HI-SCAN 7555si

• Manufacturer: Smiths Detection (HI-SCAN Series)

• Country of Origin: Germany

• Device Type: Advanced Multi-Energy X-ray Inspection System

• Core Platform: HiTraX II System Platform with extended scope of services

• Sensor Technology: High-Resolution CRISP Sensor Technology

• Overall Dimensions: 2120 mm (L) x 985 mm (W) x 1445 mm (H) / 83.5” (L) x 38.8” (W) x 56.9” (H)

• Maximum Object Size: 750 mm (W) x 550 mm (H) / 29.5” (W) x 21.7” (H)

• System Weight: Approximately 580 kg / 1,287.7 lbs

• Steel Penetration: Up to 37 mm (Typical)

• Wire Detectability: Up to AWG 41 (Typical)

• Network Capabilities: Supports system management, data archiving, image distribution, and Threat Image Projection (TIP)

• Warranty: Manufacturer warranty applies (region dependent)

Applications of HI-SCAN 7555si

This versatile X-ray Inspection System adapts perfectly to various high-security operational workflows, including:

• Airports & Aviation Hubs: Screening oversized hand baggage and critical cargo parcels efficiently at transit checkpoints.

• Government & VIP Infrastructures: Protecting high-profile state buildings, embassies, and ministries from dangerous contraband.

• Corporate & Industrial Centers: Managing large-scale incoming parcel logistics and asset protection at major supply chain headquarters.

• High-Traffic Public Events: Providing rapid, high-throughput security clearance for large bags during major conventions and international exhibitions.

Conclusion

In conclusion, the HI-SCAN 7555si X-ray Inspection System stands out as a premier choice for businesses seeking secure, rapid, and effortless baggage screening in Bangladesh. Its combination of double-pixel image resolution, advanced CRISP sensor technology, and a robust HiTraX II platform makes threat verification exceptionally reliable. Therefore, it provides the perfect balance of strict security compliance and daily operational convenience for local organizations.

Whether you are an enterprise customer looking to protect sensitive data or a system integrator building customized security applications, Smiths Detection’s advanced threat screening solutions provide a natural extension to your security framework. As a result, this model is well-suited for corporate data centers, retail chains, and financial institutions in Bangladesh that require high levels of security and reliability.

Get instant stock availability and the best HI-SCAN 7555si Price in Bangladesh for your corporate project. Contact us today to get official product quotations, bulk pricing discounts, and dedicated technical support.
