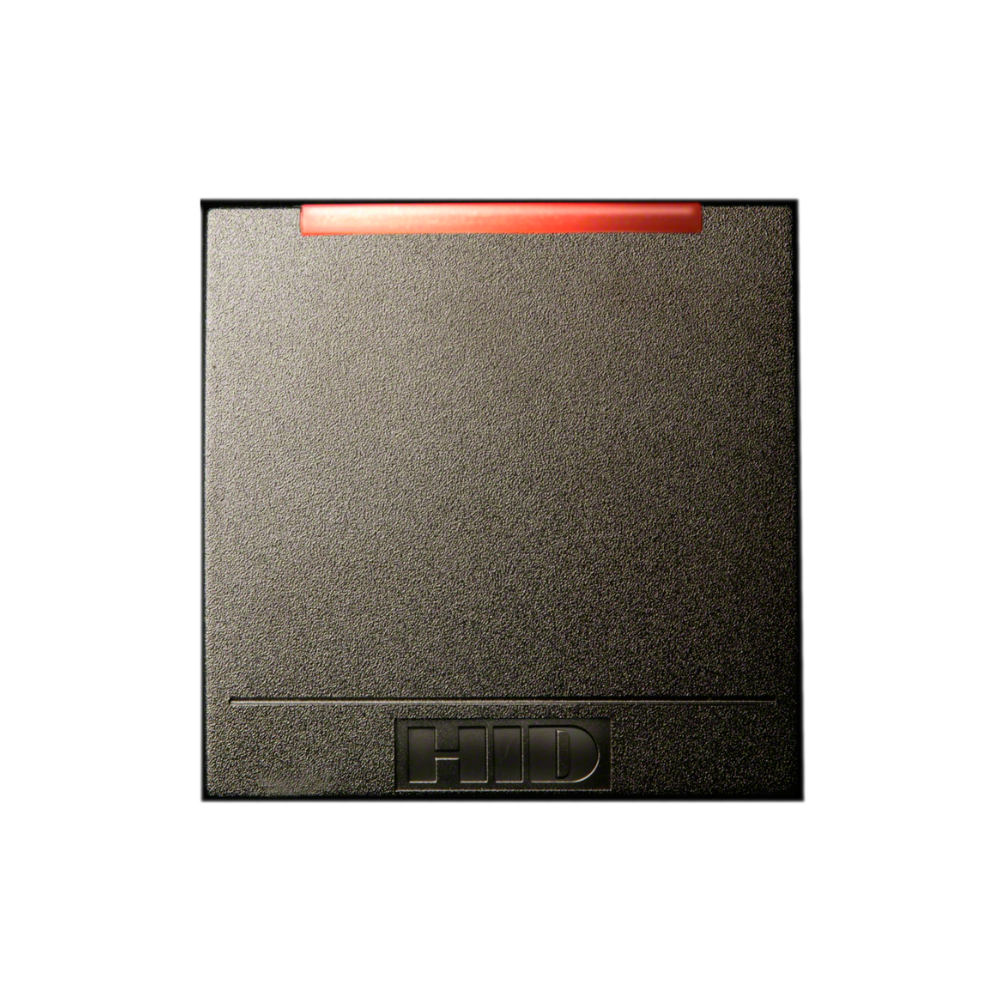

HID iCLASS R30 Contactless Smart Card Reader

Description

Product Name: HID iCLASS R30 Contactless Smart Card Reader

Country of Origin: USA

Manufacturer: HID Global

Product Description

The HID iCLASS R30 Reader is a high-performance contactless smart card reader. It features an open architecture design. Consequently, this design ensures compatibility with the market’s most popular smart cards. Engineered by HID Global (USA), it complies with strict ISO 14443A, 14443B, and 15693 interoperability standards. Furthermore, it includes regional compatibilities like the US Government PIVII (FIPS201). Therefore, the iCLASS R30 stands out as one of the most flexible smart card reader platforms available today.

Additionally, this reader is exceptionally user-friendly. It brings the trusted convenience of legacy proximity technology into the modern era. In addition, upgrading from Prox to iCLASS technology is completely seamless. This is because the R30 provides the exact same wiring connections and low-current consumption. It also supports both 5 and 12-volt operation. As a result, organizations can effortlessly transfer their existing Prox formats and user ID numbers. This makes the technology transition completely transparent to the access controller panel.

Key Features

• Format Portability for Easy Upgrades: Seamlessly transfers legacy Prox formats and user identification numbers. Moreover, it supports HID Corporate 1000 formats directly on your future iCLASS credentials.

• Secure RF Encryption: All radio frequency (RF) data transmission is fully protected. Specifically, the data between the card and the smart card reader is encrypted using secure algorithms.

• Extensible Hi-O Communication Panel: Security can be extended all the way from the reader to the controller. However, this requires a Hi-O enabled access control panel using encrypted Hi-O communication.

• International Standards Interoperability: Built on global architecture to deliver wide compatibility. Hence, it provides native support for popular card technologies including ISO15693, ISO14443A, and ISO14443B.

• Security 64-bit Authentication Keys: Features highly secure 64-bit authentication keys. In other words, smart card readers and cards strictly require matching keys to function.

• Simplified Key Management: All cards are shipped with unique diversified keys. Similarly, readers are supplied with compatible keys out of the box for quick deployment.

• Elite Custom Keys Option: Offers the highest level of site-specific security. As a result, cards and readers are uniquely matched to individual locations and remain non-interchangeable.

• OSDP Compliant Interface: Supports bi-directional, multi-dropped communication over an RS485 link. But note that, this requires the optional HADP hardware option for compatibility with OSDP panels.

Technical Specifications

• Product Name: HID iCLASS® R30 Reader

• Product Type: Contactless Smart Card Reader

• Platform Type: HID iCLASS Platform

• Manufacturer & Origin: HID Global | USA

• Dimensions: 3.3″ x 3.3″ x .75″ (8.38 cm x 8.38 cm x 1.91 cm)

• Operating Voltage Support: 5V DC or 12V DC Operation

• Power Consumption Profile: Low-current consumption architecture

• Typical Maximum Read Range: iCLASS Card: Up to 4.0” (10.2 cm) | iCLASS Key/Tag: Up to 2.0” (5.1 cm) | MIFARE / DESFire Card (CSN): Up to 2.75” (7.0 cm)

• Secure Data Read Compatibility: iCLASS 2kbits, 16kbits, 32Kbits; Inside Contactless PicoPass, PicoTag; Philips DESFire, SmartMX

• CSN Read Compatibility (ISO15693): TI Tag-It, Philips I Code, Infineon my-d

• CSN Read Compatibility (ISO14443A): Philips Ultralight, MIFARE, DESFire, SmartMX

• CSN Read Compatibility (ISO14443B): Inside MicroPass, Calypso, ASK

• Specialized Transit Card Support: Sony FeliCa IDm & CEPAS CAN/CSN (Both require Transit reader p/n 6119)

• Warranty Policy: Lifetime Warranty from HID Global

Conclusion

The HID iCLASS R30 Reader stands out as an incredibly flexible contactless smart card reader. It is perfectly designed to accommodate the needs of modern enterprise access systems. By combining broad ISO interoperability, seamless format portability, and secure encryption, it provides a future-proof security architecture. Furthermore, its low-power footprint and flexible voltage handling make it an outstanding investment for corporate deployments across Bangladesh.

Therefore, it is highly recommended for specialized commercial and high-security installations nationwide. These include modern corporate headquarters, restricted banking zones, and financial vaults. Additionally, it is ideal for government executive offices requiring FIPS201 compliance and critical infrastructure facilities. In conclusion, it is the perfect choice for high-traffic smart buildings looking for a seamless migration from old proximity card technology to elite smart card security.
