HID Signo Mechanical Keypad Reader 40T

Description

Product Name: HID Signo Mechanical Keypad Reader 40T

Country of Origin: USA

USA Manufacturer: HID Global

Product Description

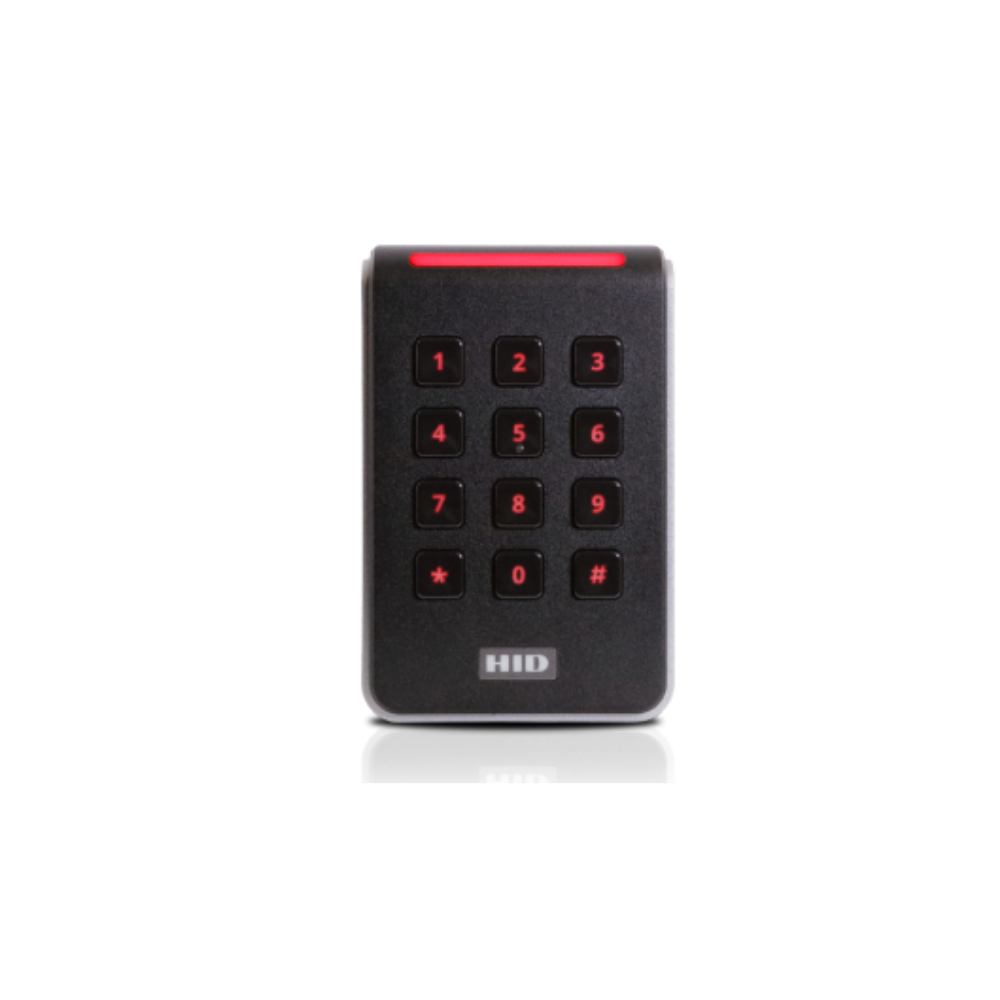

The HID Signo Mechanical Keypad Reader 40T is a high-performance physical access control reader engineered by HID Global (USA). Designed specifically for wall-switch-mount applications, this device supports secure, flexible, and future-ready electronic access control. By combining the reliability of a traditional mechanical keypad with ultra-secure multi-technology credential support, the Signo 40T delivers multi-factor authentication, dependable performance in challenging environments, and streamlined remote reader management.

Key  Features

• Mechanical Keypad for Harsh Environments: Provides reliable operation and positive tactile feedback in cold, wet, and low-visibility conditions where users may be wearing gloves or require positive keypress confirmation.

• Highly Versatile Credential Support: Supports a wide range of credential technologies, including cards, key fobs, and mobile credentials for flexible access control deployment.

• HID Mobile Access Ready: Features native Bluetooth® and Near Field Communication (NFC) capability for secure mobile credential authentication.

• Apple Wallet Credential Support: Supports Apple’s Enhanced Contactless Polling (ECP) protocol, enabling access credentials stored securely in Apple Wallet.

• Enhanced Security Protection: Stores cryptographic keys on certified secure element hardware to help strengthen credential security and authentication integrity.

• Automatic Surface Detection: Automatically recalibrates and optimizes read range performance based on installation conditions and mounting materials for improved reliability.

• Future-Ready Connectivity: Supports Open Supervised Device Protocol (OSDP) for secure, encrypted, bidirectional communication with central access control systems.

• Remote Reader Management: Designed to support remote configuration and management capability without requiring physical interaction or on-site device contact.

Technical Specifications

• Product Name: HID Signo Mechanical Keypad Reader 40T

• Product Type: Contactless Smart Card Mechanical Keypad Reader (Multi-Technology, Mobile Ready, Wall Switch Mount)

• Platform: HID Signo Platform

• Manufacturer & Origin: HID Global | USA

• Dimensions (W x L x D): 80 mm x 122.5 mm x 22.5 mm (3.16 in x 4.82 in x 0.89 in)

• Operating Voltage: 12V DC

• Current Consumption: NSC (Normal): 90mA, Peak: 250mA, Max Average: 120mA

• Transmit Frequencies: 125 kHz, 13.56 MHz, and 2.4 GHz

• Interface Protocols: Open Supervised Device Protocol (OSDP), Wiegand, Clock-and-Data

• Keypad Interface Layout: 3×4 Layout Keypad (Configurable to 4-bit burst or buffered modes)

• Environmental Rating: IP65 Weatherproof, UL294 Outdoor and Indoor Rated

• Operating Temperature: -35° C to +66° C (-31° F to +150° F)

• Operating Humidity: 0% to 95% non-condensing

• Device Input / Output: Input: Tri-color LED, Buzzer, Hold Line. Output: Tamper Relay (Dry Contact, 0-60V DC @ 100mA Max)

• Housing Material: Polycarbonate – UL94 V0 Flame Retardant

• Warranty: Limited Lifetime Warranty

Conclusion

The HID Signo Mechanical Keypad Reader 40T is a powerful and dependable access control solution designed for organizations requiring secure authentication and reliable operation in modern environments. Combining a traditional mechanical keypad, mobile credential support, Apple Wallet compatibility, advanced cryptographic key protection, automatic read range optimization, and secure OSDP communication, this reader delivers exceptional performance for modern electronic access control systems. Its rugged 3×4 layout design, broad credential compatibility, and future-ready connectivity make it an excellent choice for secure access management deployments across Bangladesh.

It is particularly ideal for specialized high-security installations nationwide, including securing financial institutions (vaults, server rooms), safeguarding critical infrastructure and data centers, managing rugged industrial plants and ports where workers operate with gloved hands, verifying government facilities via strict OSDP encryption, and streamlining high-traffic commercial headquarters with mixed card and smartphone credentials.

For the best price, contact us at +88 01737118246 or email us at [email protected]
