HID VertX V300 – Output Control Interface Price in Bangladesh

Description

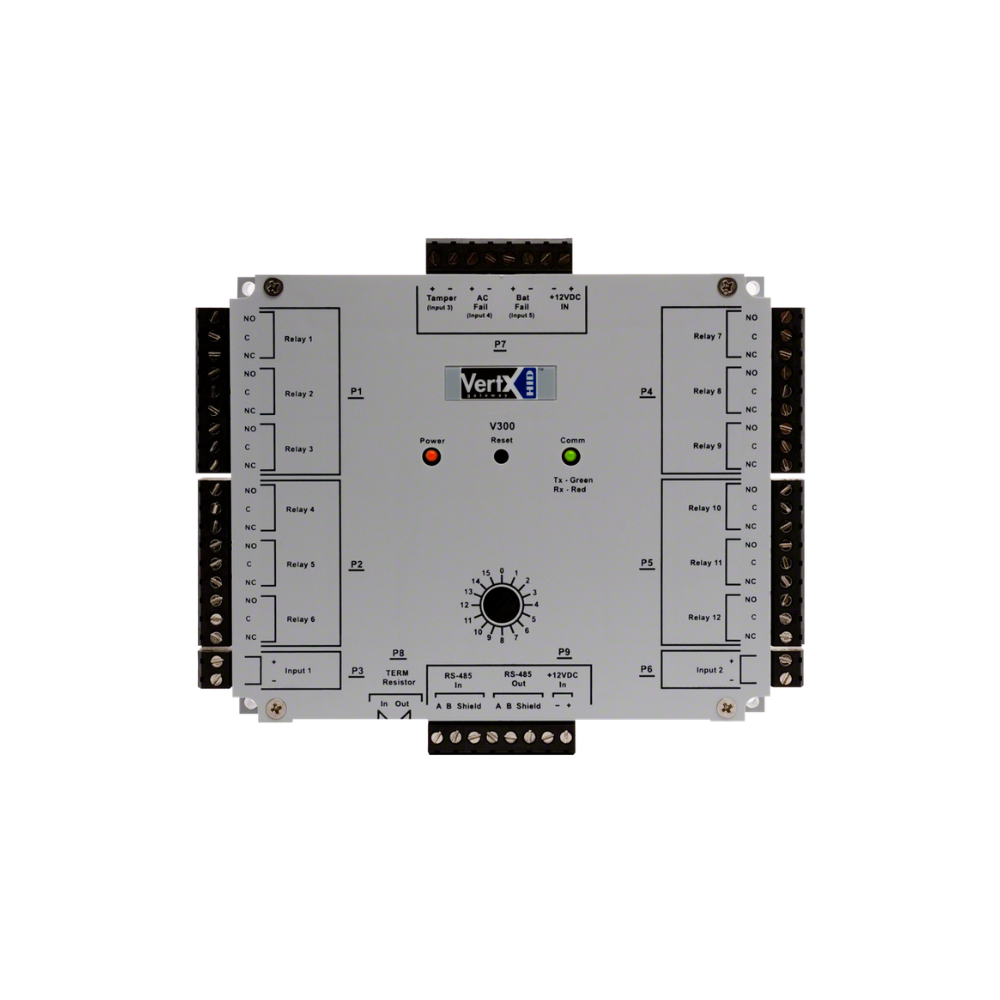

Product Name: HID VertX V300 – Output Control Interface Price in Bangladesh

Manufacturer: HID Global

Country of Origin: USA

Product Description

The HID VertX V300 Output Control Interface is a high-performance expansion module. This device is engineered for sophisticated automation and enterprise security management in Bangladesh. As a core component of the world-renowned HID VertX series, the V300 delivers a highly stable hardware and firmware infrastructure. Consequently, it allows modern access control software to manage external hardware with extreme precision.

This interface features 12 latching Form-C relays. Therefore, it enables the seamless control of up to 12 individual hardware units. It serves as an ideal solution for regulating external devices. For example, it easily manages industrial process equipment, HVAC systems, elevator control panels, and CCTV switchers through programmable relay outputs. However, for high-power requirements, the V300 acts as a reliable trigger for interposing relays. This safety-first configuration handles heavy loads exceeding 2 A @ 30 VDC. As a result, it ensures safe, long-term operation across diverse electrical environments.

Furthermore, the V300 comes equipped with on-board flash memory. This feature supports secure, remote firmware updates via your network, which effectively eliminates the need for manual, costly on-site maintenance. By connecting directly to the V1000 Intelligent Controller through a high-speed RS-485 network, this smart architecture significantly reduces data traffic on corporate IT networks. In fact, it allows up to 32 interface modules to share a single, bandwidth-saving TCP/IP address. Meanwhile, the localized setup processes all low-level commands to guarantee maximum system uptime and responsiveness.

Key Features

• 12-Device Output Control: High-density control via 12 latching Form-C relays. These physical switches are rated at 2A @ 30VDC for versatile and safe device management.

• Intelligent I/O Linking: When paired with the V1000 controller and V200 input modules, it enables complex “If/Then” macro logic. For instance, it can trigger an external camera matrix or sound a local alarm when a specific door is forced.

• Network Optimization: Uses a dedicated, high-speed RS-485 connection to communicate with the central controller. Consequently, this design ensures minimal impact on the corporate LAN while maintaining ultra-fast data transmission.

• Real-Time Activity Reporting: Instantly receives and processes high-priority commands from the host system. Simultaneously, it reports all relay state changes back to the V1000 to maintain a complete, unalterable audit trail.

• User-Friendly Installation: Housed in an attractive, durable polycarbonate enclosure. Additionally, all wiring connections and diagnostic LED indicators are clearly identified by professional, silk-screened labels on the cover.

• Advanced Safety Standards: Formally recognized as a UL 294 and UL 1076 component. Therefore, this elite recognition ensures full compliance with strict, industry-standard security and access control laws.

Technical Specifications

• Product Name: HID VertX V300

• Manufacturer: HID Global

• Country of Origin: USA

• Device Type: Output Control Interface Module (12 Independent Relays)

• Relay Contacts: 12 Latching Form-C (Rated at 2A @ 30VDC)

• Power Requirements: 60 mA @ 9-18 VDC (A supervised linear power supply with battery backup is highly recommended)

• Max Cable Distance (RS-485): 4,000 feet (1,220 m) to host using Belden 3105A, 22 AWG twisted pair, shielded 100Ω cable.

• Max Cable Distance (Outputs): 500 feet (150 m), 2-conductor, using ALPHA 1172C (22AWG) or Alpha 1897C (18AWG).

• Global Certifications: UL 294 and UL 1076 Recognized Component (US), CSA 205 (Canada), FCC Class A Verification, EMC (CE Mark, C-Tick), EN 50130-4.

• Weight: 13.6 oz (0.38 kg)

• Dimensions: 5.8″ W x 4.825″ H x 1.275″ D (147.32 mm x 122.55 mm x 32.38 mm)

Conclusion

In conclusion, the HID VertX V300 is an industrial-grade powerhouse for commercial organizations in Bangladesh. It effectively bridges the operational gap between physical access control and smart facility automation. For example, system integrators can deploy it to manage strict elevator access in multi-story corporate towers. Alternatively, it works perfectly to automate CCTV alarm triggers in high-security logistics warehouses. In all deployment scenarios, the V300 offers unparalleled reliability, clean network efficiency, and massive hardware scalability.

Moreover, its native ability to execute complex input/output linking makes it a premier choice for modern security professionals. This is especially true for corporate security teams who require a unified, intelligent building framework. By choosing genuine HID Global hardware, you ensure that your facility infrastructure is backed by strict international certifications and top-tier American engineering.

Secure Your Facility Today: Contact us for genuine stock and the best market price for the HID VertX V300 Output Control Interface in Bangladesh.
