Honeywell HPF24S6 6A Fire Panel Power Supply Price in BD

Description

Product Name: Honeywell HPF24S6 6A Fire Panel Power Supply Price in BD

Country of Origin: United States

Product Overview

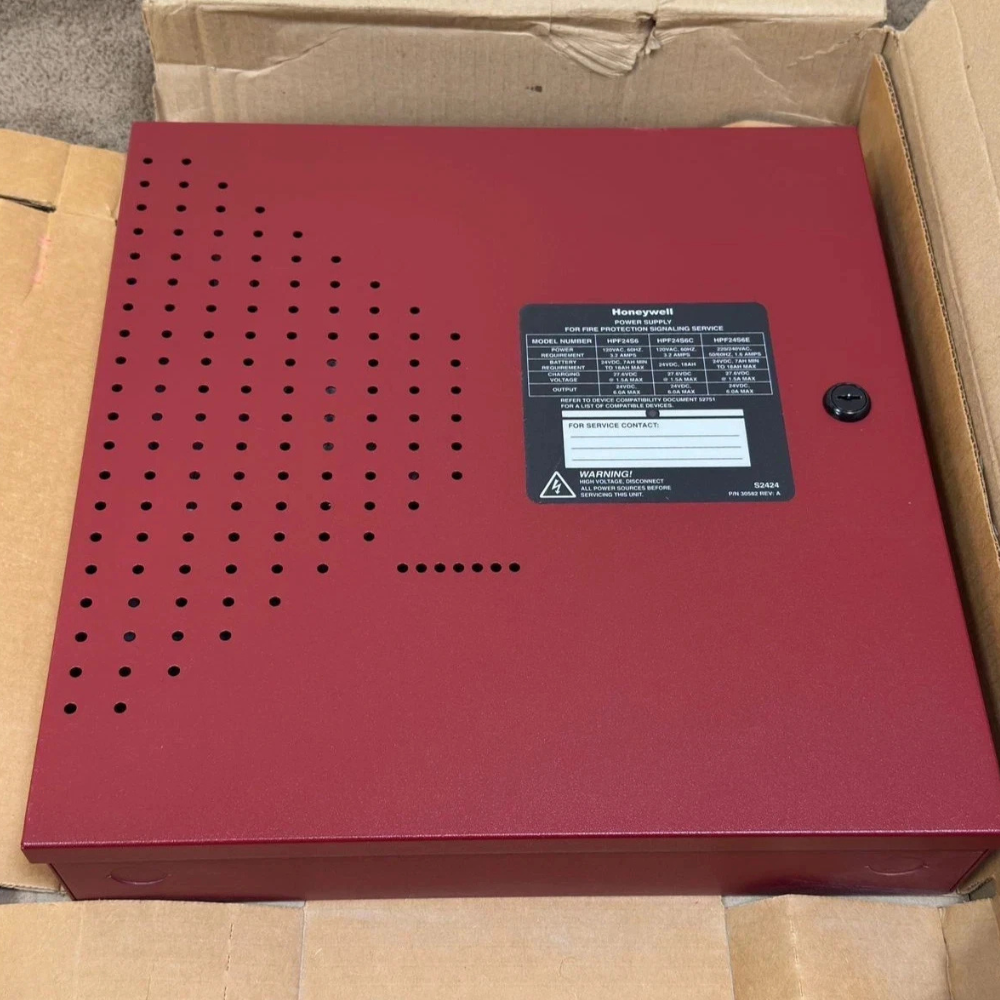

The Honeywell HPF24S6 (Part No: 30582) is a 6.0 A remote power supply and notification appliance circuit (NAC) expander panel. It delivers regulated 24 VDC auxiliary power and expands NAC capacity for commercial fire alarm systems. Furthermore, it includes built-in strobe synchronization protocols and supports battery backup management.

Specifications & Features

• Brand & Model: Honeywell HPF24S6 (Part No: 30582)

• Product Type: Fire Alarm Remote Power Supply / NAC Expander

• Output Capacity: Provides 6.0 A total filtered power across 4 configurable Style Y (Class B) or Style Z (Class A via optional ZNAC-4 module) circuits (3.0 A max per circuit).

• Input Voltage: Accepts 120 VAC (3.2 A) or 220/240 VAC (1.6 A) primary input, with a 9.0–32 VDC panel trigger input.

• Battery Charging & Cabinet: Onboard charger supports up to 18 Ah lead-acid batteries (cabinet fits up to 7.0 Ah batteries internally).

• Strobe Sync Protocols: Integrated ADA-compatible strobe synchronization for System Sensor, Wheelock, and Gentex appliances.

• System Supervision & Expansion: Features Form-C trouble relay, earth fault detection, and cascade support for up to 10 units.

Conclusion

The Honeywell HPF24S6 is a 6.0 A fire alarm power supply designed for NAC expansion and auxiliary power distribution in commercial fire safety systems.
