Honeywell IDP-CONTROL-6 Addressable Six-Circuit Control Module Price in Bangladesh

Description

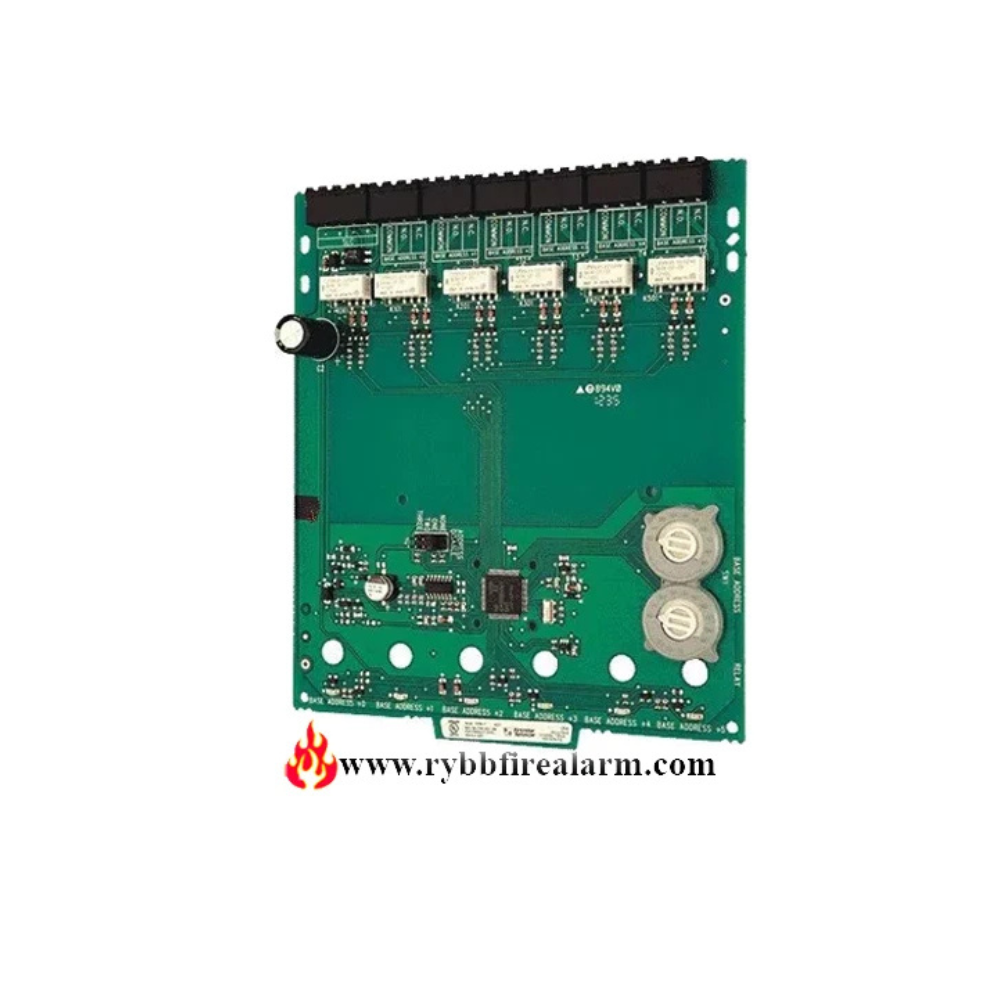

Product Name: Honeywell IDP-CONTROL-6 Addressable Six-Circuit Control Module Price in Bangladesh

Manufacturer: Honeywell (Farenhyt Series)

Product Overview

The Honeywell IDP-CONTROL-6 operates as an addressable six-circuit supervised control module designed for Honeywell Farenhyt Series fire alarm control panels. Furthermore, it connects to the panel’s Signaling Line Circuit (SLC) loop, consolidating up to six supervised Notification Appliance Circuits (NACs) or auxiliary power output circuits within a single multi-module chassis board.

In addition, each of the six output circuits supports Class B (Style Y) or Class A (Style Z) wiring configurations to drive bells, horns, strobes, and external power-switching or amplifier equipment. When activated by the host panel, the module disconnects line supervision and applies external power (such as 24 VDC or audio signals) to the connected notification appliances. Meanwhile, its short-circuit protection helps isolate faults on affected output circuits without disabling unaffected lines on the system.

Key Benefits

• High-Density Circuit Expansion: Provides six independently controlled notification output circuits from a single physical module assembly.

• Class A & Class B Wiring Support: Accommodates Style Y (Class B) or Style Z (Class A) field wiring layouts for flexible system topology.

• Isolated External Power Loop: Keeps external 24 VDC auxiliary power supplies relay-isolated from the main SLC loop during switching operations.

• Circuit Disablement Flexibility: Shorting shunts allow unused circuits to be disabled during module configuration.

Key Features & Technologies

• Farenhyt Series Panel Compatibility: Compatible with Honeywell Farenhyt Series panels, including IFP-2100 / IFP-2100ECS / RFP-2100, IFP-2000 / IFP-2000ECS / RPS-2000, IFP-1000 / IFP-1000ECS, IFP-300 / IFP-300ECS, IFP-100 / IFP-100ECS, IFP-75, and IFP-50.

• Supervised Notification Outputs: Continuously monitors field wiring against open or short faults in standby mode using 47 kΩ end-of-line (EOL) resistors.

• Status LED Indicators: Each integrated module has a panel-controlled green LED that can blink, latch on, or latch off depending on panel programming and status.

• Short-Circuit Protection: Helps isolate faults on affected output circuits.

• Rotary Address Switches: Configured via rotary dial switches; setting the base address automatically assigns consecutive addresses to subsequent circuits.

Technical Specifications Overview

• Brand: Honeywell / Farenhyt

• Model: IDP-CONTROL-6

• Product Type: Addressable Six-Circuit Supervised Control / Notification Module

• Compatible Fire Alarm Control Panels: Compatible with Honeywell Farenhyt Series panels, including IFP-2100 / IFP-2100ECS / RFP-2100, IFP-2000 / IFP-2000ECS / RPS-2000, IFP-1000 / IFP-1000ECS, IFP-300 / IFP-300ECS, IFP-100 / IFP-100ECS, IFP-75, and IFP-50

• Operating Voltage Range: 15 VDC to 32 VDC (Powered via SLC Loop)

• Standby Current Draw: Approximately 2.65 mA at 24 VDC

• Alarm Current: 35 mA maximum, assuming all six relays have been switched once and all six LEDs are continuously illuminated

• End-of-Line Resistor (ELR): 47 kΩ (for supervised Class B notification circuits)

• Maximum SLC Wiring Resistance: 41 Ω

• Maximum NAC Wiring Resistance: 40 Ω

• Compatible Cabinet: IDP-ACB Mounting Cabinet and Chassis

• Dimensions: Approximately 6.8 in. H × 5.8 in. W × 1.25 in. D (17.3 cm × 14.7 cm × 3.2 cm)

• Shipping Weight: Approximately 6.3 oz (196 g)

• Operating Temperature: 32°F to 120°F (0°C to 49°C)

• Relative Humidity: 10% to 85% RH (non-condensing)

• Agency Compliance: UL Listed, CSFM Listed

Conclusion

The Honeywell IDP-CONTROL-6 Addressable Six-Circuit Control Module provides multi-circuit notification appliance control for compatible Farenhyt Series fire alarm control panels. Furthermore, its supervised Class A/B wiring options, rotary addressing switches, and IDP-ACB chassis mounting support structured notification circuit expansion.
