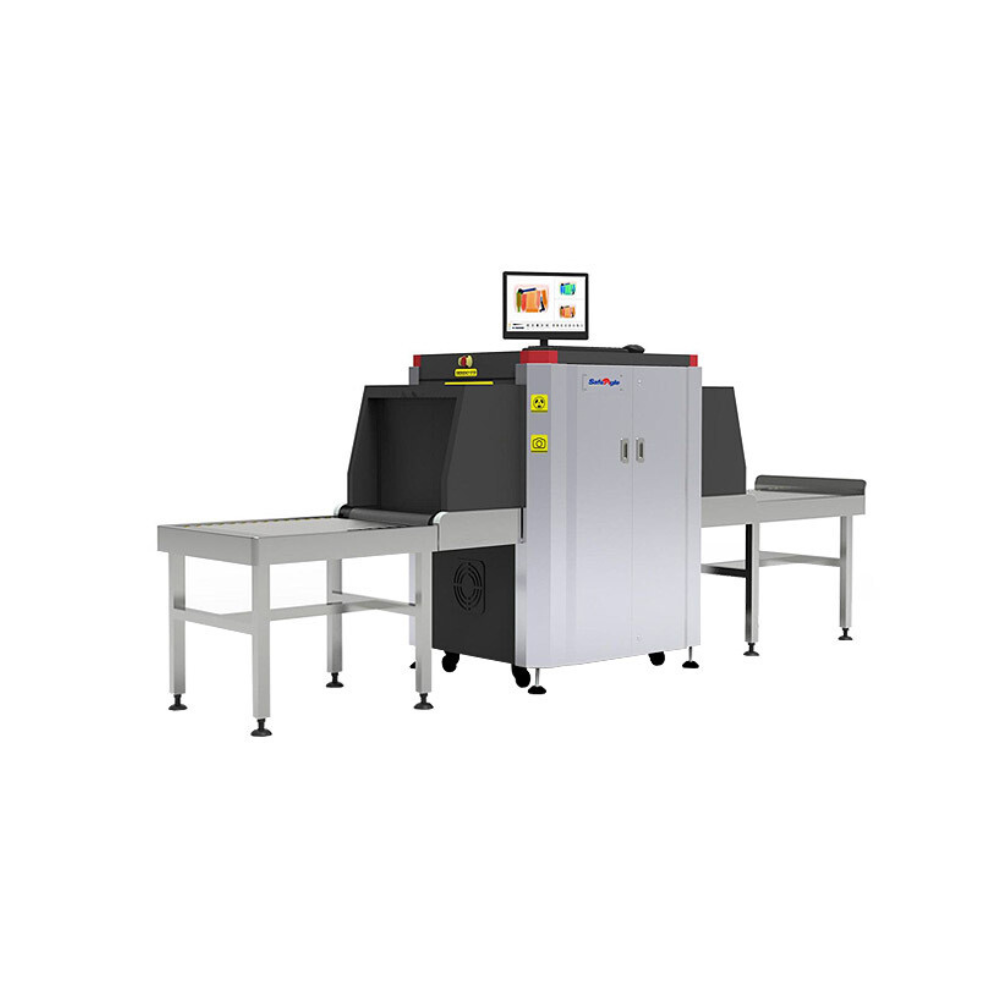

HP-SE7555C X-Ray Inspection System

Description

Product Name: HP-SE7555C X-Ray Inspection System

Manufacturer: Safeagle

Country of Origin: China

Product Description

The Safeagle HP-SE7555C is an advanced, mid-sized X-Ray Inspection System. It is carefully engineered to meet the rigorous security demands of checkpoints, customs, and commercial facilities. Specifically, it provides an optimal scanning matrix with a generous 755 mm × 555 mm tunnel size. Consequently, it can accommodate medium-sized parcels, oversized baggage, and carry-on luggage efficiently.

Additionally, this high-efficiency system features a precision conveyor operational speed of 0.24 m/s. It also offers a structural load capacity of 165 kg. Therefore, it strikes a perfect balance between high throughput and thorough inspection accuracy.

Furthermore, the HP-SE7555C generates high-quality, real-time X-ray images. This is made possible by a high-performance 140kV generator and an L-shaped 1024-channel detector array. Meanwhile, its low-noise engineering ensures an operating sound level under 45 dB. As a result, it is exceptionally suited for noise-sensitive, high-traffic screening environments. Ultimately, this scanner provides security operators with excellent agility and material clarity.

Key Features

• High-Performance Imaging & Advanced Penetration: Powered by a standard 140kV generator, the system achieves a sharp 40 AWG wire resolution. Moreover, it delivers 36 mm steel penetration. It also features variable high/low penetration modes and Gaussian blur tools for meticulous analysis.

• Innovative Material Discrimination: The system features a switchable 4 and 7 Colors Mode alongside Organics, Inorganic & Mixture Striping. Consequently, it assists operators in distinguishing organic, inorganic, and mixed materials through clear color-coded imaging.

• Real-Time Control & Continuous Zoom: Operators can manipulate captured images dynamically using a continuous zoom up to 64x. In addition, features like Inverse Mode and Variable Gamma help to detect contraband or hidden illicit goods rapidly.

• Intelligent Scanning & Security Alerts: Built for continuous deployment, the system offers Continuous Scan (C-scan) and Splicing-scan (S-scan). Furthermore, a built-in Density Threshold Alarm (DTA) alerts operators immediately to suspicious, high-density areas.

• Robust Auxiliary Functions & Network Ready: The machine supports seamless network integration and different access level accounts. It includes automated image archiving for PNG, JPEG, and BMP formats. Therefore, it successfully maximizes system uptime.

• Certified Radiation Safety and Film Protection: It is fully compliant with national radiation safety standards. It strictly maintains radiation leakage under 0.1 mR/hr. Besides, it guarantees total film safety up to ISO 1600 (33 DIN) to prevent baggage damage.

Technical Specifications of HP-SE7555C

• Product Name: HP-SE7555C

• Manufacturer / Origin: Safeagle / China

• Tunnel Dimensions (W × H): 755 mm × 555 mm (29.7” × 21.9”)

• Wire Detectability: 40 AWG

• Steel Penetration: 36 mm Steel Typical

• Spatial Resolution: 1.0 mm Horizontal, 1.0 mm Vertical

• X-Ray Generator (Voltage / Current): 140kV Standard (160kV Optional) / 0.7 mA

• Beam Direction / Generate Angle: Diagonally Upward / 80º

• Detector Type: 1024 Channels in an L-Shaped Array (Dual-energy)

• Cooling System: Sealed Oil Bath with Forced Air

• Duty Cycle: 100% (No Warm-Up Procedure Required)

• Conveyor Speed: 0.24 m/s (45 ft/min) Forward

• Conveyor Height: 750 mm (29.5”)

• Maximum Conveyor Capacity: 165 kg (363 lbs) Evenly Distributed Load

• System Noise: < 45 dB

• Radiation Safety (Leakage): Less than 0.1 mR/hr (1.0 μSv/hr)

• Film Safety: Guaranteed ISO 1600 (33 DIN)

• Standard Software Functions: Density Threshold Alarm (DTA), Z-scan, C-scan, S-scan, bidirectional scanning, baggage counter, day/time display, recall historical image, multi-language operation, start-up self-diagnostics.

• Application Areas: Airports, seaports, customs facilities, transportation hubs, logistics centers, mass transit networks, and commercial building checkpoints.

Conclusion

For mid-tier screening facilities and security checkpoints in Bangladesh, handling steady volumes of diverse baggage is a critical requirement. Fortunately, the  HP-SE7555C X-Ray Inspection System addresses these needs perfectly. It merges a versatile 755 mm × 555 mm tunnel with a sophisticated dual-energy detection platform.

Thus, its switchable 7-color material discrimination assists operators in identifying suspicious or prohibited items easily. This is highly beneficial for local transportation hubs, customs checkpoints, and busy commercial distribution centers.

In addition, it features a 100% duty cycle and whisper-quiet operations under 45 dB. These automated density alerts streamline operator workflows and cut down scanning bottlenecks. Therefore, the Safeagle HP-SE7555C serves as a practical, highly efficient, and reliable X-ray inspection asset for any infrastructure in Bangladesh.

Get instant stock availability and the best price for the Safeagle HP-SE7555C X-Ray Inspection System in Bangladesh. Contact us today for official quotations, bulk pricing, and technical support.
