Intelligent High Density Managed Rack PDU Price in Bangladesh

Description

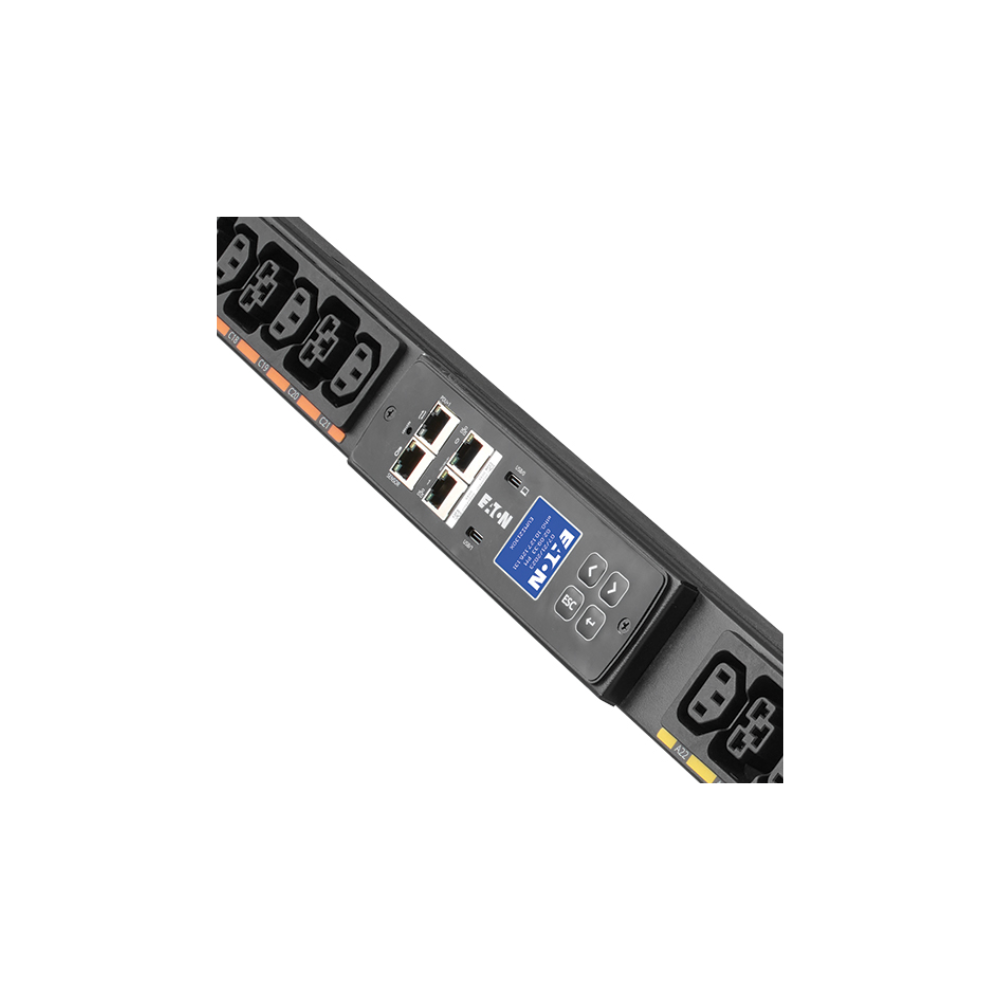

Product Name: Intelligent High Density Managed Rack PDU Price in Bangladesh

Brand: Eaton

Product Overview

The Intelligent High Density Managed Rack PDU is specified for supply and delivery of fully managed intelligent rack Power Distribution Units (PDUs) with outlet-level monitoring and control, hot-swappable network management module, and daisy-chain IP aggregation for high-availability data center applications. Furthermore, it is specified with a quantity of 02 Units. Moreover, this system includes a 0U Vertical, High-Density Managed Intelligent Rack PDU featuring remote power monitoring, outlet-level metering, and remote outlet control.

Key Features

• Type & Technology: The unit features a 0U Vertical, High-Density Managed Intelligent Rack PDU. Furthermore, it utilizes intelligent rack PDU technology with remote power monitoring, outlet-level metering, remote outlet control, and network management capabilities.

• Electrical Rating: It operates with an input voltage of 200–240V AC, 3-Phase, and an input connector of IEC 60309 (32A/60A depending on manufacturer model). Moreover, it supports a load capacity of 8.6–10 kVA or higher.

• Outlet Configuration & Protection: It features 36 IEC outlets in a mixed C13 and C19 configuration. Additionally, it includes color-coded circuit breakers for branch circuit protection and load balancing.

• Monitoring & Control: It provides outlet-level and feed-level metering with 1% billing-grade accuracy, remote ON/OFF and reboot control, sequential outlet startup, an advanced LCD display with menu-driven configuration, and environmental sensor ports for temperature and humidity monitoring.

Technical Specifications

• Item Name: Intelligent High Density Managed Rack PDU

• Model: EMACFL36JA6A6B2ePDU G3

• Quantity: 02 Units

• Network Management: It supports SNMP, Web, Telnet, and SSH for remote monitoring and management. Furthermore, it supports daisy-chain networking of up to 8 PDUs using a single IP address.

• Standards Compliance: UL, CE, FCC Class A, RoHS, DQS, IQNET, ISO 9001:2015, ISO 50001, ISO 22301, IATF 16949, or equivalent applicable international standards.

• Supplied Accessories: It includes a mounting kit, input/output cables, user manual, environmental sensor interface (where applicable), and all accessories required for complete installation and commissioning.

• Mandatory Requirements: The unit must feature exactly 36 IEC outlets (C13 + C19 mix), with other counts unacceptable. Furthermore, it must provide 1% billing-grade accuracy per outlet, with lower accuracy unacceptable. Moreover, it must support SNMP, Web, Telnet, and SSH simultaneously (omission not acceptable). Additionally, it must support up to 8 PDUs sharing one IP address, include an advanced LCD pixel display with menu-driven setup, and feature sensor ports for temperature/humidity. Finally, it must be UL, CE, FCC Class A, and RoHS certified simultaneously, support remote ON/OFF, reboot, and sequential startup, and include color-coded circuit breakers for load balancing.

Compliance and Support Details

• Performance Features: It provides intelligent outlet-level power monitoring and control, high-accuracy energy metering, centralized remote management, enhanced power availability, optimized rack-space utilization, environmental monitoring, and reliable operation for mission-critical IT infrastructure.

• Warranty & Service Support: The bidder shall provide 3 Years Comprehensive Service Support with Warranty, including free spare parts and installation assistance.

Conclusion

In conclusion, the Intelligent High Density Managed Rack PDU system provides fully managed power distribution with outlet-level monitoring, high-accuracy energy metering, and enterprise network management for high-availability data centers.
