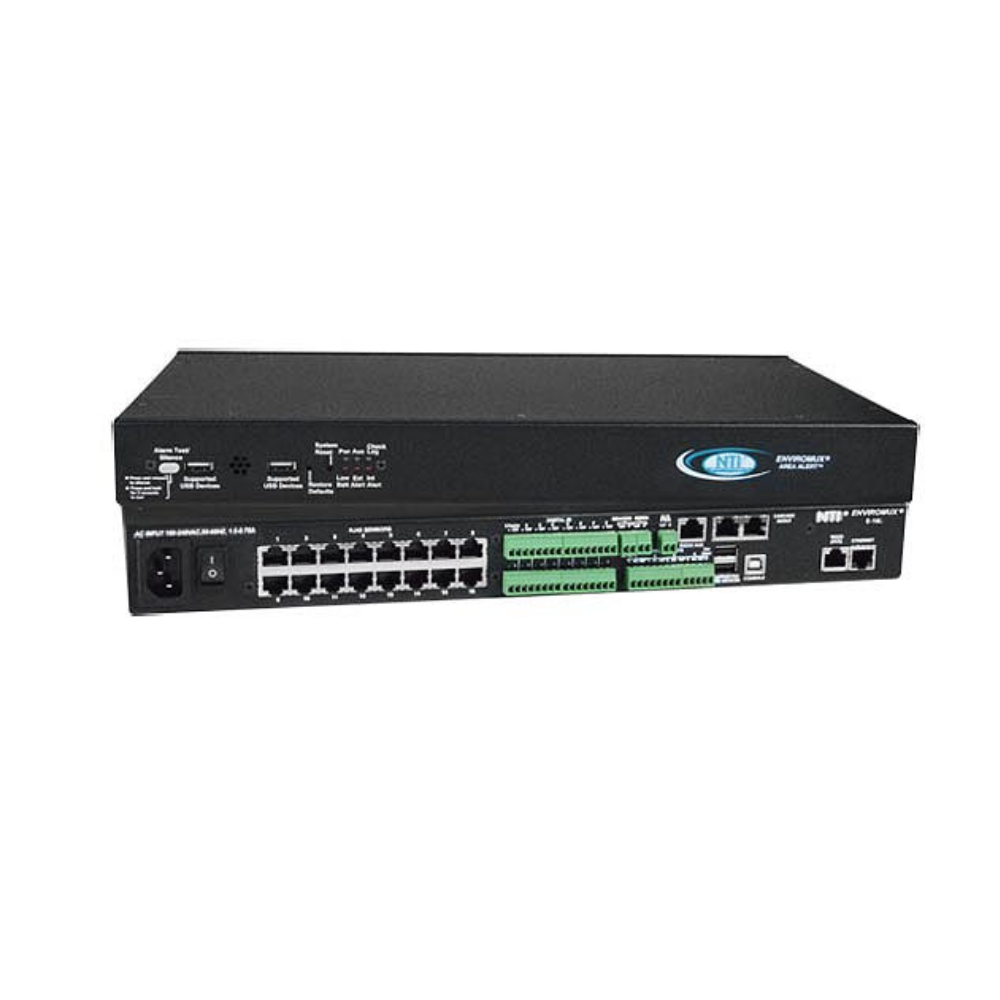

Large Enterprise Environment Monitoring System (Dual AC) – E-16DDP

Description

Product Name: Large Enterprise Environment Monitoring System (Dual AC) – E-16DDP

Manufacturer: NTI (Network Technologies Inc)

Product Overview

The ENVIROMUX® E-16DDP is an enterprise-grade environment monitoring system (EMS) designed to monitor critical conditions such as temperature, humidity, liquid water presence, power, intrusion, and smoke. When a sensor reading deviates from a user-defined threshold, the system provides immediate notifications via email, LEDs, alarm beacons, sirens, web pages, SNMP, voice calls, or SMS. Featuring dual power inputs, the unit automatically switches to a second power source without interruption if the primary source fails, providing high-availability monitoring for mission-critical infrastructure.

Key Features

• Integrated Sensing: Includes three internal sensors for temperature, humidity, and power monitoring, with support for up to 16 external sensors, 8 digital input sensors, and 4 output relays.

• Dual Power Reliability: Features dual power inputs. If the first power source fails, the unit switches to the second source seamlessly before utilizing the internal battery backup.

• Extensive Alerting: Capable of sending alerts to 17 email addresses, generating SNMP traps with unique OIDs, and supporting SMS alerts via external USB modem.

• Scalability: Supports a cascaded configuration of up to 5 systems (1 master, 4 slaves) via RS485, allowing you to manage all units through a single web interface.

• Advanced Security & Protocols: Supports HTTPS, SNMP V3, SSHv2, TLS v1.2, and XOAUTH2 for secure authentication. Provides HTTP REST API for data polling in JSON format.

• Comprehensive Connectivity: Equipped with Ethernet, USB ports, serial ports (RS232/AUX), and dedicated ports for beacons, sirens, and auxiliary power.

Technical Specifications

• Power Input: Dual AC inputs (100 to 240 VAC, 50/60 Hz) via IEC connectors; Power consumption: 35 W.

• Digital Inputs/Outputs: 8 dry contact input pairs; 4 potential-free relay switch contacts (Max load: 0.5 A @ 100 VAC, 1 A @ 30 VDC, 0.5 A @ 48 VDC).

• Interfaces: 16 x RJ45 sensor ports, 1 x 10/100 Base-T Ethernet port, 4 x USB Type A, 1 x USB Type B console, 1 x RJ45 serial (DCS), 1 x RJ45 AUX serial.

• Internal Sensors:

  • Temperature: 32 to 104°F (0 to 40°C); Accuracy: ±0.4°C (5 to 40°C).

  • Humidity: 20% to 80% RH; Accuracy: ±3% RH (at 25°C).

  • Power: Mains (0 to 255 VAC) and battery monitoring.

• Backup: Internal rechargeable sealed lead-acid battery (1-hour backup).

• Dimensions: 16.19″ x 10.01″ x 1.75″ (without rackmount); 19″ x 10.01″ x 1.75″ (with rackmount).

• Operating Temperature: 32 to 104°F (0 to 40°C).

• Storage Temperature: -22 to 140°F (-30 to 60°C).

• Humidity: 5% to 90% non-condensing RH.

• Reliability: MTBF of 107,046 hours.

• Regulatory & Warranty: CE, RoHS, TAA compliant; 2-year warranty.
