Kentec Syncro View K67000M1 Repeater Panel Price in BD

Description

Product Name: Kentec Syncro View K67000M1 Repeater Panel Price in BD

Product Overview

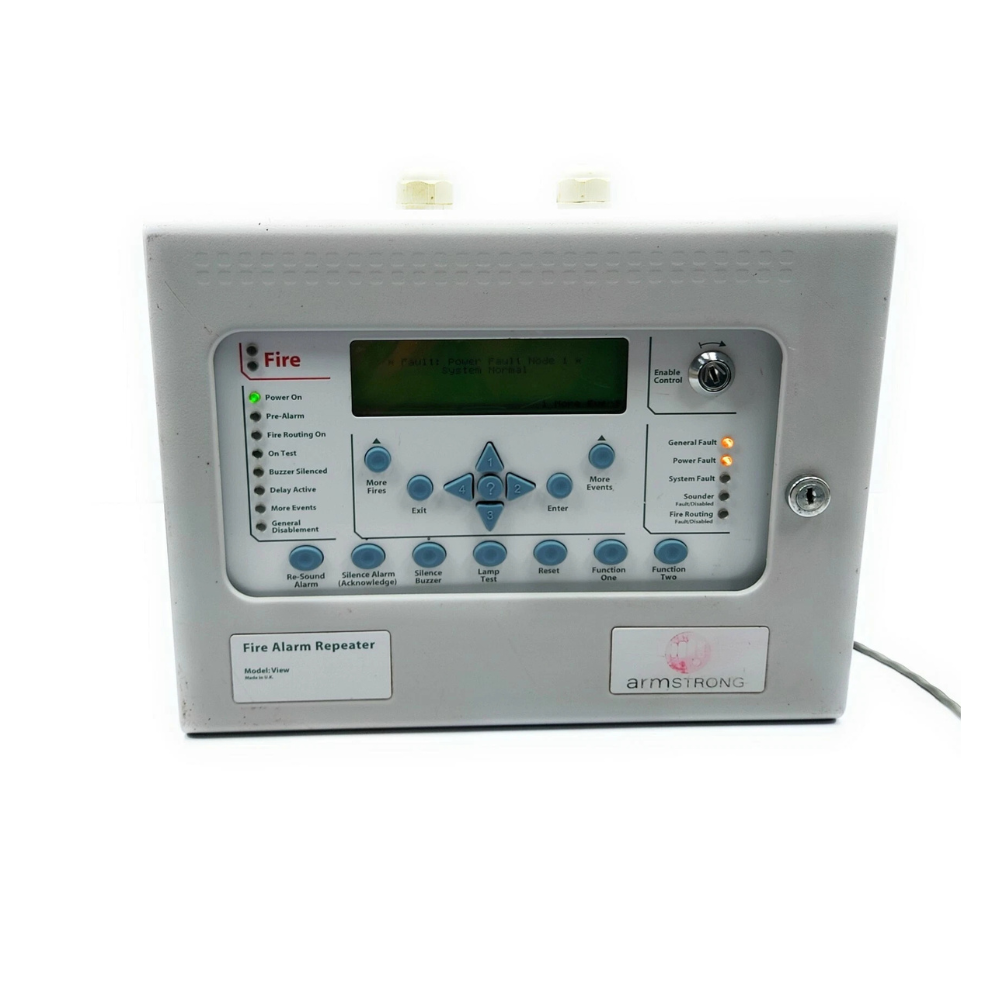

The Kentec Syncro View K67000M1 (Model: 095255-2-1 / K67000M1) is an active local LCD fire alarm repeater panel engineered to replicate status indications and controls of Kentec Syncro and Syncro AS addressable fire control panels. Featuring a keyless enclosure (no-key model), it provides remote display monitoring and control capabilities across commercial, institutional, and industrial facilities.

Specifications & Features

• Brand & Model: Kentec Electronics (MPN: K67000M1 / Model: 095255-2-1)

• Product Series: Syncro View Local Repeater Panel

• Display Interface: Graphic LCD display ($240 \times 64\text{ pixels}$) showing system status, events, and zone information.

• System Capacity: Connects up to 15 Syncro View repeater units to a single main addressable fire alarm panel.

• Input Operating Voltage: $21\text{ to }30\text{ VDC}$ ($24\text{ VDC}$ powered version; requires external power supply).

• Communication Link: 2-core RS485 serial data connection (supports cabling distances up to $1200\text{ metres}$).

• Addressing Mechanism: Onboard 4-way DIL switch for binary address selection.

• Audible & Visual Alerting: High-brightness status LEDs and internal buzzer for audible notification.

• Physical Enclosure: Epoxy powder-coated mild steel casing with IP30 ingress protection rating.

• Dimensions & Weight: $330\text{ mm (W)} \times 255\text{ mm (H)} \times 90\text{ mm (D)}$; Weight: Maximum $5.0\text{ kg}$.

• Control Configuration: No-keyswitch configuration.

Technical Specifications

• Operating Temperature Limits: $-5^\circ\text{C to }+40^\circ\text{C}$.

• Operating Humidity Limits: Up to $95\%$ RH (non-condensing).

• Power Connection Requirements: Powered via external $24\text{ VDC}$ auxiliary output from the main panel or an external PSU.

System Compatibility

• System Compatibility: For use with compatible Kentec Syncro and Syncro AS fire alarm control panels.

Technical Notice

Installation & Wiring Guidelines: The K67000M1 requires a shielded 2-core fire-resistant cable for the RS485 serial data connection and separate power cores for the $24\text{ VDC}$ supply feed. Ensure the 4-way DIL address switch is properly configured prior to powering the panel. A data termination jumper must be fitted across the data terminals on the final repeater panel connected to the serial bus.

Conclusion

The Kentec Syncro View K67000M1 repeater panel extends display monitoring and system control for Syncro addressable fire alarm networks. Therefore, it serves system integrators requiring a remote LCD annunciator panel for commercial facilities.
