Safeway AT120100B Large Cargo X-Ray Scanner Price in BD | Warehouse Inspection Solutions

Description

Product Name: Safeway AT120100B Large Cargo X-Ray Scanner Price in BD | Warehouse Inspection Solutions

Manufacturer: Safeway System

Product Description

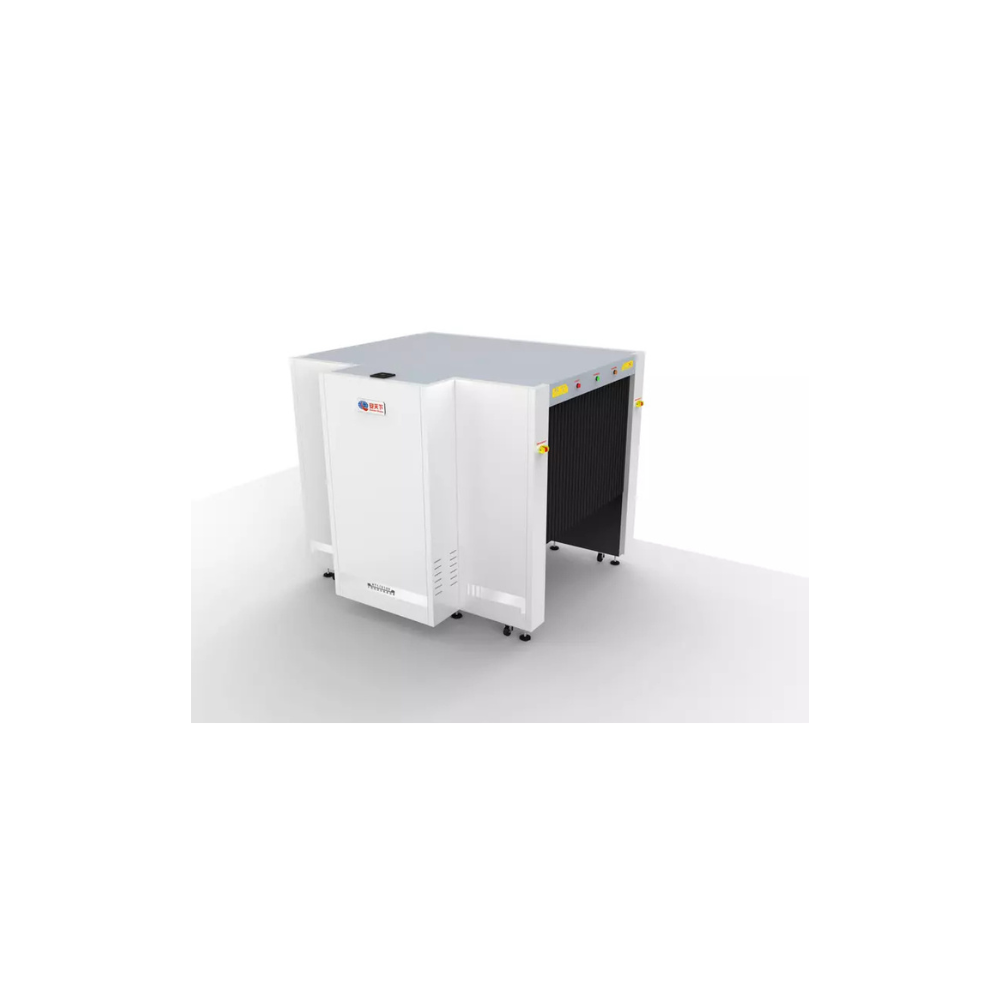

The Safeway AT120100B Large Cargo X-Ray Scanner is a heavy-duty security inspection system engineered with a spacious 120 cm x 100 cm tunnel size for screening large baggage, express parcels, courier warehouse cargo, and logistics freight without unpacking. Powered by an embedded Linux operating system with 1GB RAM, it features a robust 160 kV X-ray generator and advanced digital processing tools to deliver high penetration and precise material classification. Widely utilized in courier warehouses, express customs, airports, and transport logistics hubs across Bangladesh, the AT120100B ensures reliable high-volume cargo screening and efficient threat detection.

Key Features

• Spacious Cargo Tunnel: Features a large 120 cm x 100 cm tunnel design specifically optimized for inspecting oversized luggage, bulk courier packages, and freight pallets.

• Advanced Threat Detection: Supports material classification together with organic and inorganic image enhancement for improved inspection.

• Massive Image Storage: Supports storage of up to 500,000 scanned inspection images for comprehensive archiving and retrieval.

• Comprehensive Image Processing: Offers advanced diagnostic tools including local enhancement, high/low penetration modes, color/black-and-white adjustment, and suspicious object marking.

• Robust Self-Diagnosis & Fault Tracking: Features automated power-on self-testing with fault detection displays for emergency stops, side panel status, and acquisition system performance.

• TIP (Threat Image Projection) Management: Supports customizable insertion of fictional threat items to monitor operator vigilance and generate performance evaluation reports.

• User Authority Management: Multi-level user login security with customizable operation permissions, detailed activity logs, and bilingual system support.

Technical Specifications

• Brand: Safeway System

• Model: AT120100B

• Scanner Type: Large Cargo & Baggage X-Ray Inspection System

• Tunnel Size: 120*100 cm

• Inspection Technology: Single-View X-Ray Imaging (1 Generator)

• X-Ray Generator Anode Voltage: 160 kV (Sealed oil cooling)

• Wire Resolution: 38 AWG

• Penetration Resolution: 32 AWG

• Spatial Resolution: Vertical 1.0 mm, Horizontal 1.0 mm

• Steel Penetration: 34 mm

• Conveyor Speed: Around 0.4 m/s

• Single Inspection Dose: ≤ 4.5 µSv (µGy)

• Leakage Dose: < 1 µSv/h (µGy/h)

• Leakage Current: ≤ 5.0 mA

• Film Safety: Compliant with ASA/ISO 1600 Film Safety Standards

• Noise Level: No more than 55 dB

• Maximum Power Consumption: 0.4 kW

• Operating System: Linux (1GB RAM)

• Display Monitor: 17-inch LCD monitor with a resolution of 1280 x 1024

• Working Power: AC 220V (+10% to -15%), 50 Hz ±3 Hz

• Unit Weight: 890 kg

• Working Environment: 5°C to 40°C, 0% to 90% relative humidity

Applications

• Courier Warehouses and Express Logistics Hubs

• Express Customs and Port Authority Checkpoints

• Airport Baggage and Cargo Security Terminals

• Government Agencies and Postal Sorting Facilities

• Industrial Factories and Freight Distribution Centers

• Prisons, Courts, and Secure Institutional Warehouses

Conclusion

The Safeway AT120100B Large Cargo X-Ray Scanner combines a wide inspection tunnel, reliable 160kV X-ray imaging, and robust Linux-based software management to deliver exceptional cargo security screening. Designed for high-volume logistics and freight checkpoints, it supports efficient security inspection and reliable package screening across commercial and government facilities in Bangladesh.
