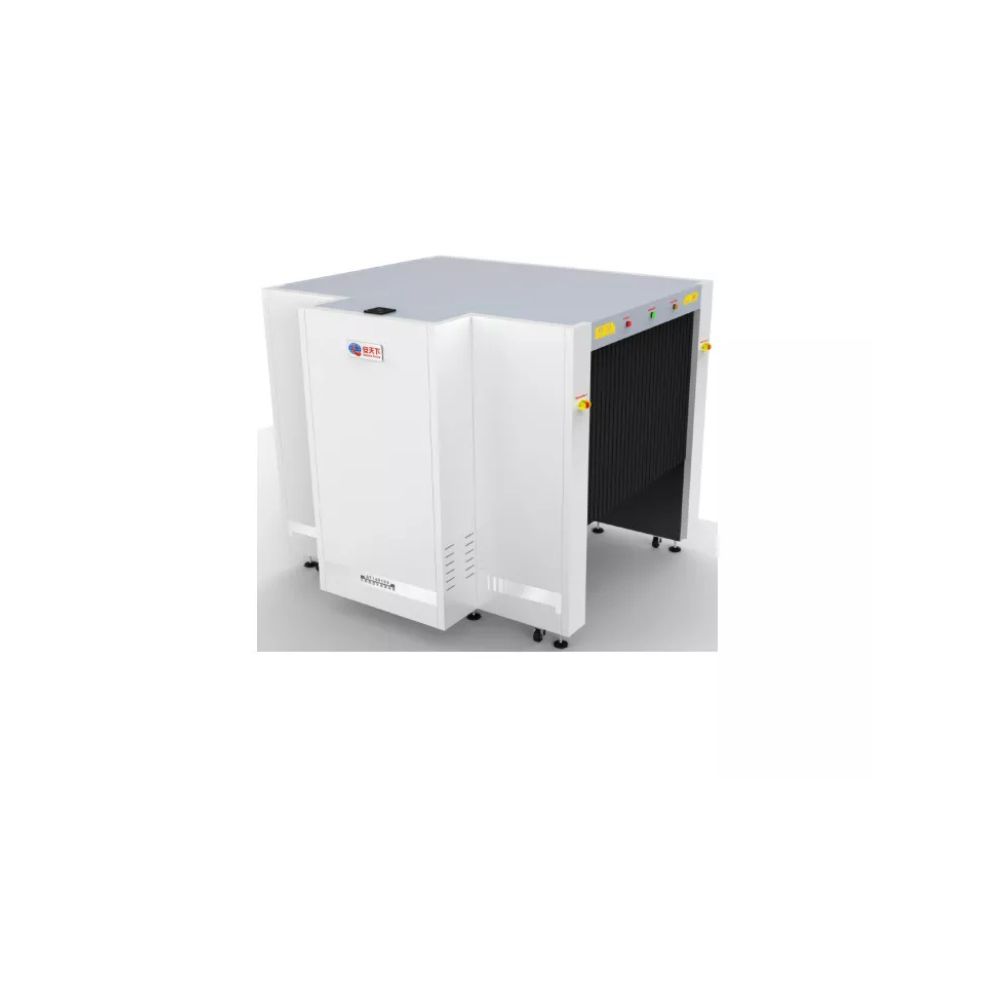

Safeway AT140100B X-Ray Cargo Inspection Scanner Price in Bangladesh | 140×100 cm Security Scanner

Description

Product Name: Safeway AT140100B X-Ray Cargo Inspection Scanner Price in Bangladesh | 140×100 cm Security Scanner

Manufacturer: Safeway System

Product Description

The Safeway AT140100B X-Ray Cargo Inspection Scanner is a heavy-duty, high-performance security inspection system featuring an expansive 140×100 cm tunnel size. Engineered for comprehensive scanning of oversized cargo, courier packages, express warehouse shipments, and airport baggage without manual unpacking, it is powered by a reliable Linux operating system with an IMX6 mainboard and a 17-inch LCD display with 1280 × 1024 resolution. Suitable for airports, customs facilities, logistics hubs, courier warehouses, and transport terminals, the AT140100B ensures reliable steel penetration capability, precise threat identification, and massive image storage capacity.

Key Features

• Large Tunnel Capacity: Features a spacious 140×100 cm tunnel opening designed specifically for large cargo pallets, oversized baggage, and freight parcels.

• Stable Linux Processing Platform: Operates on an embedded Linux system with an IMX6 mainboard for secure, fast, and stable performance.

• Massive Image Storage: Automatically saves up to 500,000 inspected images with full file management, format export capabilities, and 30-image pullback recall.

• Advanced Image Enhancement Tools: Offers versatile processing options including color/black and white imaging, high/low penetration, organic/inorganic highlighting, edge enhancement, and zoom features.

• Comprehensive Diagnostic & TIP Management: Includes automated power-on self-checks, real-time curve monitoring, fault diagnosis, and complete Threat Image Projection (TIP) reporting and management tools.

Technical Specifications

• Brand: Safeway System

• Model: AT140100B

• Scanner Type: Large Tunnel X-Ray Cargo & Baggage Inspection System

• Tunnel Size: 140 cm (Width) × 100 cm (Height)

• X-Ray Generator Anode Voltage: 160 kV (Sealed oil cooling)

• Line Resolution: 38 AWG

• Penetration Resolution: 32 AWG

• Spatial Resolution: Vertical 1.0 mm, Horizontal 1.0 mm

• Steel Penetration Force: 34 mm

• Conveyor Speed: About 0.4 m/s

• Single Inspection Dose: ≤ 4.5 µSv (µGy)

•  Leakage Dose: < 1 µSv/h (µGy/h)

• Noise Level: No more than 55 dB

• Maximum Power Consumption: 0.4 kW

• Computer Configuration: Linux operating system with IMX6 mainboard and 1G RAM

• Display Monitor: 17-inch LCD display with 1280 × 1024 resolution

• Console & Keyboard: Single operation console with dedicated security keyboard

• Working Power: AC 220V (+10% to -15%), 50 Hz ±3 Hz

• Unit Weight: 890 kg

• Working Environment: 5°C to 40°C, 0% to 90% relative humidity

• Film Safety: Safe for ASA/ISO 1600 standard film

Applications

• Express Warehouses and Logistics Hubs

• Customs Inspection and Freight Terminals

• Airports, Railway Stations, and Transport Terminals

• Government Agencies, Courts, and Prisons

• Factories, Industrial Plants, and Secure Warehouses

• Exhibition Halls, Stadiums, and Large Public Venues

Conclusion

The Safeway AT140100B X-Ray Cargo Inspection Scanner provides robust, large-format security screening with 34 mm steel penetration capability and an advanced Linux processing core. Built to handle heavy workloads in demanding warehouse and customs environments, Built to handle heavy workloads in demanding warehouse and customs environments, it helps improve cargo security and operational efficiency.
