Safeway AT5030B X-Ray Baggage Scanner Supplier in Bangladesh | Dual Energy Security Solutions

Description

Product Name: Safeway AT5030B X-Ray Baggage Scanner Supplier in Bangladesh | Dual Energy Security Solutions

Manufacturer: Safeway System

Product Description

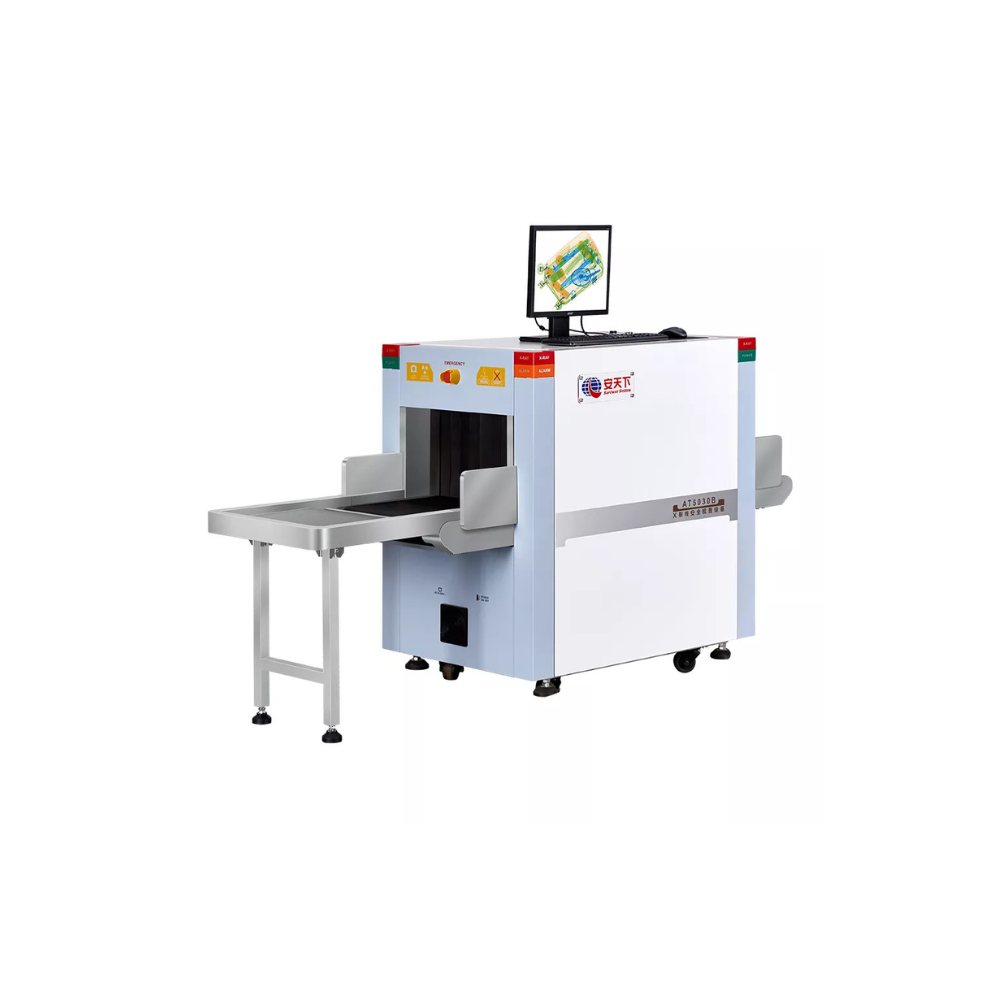

The Safeway AT5030B X-Ray Baggage Scanner is a high-quality dual energy security inspection system designed to penetrate and inspect briefcases, parcels, express mail, hand luggage, and small parcels without unpacking. Developed on a versatile Windows operating system platform, it integrates a powerful 140 kV X-ray generator, an Intel Core i3 computer with a 1T hard disk and 4G memory, and a high-resolution 21.5-inch LCD monitor. Widely deployed across government agencies, transport terminals, logistics hubs, courts, schools, and corporate facilities in Bangladesh, the AT5030B delivers reliable high-capacity parcel screening and dependable threat detection.

Key Features

• Dual Energy Inspection Platform: Powered by a Windows-based system (compatible with Windows XP, Win 7, and Win 10) featuring an Intel i3 CPU, 1T hard disk, and 4G memory for robust processing performance.

• Advanced Image Processing: Supports color/black and white imaging, local increase, high/low penetration enhancement, super increase, organic/inorganic highlighting, inverse color, brightening, darkening, gray sweeping, zooming, and edge enhancement processing.

• Massive Image Storage: Automatically stores up to 50,000 checked inspection images with support for file querying, opening, exporting in 6 formats (XF, PNG, BMP, JPEG, TIFF, GIF), printing, and recalling the 30 preceding images.

• Comprehensive Diagnostic Tools: Includes automated fault self-checking, real-time device diagnostics for key components like detectors, motor control, infrared sensors, and special keyboards.

• TIP (Threat Image Projection) Management: Supports customizable insertion of virtual threat items with adjustable injection intervals, floating ranges, and performance evaluation logging.

• Operator Authority Management: Multi-level operator controls allowing account creation, deletion, group/password modifications, and exportable usage logs.

Technical Specifications

• Brand: Safeway System

• Model: AT5030B

• Scanner Type: Compact Dual Energy X-Ray Baggage & Parcel Inspection System

• Inspection Technology: Single-View X-Ray Imaging

• X-Ray Generator Anode Voltage: 140 kV (Sealed oil cooling)

• Wire Resolution: 40 AWG

• Penetration Resolution: 34 AWG

• Spatial Resolution: Vertical 1.0 mm, Horizontal 1.0 mm

• Steel Penetration: 38 mm

• Conveyor Speed: Around 0.2 m/s

• Conveyor Max Load: 100 kg

• Single Inspection Dose: ≤ 4.5 µSv (µGy)

• Boundary Leakage Dose: < 1 µSv/h (µGy/h)

• Film Safety: Compliant with ASA/ISO 1600 Film Safety Standards

• Noise Level: No more than 60 dB

• Maximum Power Consumption: 0.8 kW

• Computer Configuration: Intel i3 3.3GHz CPU, 1T Hard Disk, 4G Memory

• Display Monitor: 21.5-inch LCD monitor with a resolution of 1920×1080 pixels

• Working Power: AC 220V (+10% to -15%), 50 Hz ±3 Hz

• Unit Weight: 320 kg

• Working Environment: 5°C to 40°C, 0% to 90% relative humidity

Applications

• Government Agencies and Public Security Checkpoints

• Transportation Hubs, Railway Stations, and Terminals

• Logistics Warehouses and Express Mail Sorting Centers

• Courts, Procuratorates, Prisons, and Embassies

• Schools, Universities, Hospitals, and Gymnasiums

• Exhibition Halls, Shopping Malls, and Entertainment Venues

Conclusion

The Safeway AT5030B X-Ray Baggage Scanner combines a robust inspection platform, reliable 140kV dual-energy X-ray imaging, and flexible Windows-based management to deliver professional-grade security screening. Engineered for demanding access control points and high-traffic checkpoints, it guarantees efficient operations and uncompromised safety compliance across commercial and institutional facilities in Bangladesh.
